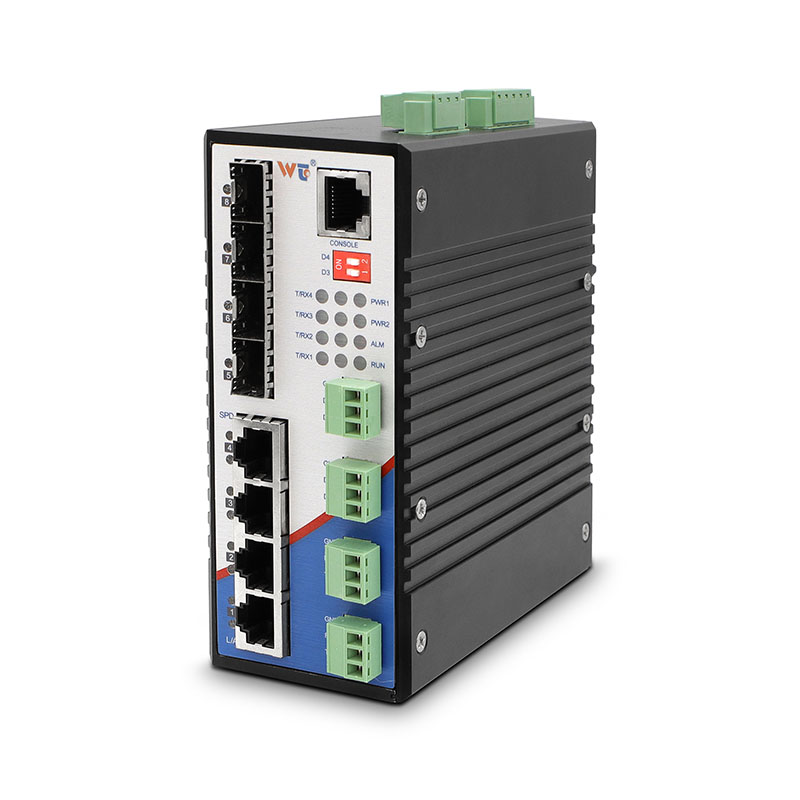

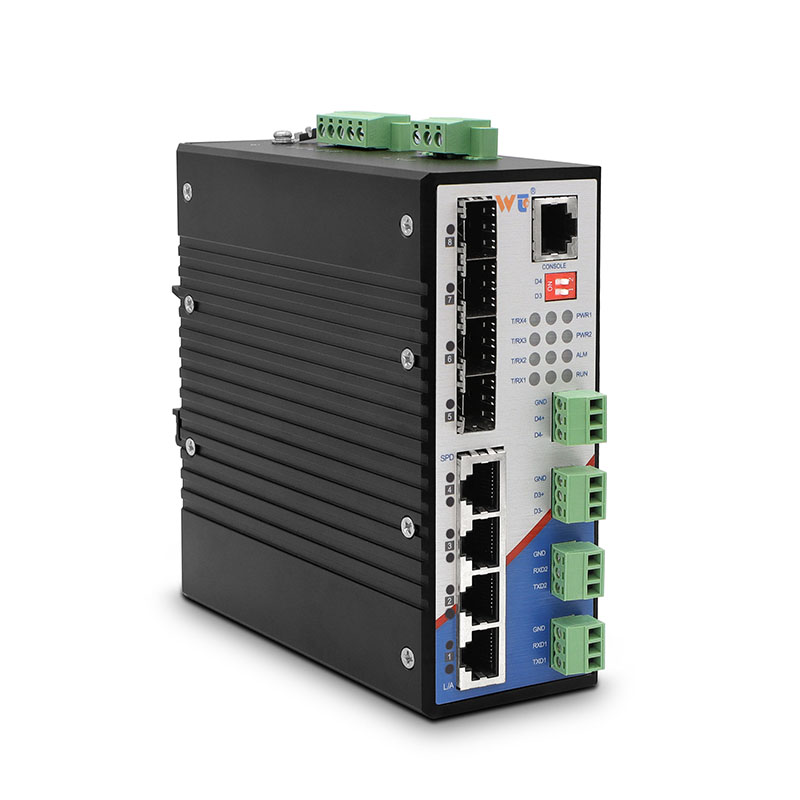

RS6000-4F4T-2DD2DS Mesh network automation switch

 Applicable standards

IEEE 802.3 10BaseT   IEEE 802.3u 100BaseT

IEEE 802.3x flow control

IEEE 802.1d-2004 STP protocol

IEEE 802.1w RSTP protocol

IEEE 802.1p Qos     IEEE 802.1q VLAN

IEEE 802.3ad

Protocols

IGMP Snooping,SNMPv1/v2c/v3,TFTP,NTP,SNTP, RMON, HTTP,HTTPS,SSH,Telnet,Syslog,LLDP,LACP,WT-Ring,STP,

RSTP,ERPS,EEE

Switching feature

Qos queue: 8 VLAN-ID: 1-4094

Back plane bandwidth: 1.6 Gbps List of MAC addresses: 8K

Message buffer size: 4Mbit

Port

Console port: RS-232 (port type: RJ45 slot)

Fiber port: 100Mbps (port type: SFP slot)

Copper port: 10/100Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.

LED indicator: PWR, ALM, RUN, Link/Act, SPD,T/RX(1,2,3,4)

 Communication parameter

Data bit: 5, 6, 7, and 8     Parity bit: none, odd, and even

Stop bit: 1, 2             Speed: 1200bps~115,200Kbps

Power source requirement

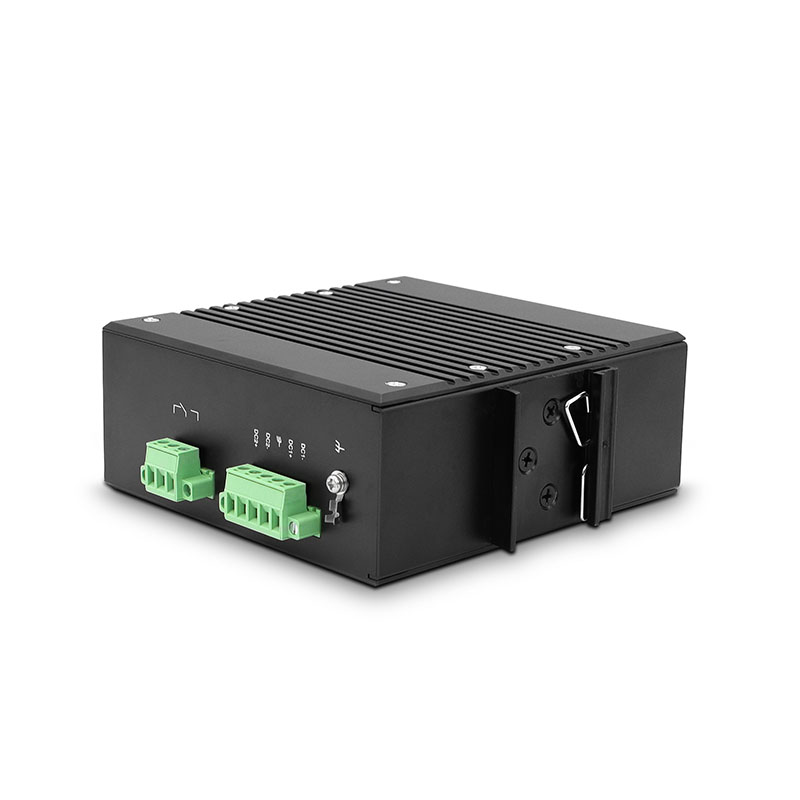

Input voltage: Supports dual power redundant, DC18-60V

Physical properties

Enclosure: Aluminum enclosure, IP40-rated protection

Size: 135mm*129mm*55mm

Weight: 850 g

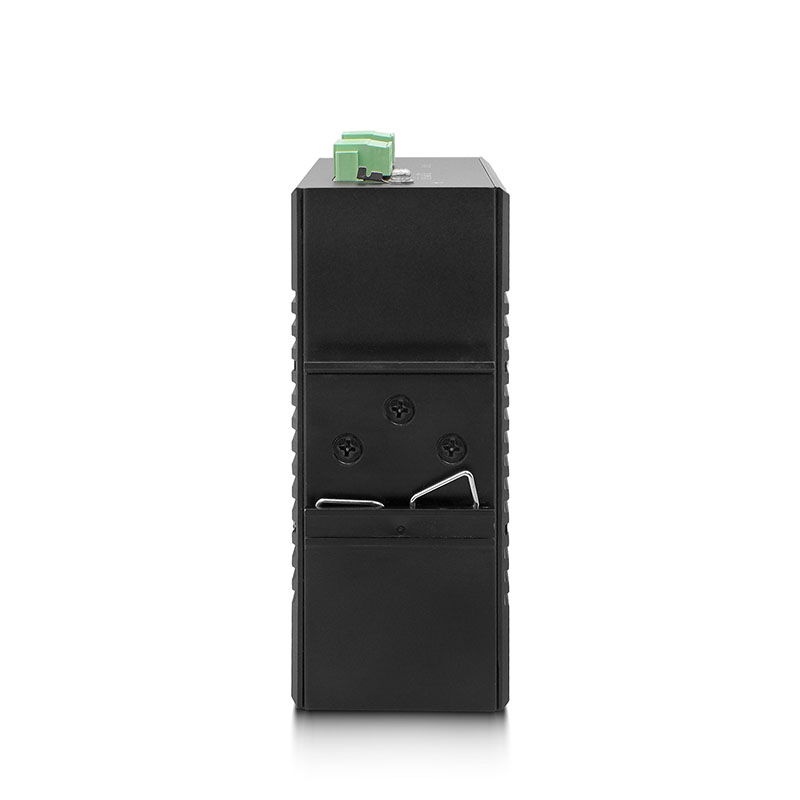

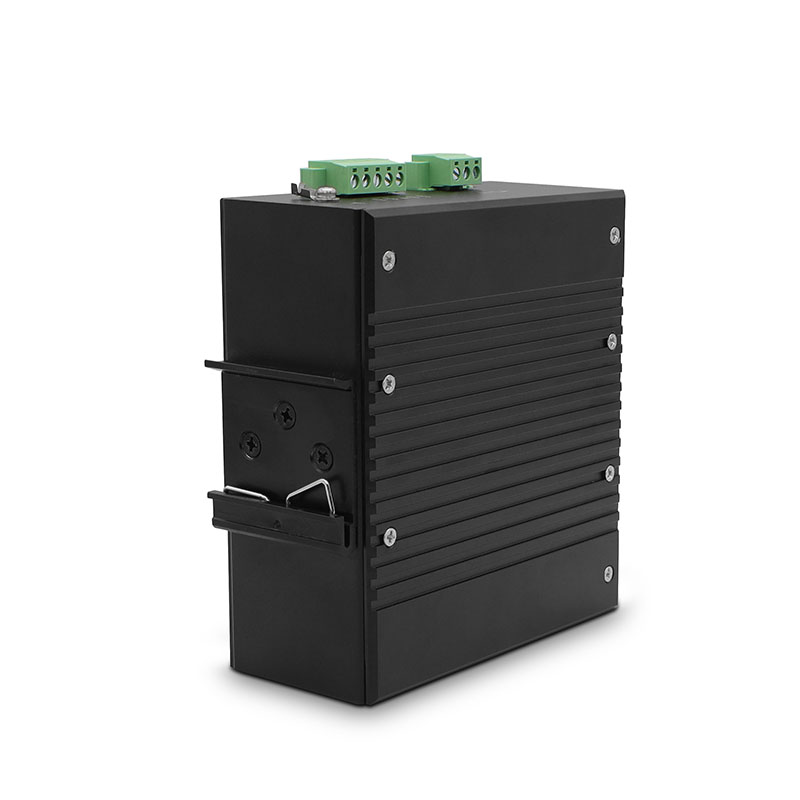

Mounting method: DIN rail

Environmental restrictions

Working temperature: -40 ~ 85°C (-40 ~ 185°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMI:

FCC Part 15/CISPR22?EN55022??Class A

EMS:

IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4,       IEC 61000-4-6 (CS) Level 3

Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32

MTBF (mean time between failures)

Time: 500000 h

Warranty

Quality assurance: 5 years
