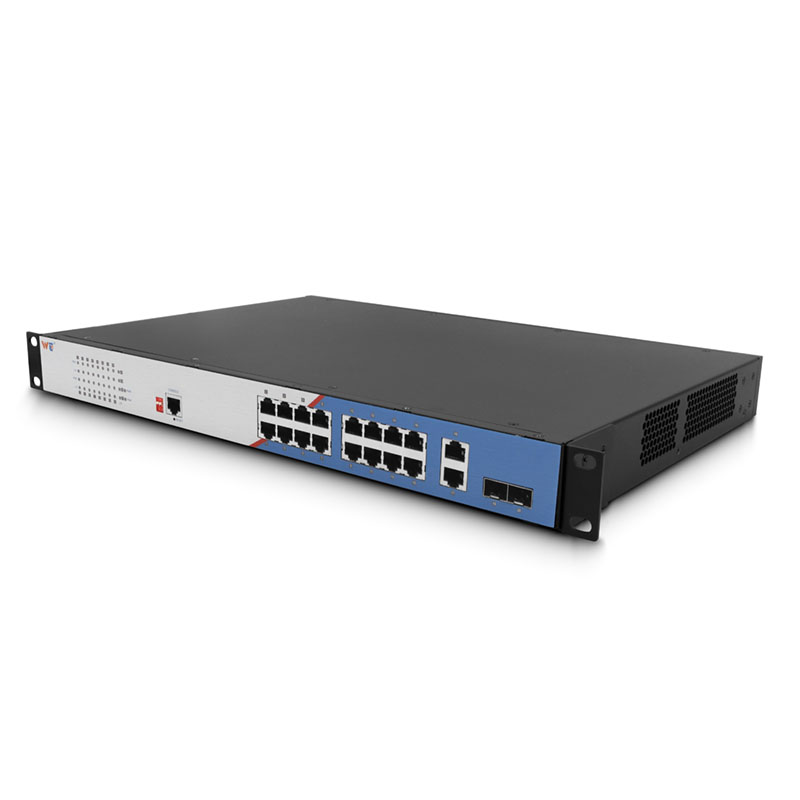

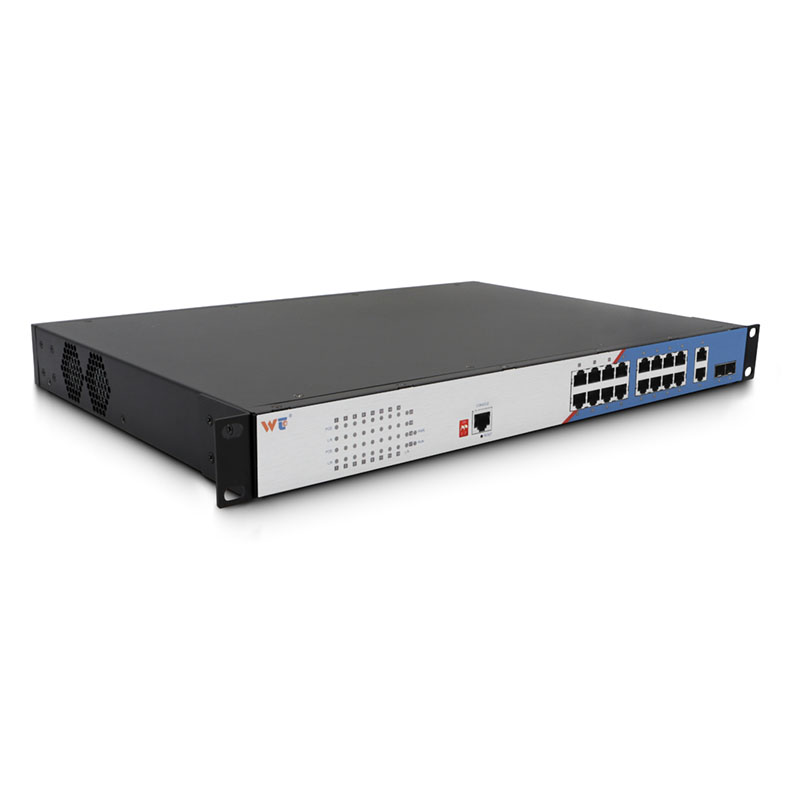

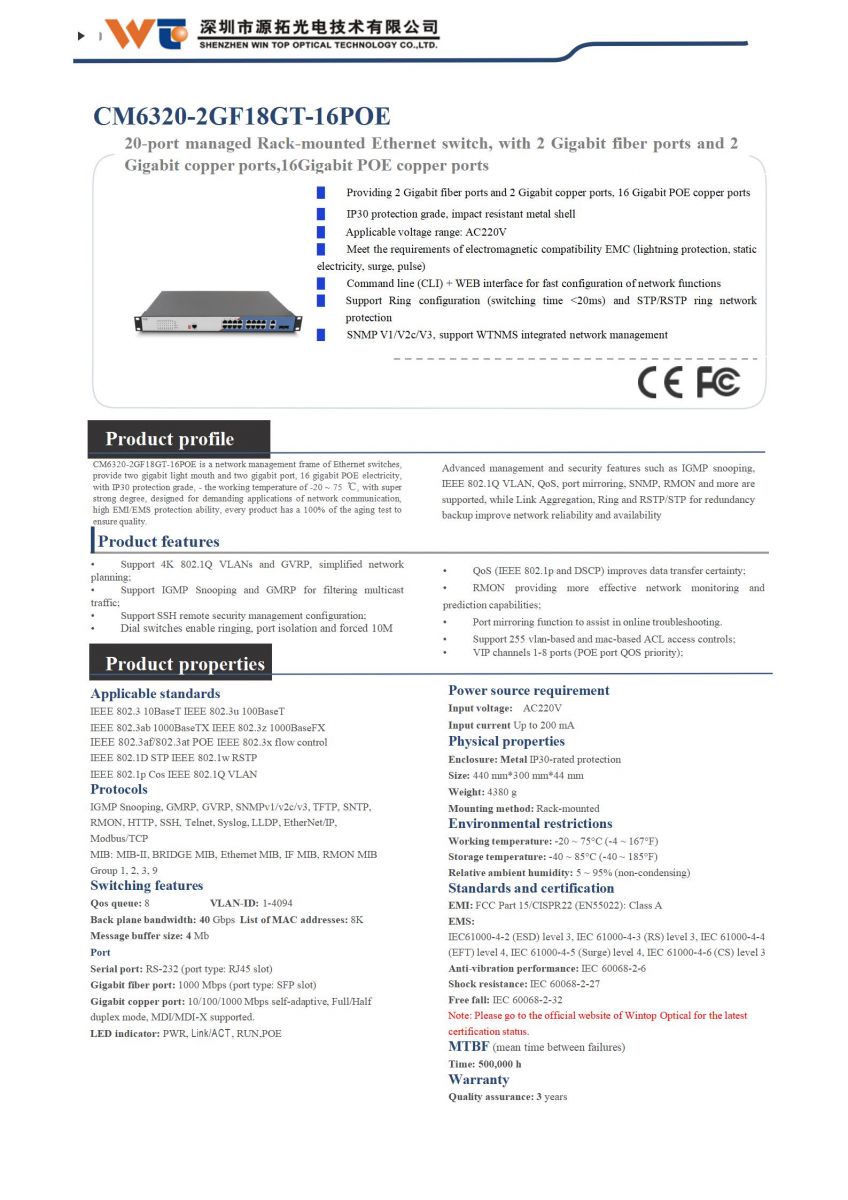

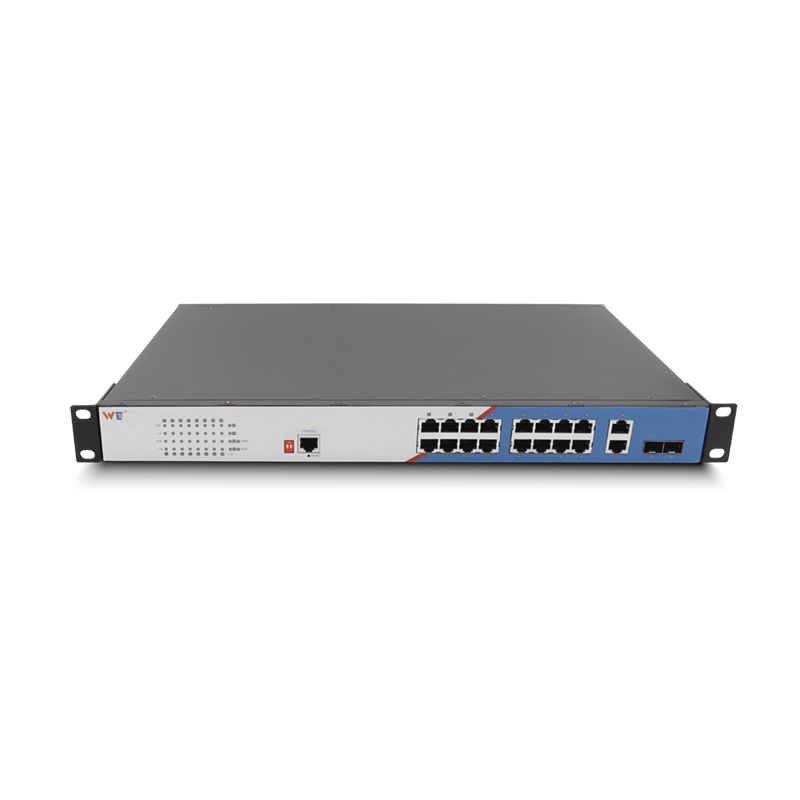

CM6320-2GF18GT-16POE Layer 2 Managed POE Switch
model: CM6320-2GF18GT-16POE
16x 10/100/1000BASE-T RJ45 Ports with 2x 1G SFP and 2x 1G RJ45 Uplinks,Single AC220V Power Supply with fan Max. Power Consumption support 260W single port support 30W.




Applicable standards
IEEE 802.3 10BaseT IEEE 802.3u 100BaseT
IEEE 802.3ab 1000BaseTX IEEE 802.3z 1000BaseFX
IEEE 802.3af/802.3at POE IEEE 802.3x flow control
IEEE 802.1D STP IEEE 802.1w RSTP
IEEE 802.1p Cos IEEE 802.1Q VLAN
Protocols
IGMP Snooping, GMRP, GVRP, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP, SSH, Telnet, Syslog, LLDP, EtherNet/IP, Modbus/TCP
MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9
Switching features
Qos queue: 8 VLAN-ID: 1-4094
Back plane bandwidth: 40 Gbps List of MAC addresses: 8K
Message buffer size: 4 Mb
Port
Serial port: RS-232 (port type: RJ45 slot)

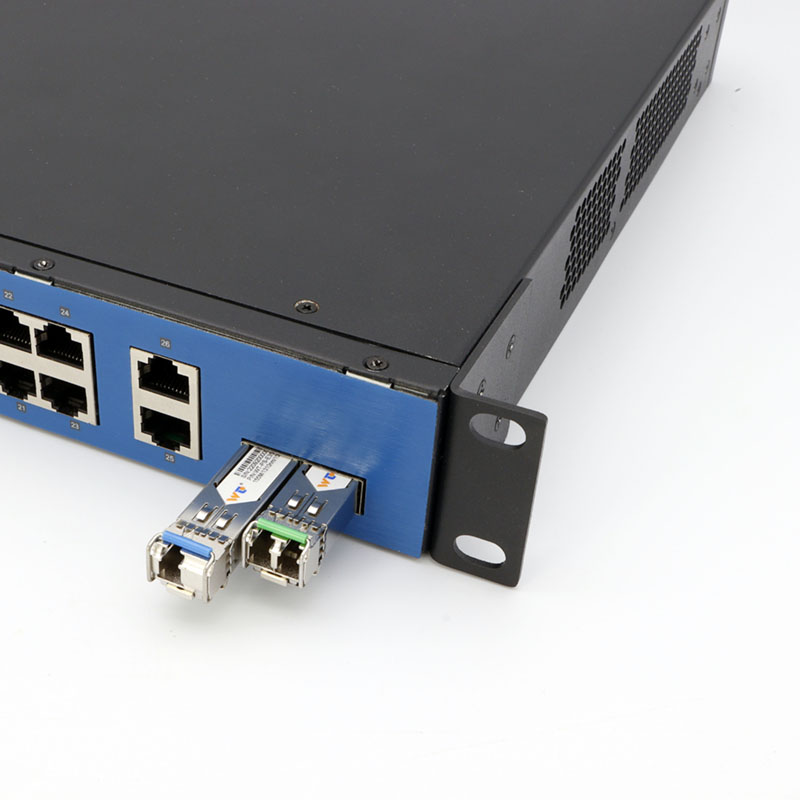

Gigabit fiber port: 1000 Mbps (port type: SFP slot)
Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.
LED indicator: PWR, Link/ACT, RUN,POE
Power source requirement

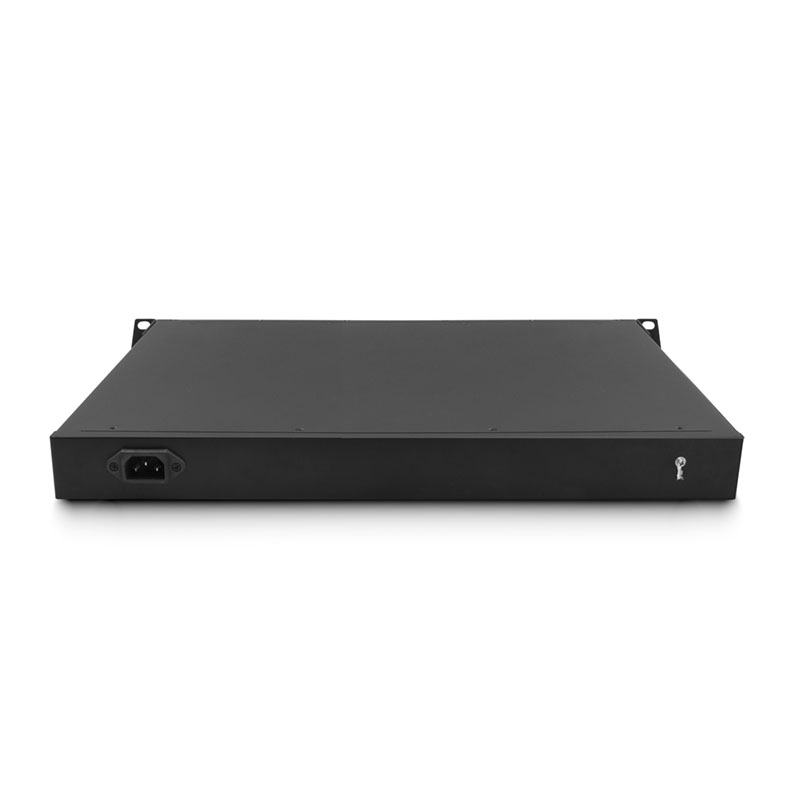

Input voltage: AC220V
Input current Up to 200 mA
Physical properties
Enclosure: Metal IP30-rated protection
Size: 440 mm*300 mm*44 mm
Weight: 4380 g
Mounting method: Rack-mounted
Environmental restrictions
Working temperature: -20 ~ 75°C (-4 ~ 167°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Relative ambient humidity: 5 ~ 95% (non-condensing)
Standards and certification
EMI: FCC Part 15/CISPR22 (EN55022): Class A
EMS:
IEC61000-4-2 (ESD) level 3, IEC 61000-4-3 (RS) level 3, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5 (Surge) level 4, IEC 61000-4-6 (CS) level 3
Anti-vibration performance: IEC 60068-2-6
Shock resistance: IEC 60068-2-27
Free fall: IEC 60068-2-32
Note: Please go to the official website of Wintop Optical for the latest certification status.
MTBF (mean time between failures)
Time: 500,000 h
Warranty
Quality assurance: 3 years
