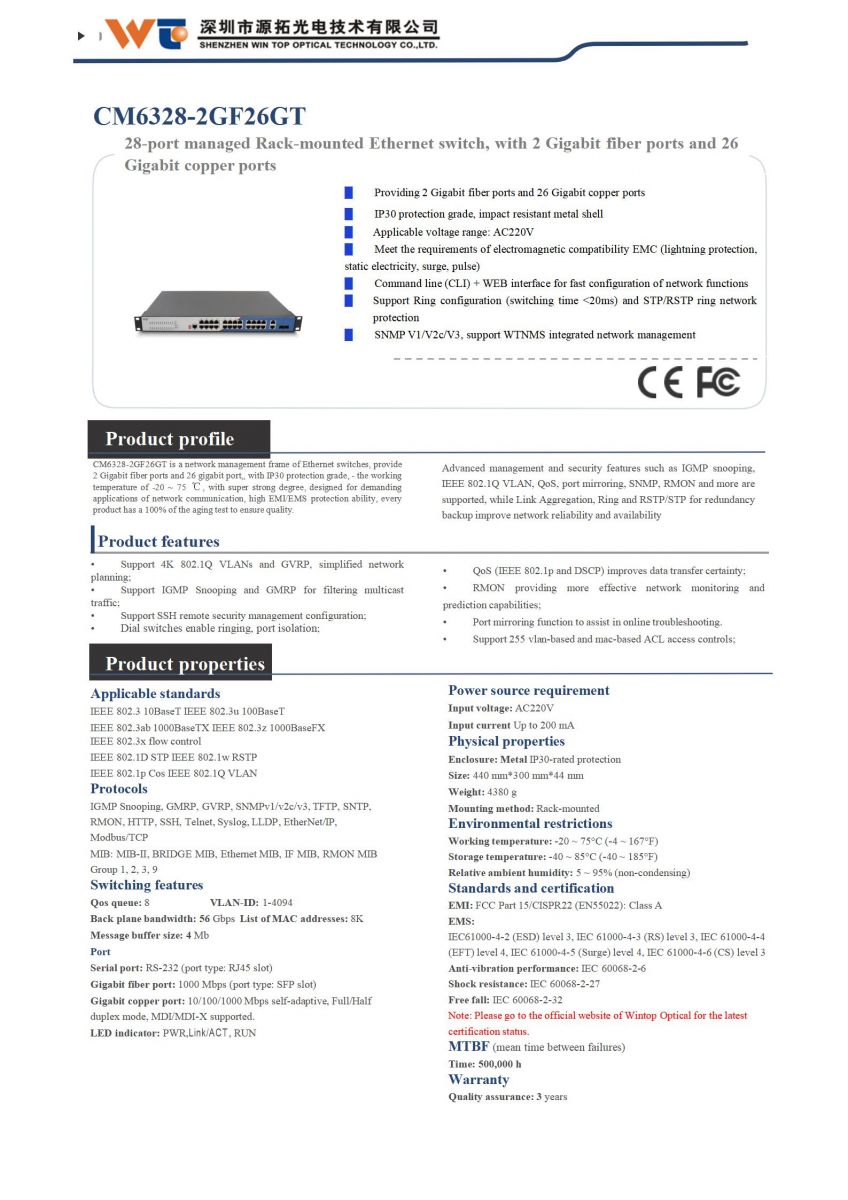

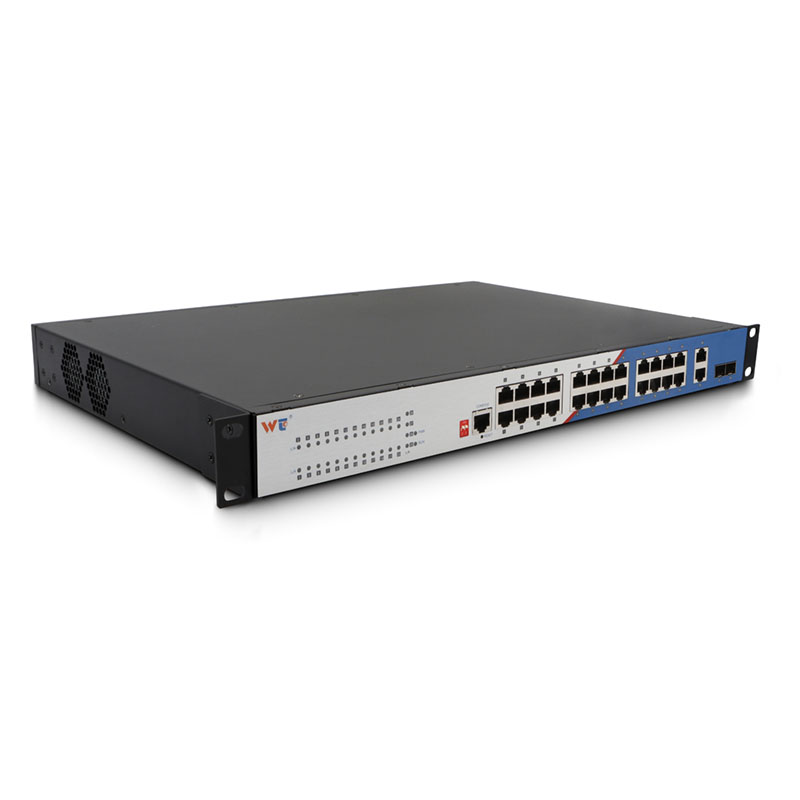

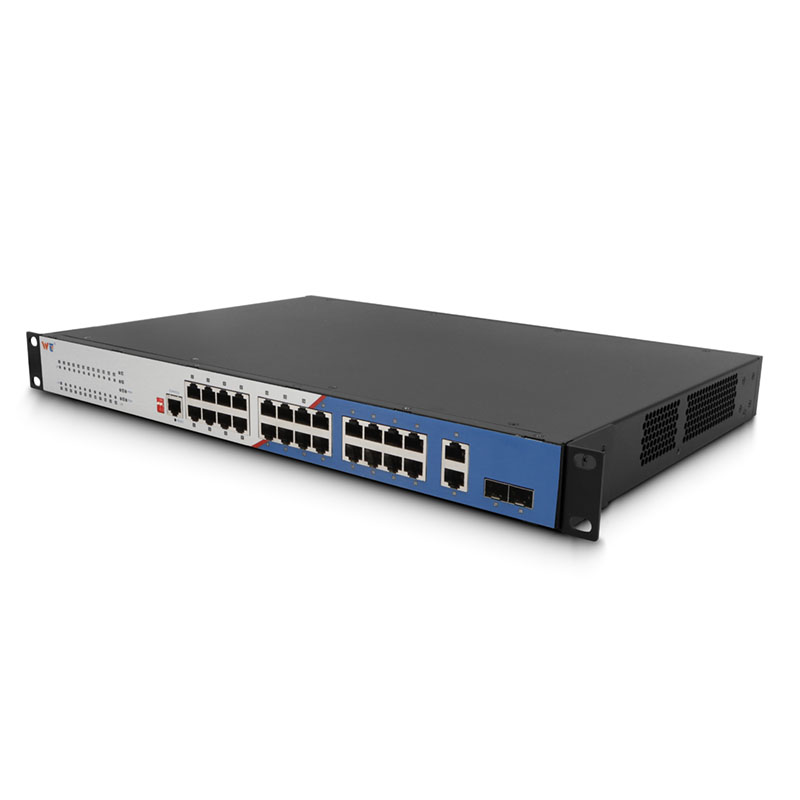

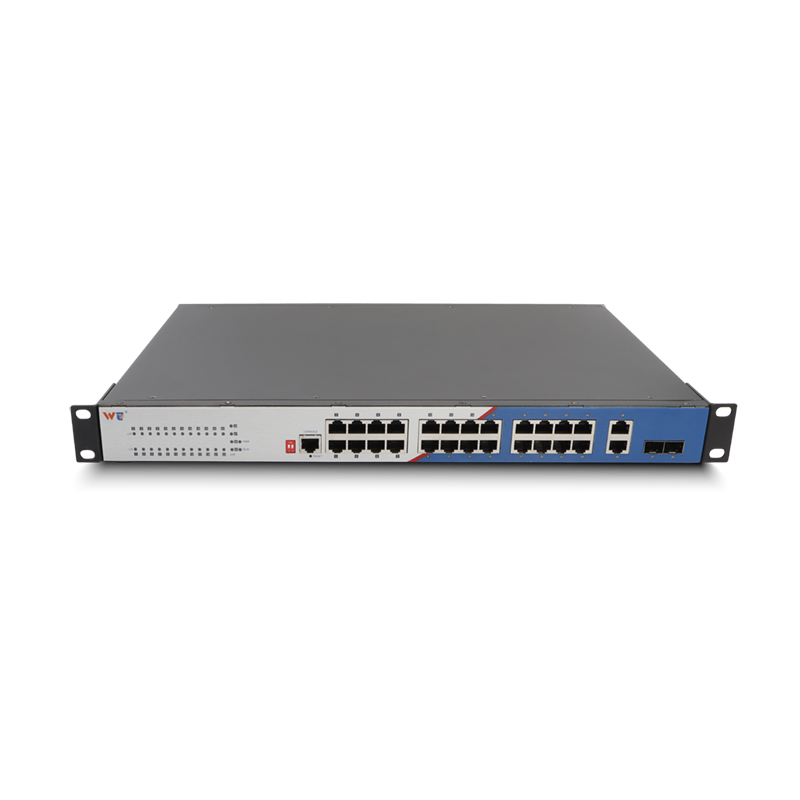

CM6328-2GF26GT Layer 2 Managed Switch

  Applicable standards

IEEE 802.3 10BaseT IEEE 802.3u 100BaseT

IEEE 802.3ab 1000BaseTX IEEE 802.3z 1000BaseFX

IEEE 802.3x flow control

IEEE 802.1D STP IEEE 802.1w RSTP

IEEE 802.1p Cos IEEE 802.1Q VLAN

Protocols

IGMP Snooping, GMRP, GVRP, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP, SSH, Telnet, Syslog, LLDP, EtherNet/IP, Modbus/TCP

MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9

Switching features

Qos queue: 8 VLAN-ID: 1-4094

Back plane bandwidth: 56 Gbps List of MAC addresses: 8K

Message buffer size: 4 Mb

Port

Serial port: RS-232 (port type: RJ45 slot)

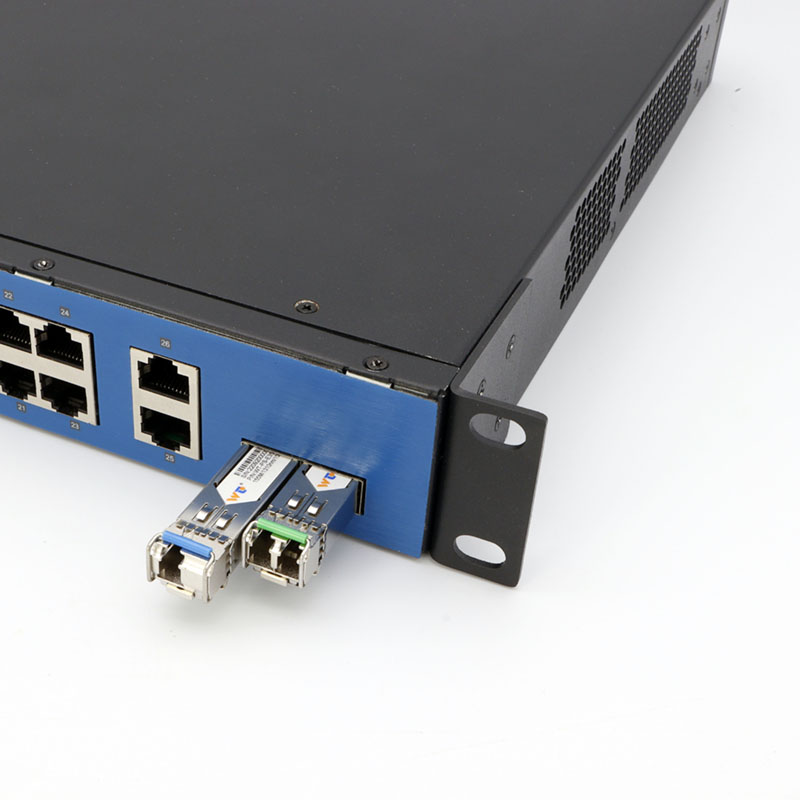

Gigabit fiber port: 1000 Mbps (port type: SFP slot)

Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.

LED indicator: PWR,Link/ACT, RUN

Power source requirement

Input voltage: AC220V

Input current Up to 200 mA

Physical properties

Enclosure: Metal IP30-rated protection

Size: 440 mm*300 mm*44 mm

Weight: 4380 g

Mounting method: Rack-mounted

Environmental restrictions

Working temperature: -20 ~ 75°C (-4 ~ 167°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMI: FCC Part 15/CISPR22 (EN55022): Class A

EMS:

IEC61000-4-2 (ESD) level 3, IEC 61000-4-3 (RS) level 3, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5 (Surge) level 4, IEC 61000-4-6 (CS) level 3

Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32

Note: Please go to the official website of Wintop Optical for the latest certification status.

MTBF (mean time between failures)

Time: 500,000 h

Warranty

Quality assurance: 3 years
