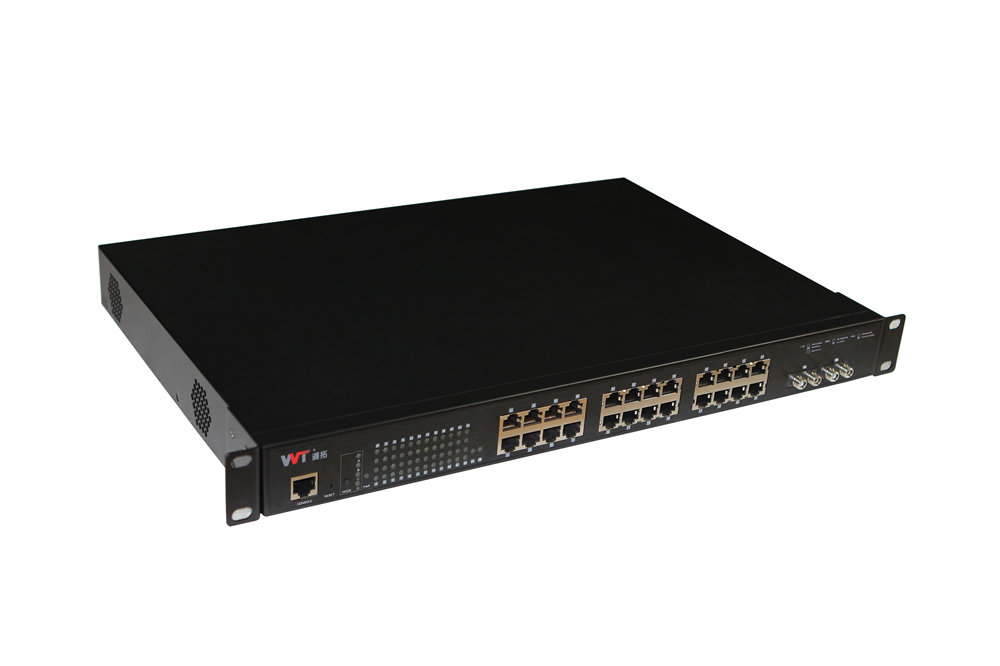

Gigabit POE Ethernet Switch (24TP+2F)

model： DS-10224G-AT-LP

DS-10224G-AT-LP is a type of plug-and-play unmanaged POE Ethernet switch, which supports 24 10/100/1000Base-T(x) + 2 1000Base-FX interfaces. With PoE, installation of network devices such as IP surveillance cameras, wireless access points, IP phones, and other PoE enabled devices in hard-to-reach, outdoor, and remote areas is simplified. No fan, low consumption and industrial grade design. More steadily work capability. To satisfy applications in different industrial environments, it can also provide wide temperature type in accommodation with limit temperature ( up to -40 ~ 75°C) .

Now Consulting

Description Technical parameters Applications Download Related Products

Features

Support 24pcs RJ45 fast Ethernet ports and 2pcs fiber ports (SC or ST)

Support IEEE802.3/802.3u/802.3x/IEEE802.3af/IEEE802.3at

Support broadcast storm shield

DC110～220V or AC100～240V 3 bits terminal block power input

No fan, low consumption,EMC-4 grade design

IP30 protection, metal shell

Over voltage protection

All port anti-lighting (6KV)

Supports IEEE 802.3af/IEEE802.3at compliant PoE enabled device

Label： Rack-Mount Ethernet Switches

Specifications

Technology
Standard	IEEE802.3、IEEE802.3u、IEEE802.3x
Flow control	IEEE802.3x
MAC address	8K
Interface
RJ45 Ports	10/100/1000M auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports	1000Base-FX ports (SC/ST optional)
Console port	RS232, RJ45
LED indicator	PWR、SYS、Link/ACT
PoE
PoE Ports	Port1-24 support POE
PoE Standard	IEEE802.3at (15.4W for each POE port)
PoE Max power	600W
Power
Input power	110~220VDC（100~300VDC）Or100~240VAC（85~264VAC）
Input current	0.25A（@110VAC/VDC）
Connector	3 bits terminal block
Environmental
Operating Temperature	-20~60℃ (wide temperature optional)
Storage Temperature	-40~85℃
Relative Humidity	5%~95%（non-condensing）
Mechanical
Shell	IP30protection, metal case
Installation	19” 1U rack
W×H×D	185mm134mm35mm
Approvals
EMI	FCC Part 15，CISPR(EN55022)class
EMS	EN61000-4-2(ESD), Level 3 EN61000-4-3(RS), Level 3 EN61000-4-4(EFT), Level 3 EN61000-4-5(Surge), Level 3 EN61000-4-6(CS), Level 3 EN61000-4-8, 100A/m EN61000-4-12
Shock	IEC 60068-2-27
Free Fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
After-sales service
Warranty	3 years
