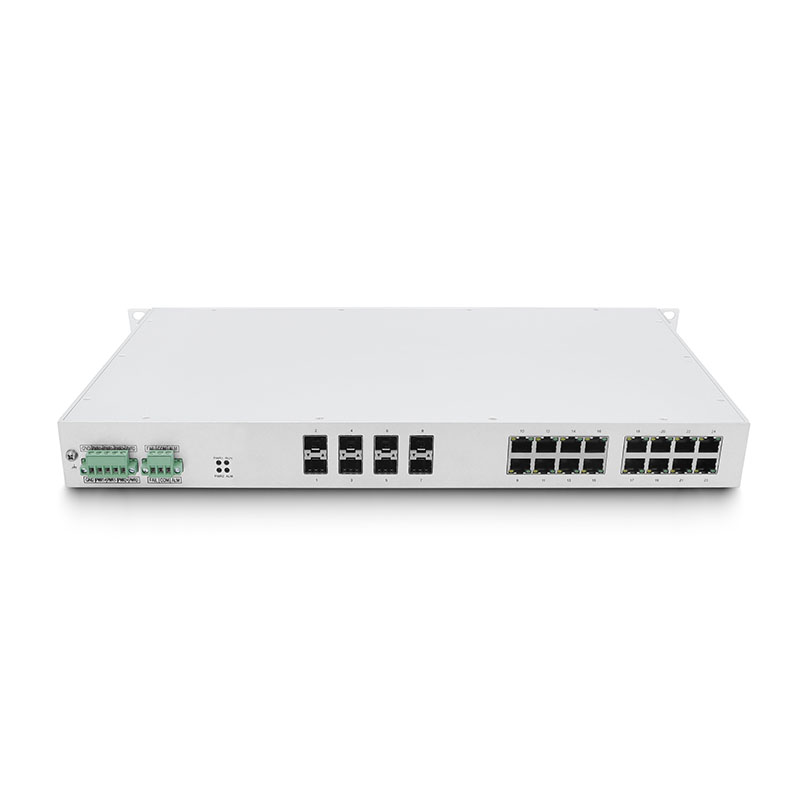

CM6000-8GF16GT Layer 2 RackMounted Managed Ethernet Switch

 Applicable standards

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseT

IEEE 802.3z 1000BaseFX & IEEE 802.3ab 1000BaseT

IEEE 802.3x Flow Control

IEEE 802.1D STP

IEEE 802.1w RSTP

IEEE 802.1p Cos & IEEE 802.1Q VLAN

Protocols

IGMP Snooping, SNMPv1/v2c/v3, TFTP, NTP,SNTP, RMON, HTTP,HTTPS,SSH,Telnet,Syslog,LLDP,LACP,WT-Ring,STP,

RSTP,ERPS,EEE

MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB

Switching features

QoS queue: 8 VLAN-ID: 1-4094

Back plane bandwidth: 48Gbps

List of MAC addresses: 8K

Message buffer size: 4.1Mbit

Port

Console port: RS-232 (port type: RJ45 slot)

Gigabit fiber port: 1000Mbps (port type: SFP slot)

Gigabit copper port: 10/100/1000Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.

LED indicator: PWR,ALM,Link/ACT, SPD,RUN

Relay: 2 channels, 1 channel for device alarm, 1 channel for device failure.

Power source requirement

Input voltage: Supports dual power redundant , AC/DC85?265V or DC18?60V

Physical properties

Enclosure: Aluminum shell IP40

Size: 440 mm*280 mm*44 mm

Weight: 3800g

Mounting method: Rack-mounted

Environmental restrictions

Working temperature: -40 ~ 75°C (-40 ~ 167°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMI:

FCC Part 15/CISPR22?EN55022??Class A

EMS:

IEC 61000-4-2 ESD level 4, IEC 61000-4-3 RS level 3,

IEC 61000-4-4 EFT level 4, IEC 61000-4-5 Surge level 4,

IEC 61000-4-6 CS level 3

Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32

MTBF (mean time between failures)

Time: 500,000 h

Warranty

Quality assurance: 5 years
