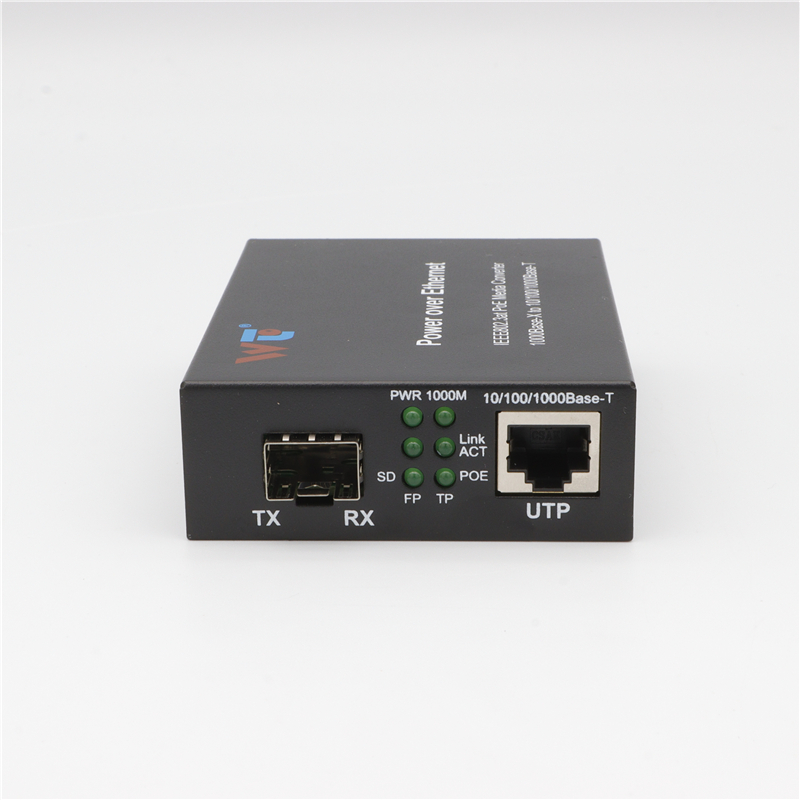

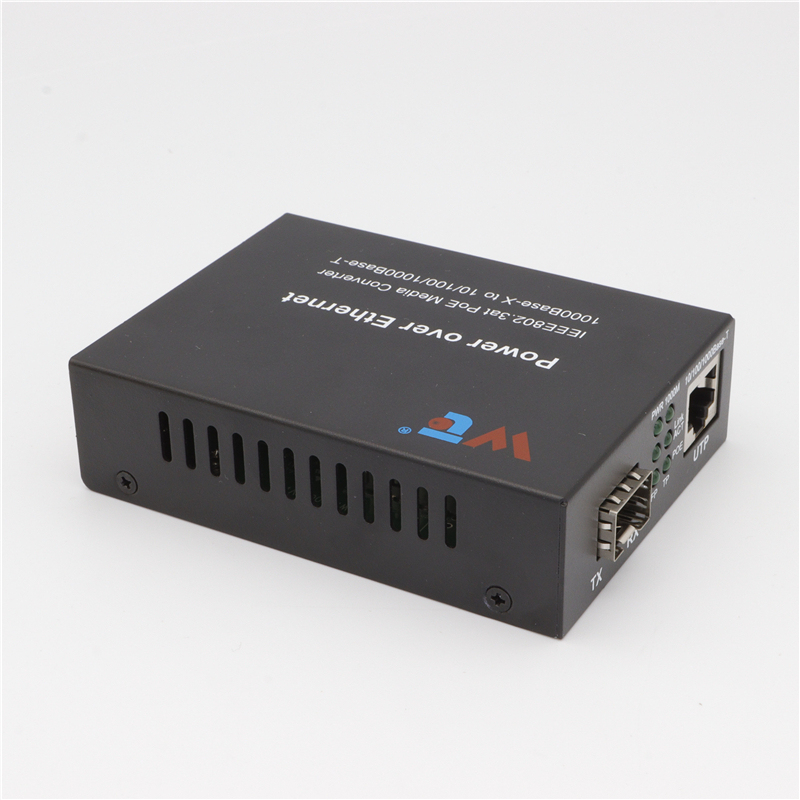

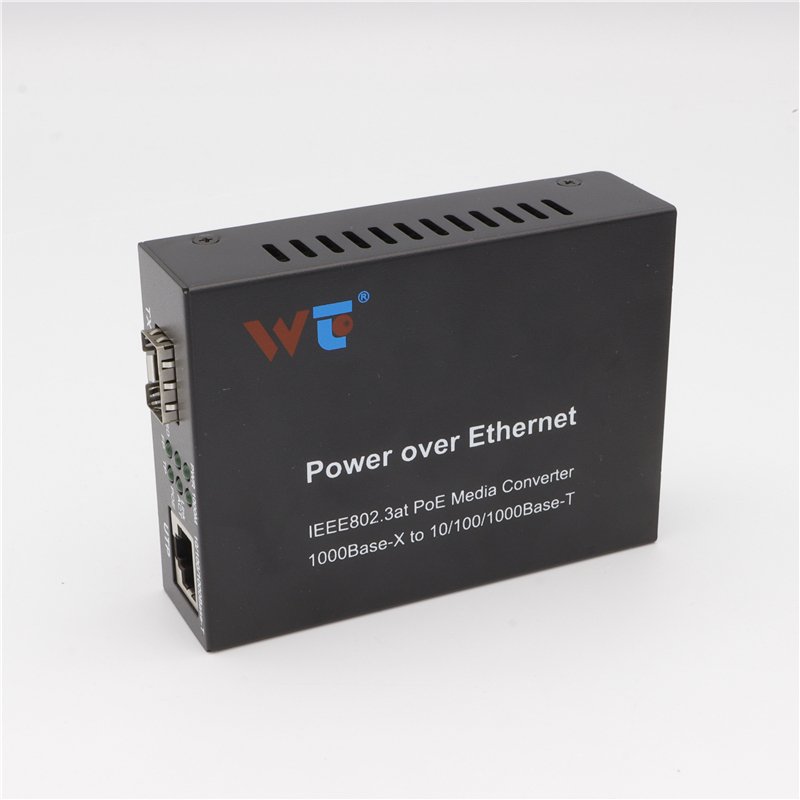

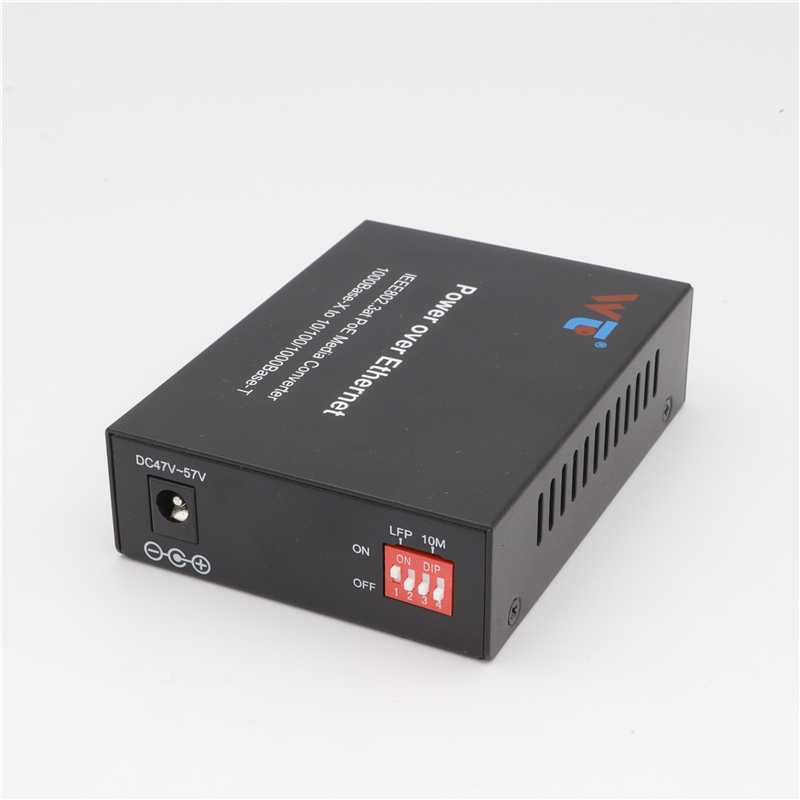

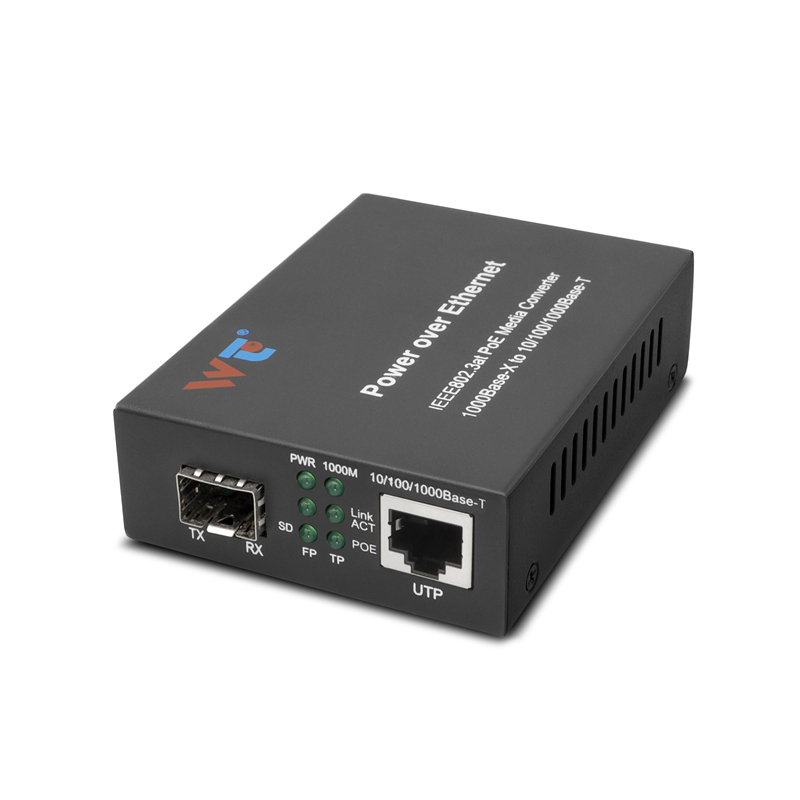

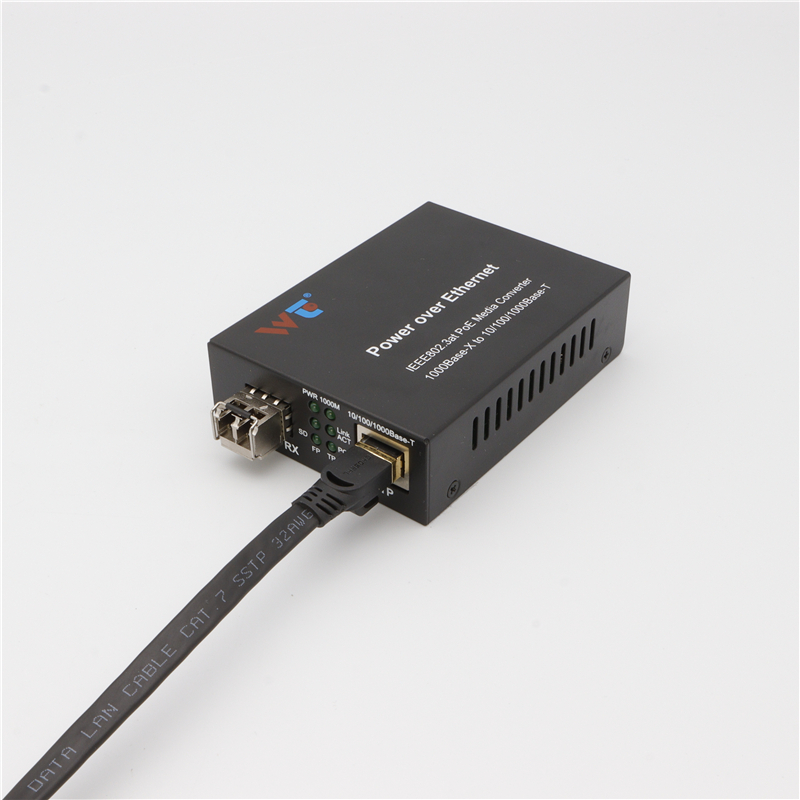

WT-P8100G POE Media converter

 Standard

IEEE 802.3    10Base-T

IEEE 802.3u   100Base-T

IEEE 802.3ab  1000Base-T

IEEE 802.3z   1000Base-FX

IEEE 802.3af/at

Interfaces

Electrical port?1x?RJ45? 10/100/1000Base-T

Optical port?1x?SFP? 1000Base-FX

Optical port characteristics

Rate?100/1000Mbps

Wavelength?single-mode ?1310nm/1550nm

             Multimode?850nm

Transmission distance?single-mode?2Km

Multimode?20/40/60/80Km

Interface type?SFP

Electrical port characteristics

Rate?10/100/1000Mbps adaptive

Working mode?full duplex / half duplex

Transmission distance?0-~100m

Interface type?RJ45

LED

PWR, Link/Act FP, Link/Act TP, 1000M, SPD, POE

Power requirements

Input voltage: DC47~57V

SIze? 94mmx70mmx26mm?L*W*H?

Environmental restrictions

Operating temperature: -20 ~ 60°C (-4 ~ 140°F)

Storage temperature: -20 ~ 70°C (-4 ~ 158°F)

Relative humidity: 5 ~ 90% (non-condensing)

MTBF

Time : 500000 h

Warranty

Quality assurance : 3 year
