WT-QSFP28-AOC

model：

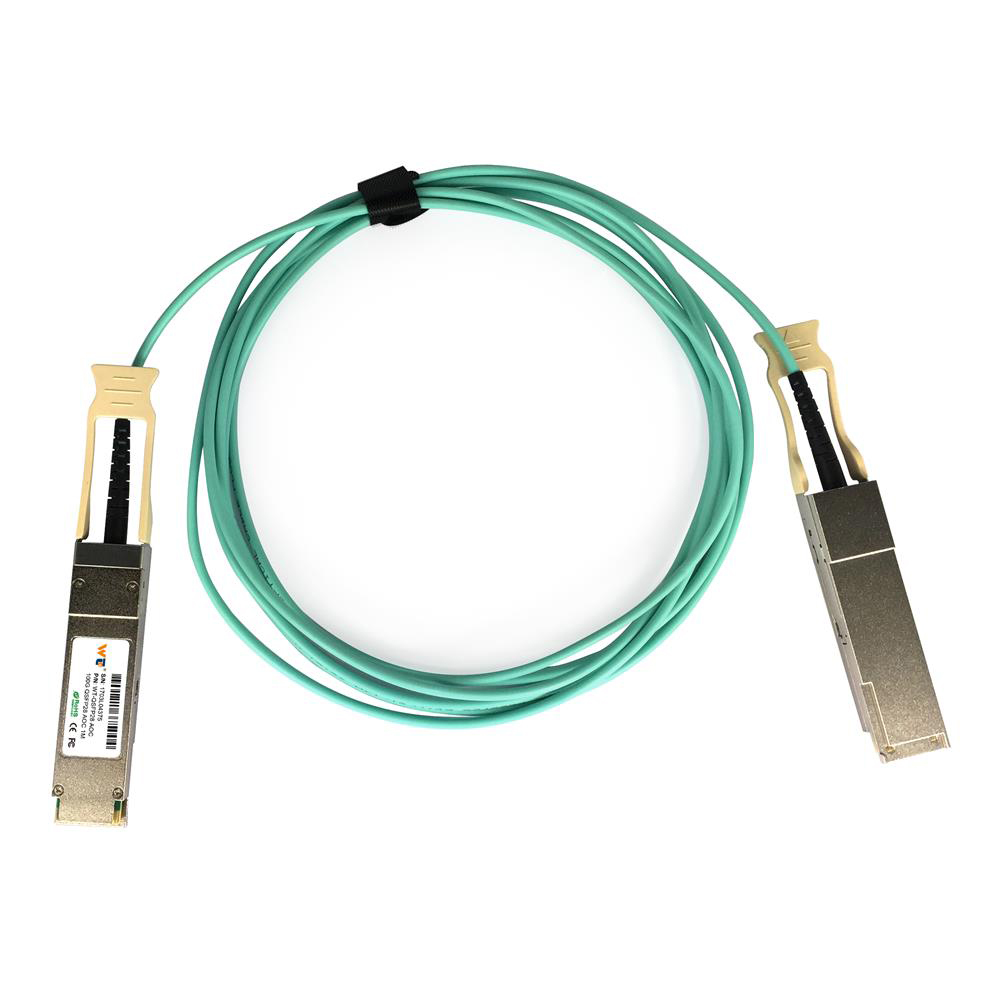

100Gbs QSFP28 Active Optical Cable WT-QSFP28-AOC

Description Technical parameters Applications Download Related Products

PRODUCT FEATURES

l Four-channel full-duplex active optical cable

l Transmission data rate up to 26Gbit/s per channel

l Reliable VCSEL array technology using multi-mode fiber

l Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,70m

l Low power consumption <3.5W

l Operating case temperature 0°C to +70°C

l 3.3V power supply voltage

l RoHS 6 compliant

l Hot Pluggable QSFP form factor

APPLICATIONS

l 100G Ethernet

l Data center

l Infiniband QDR/DDR/SDR

l 4G/8G/10G Fibre Channel

Mechanical Dimensions

Label： AOC

Electrical Specifications

Parameter	Symbol	Min	Typical	Max	Unit
Differential input impedance	Zin	90	100	110	ohm
Differential Output impedance	Zout	90	100	110	ohm
Differential input voltage amplitude	ΔVin	300		1100	mVp-p
Differential output voltageamplitude	ΔVout	500		800	mVp-p
Bit Error Rate	BR			E-12
Input Logic Level High	VIH	2.0		VCC	V
Input Logic Level Low	VIL	0		0.8	V
Output Logic Level High	VOH	VCC-0.5		VCC	V
Output Logic Level Low	VOL	0		0.4	V

For detail, please check the datasheet in "Download".
