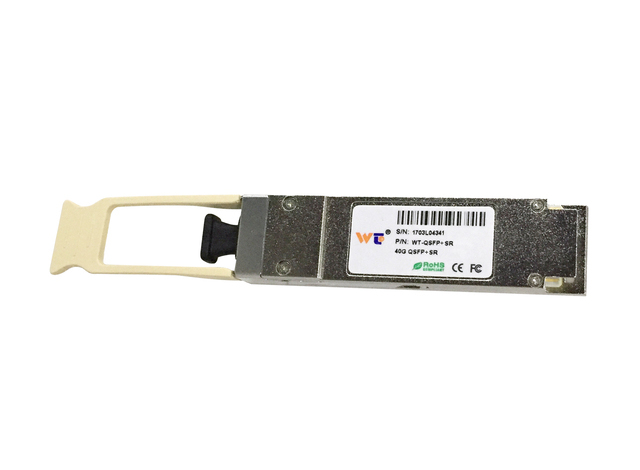

WT-QSFP+ -SR4

model：

QSFP+ 40Gbase Transceiver Module

Description Technical parameters Applications Download Related Products

FEATURES

lRoHS-6 compliant

lHigh speed / high density: support up to 4X10 Gb/s bi-directional operation

lCompliant to industrial standard SFF-8436 QSFP+ standard

lLow power consumption : less than 1.5W

lDistance up to 100 meters by OM3 fiber and 150M by OM4 fibe

lReliable VCSEL and PIN photonic devices

lI2C standard management interface

lExcellent high speed signal integrity

APPLICATIONS

l40G Ethernet (40GBASE-SR4)

lProprietary high speed, high density data transmission.

lSwitch and router high speed backplane interconnect

lHigh performance computing, server and data storage.

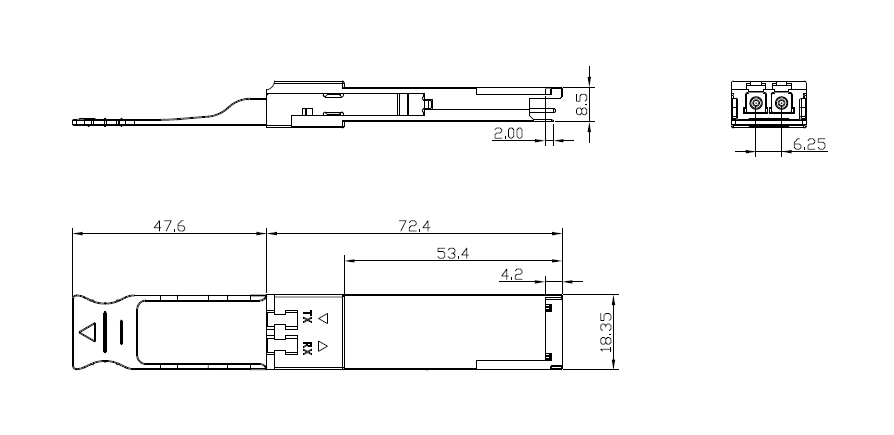

Mechanical Dimensions

Label： QSFP+

General Operating Characteristics

(V CC3=3.135V~3.465V, TC= 0 º to 70 º, Per End)

Notes:

1. See ordering information. The position for measuring case temperature is shown as following

2. Non-condensing

3. Tested with PRBS 231-1, BER 1X10-12

4. For all control input pins: LPMode, Reset and ModSelL

5. For all status output pins: ModPrsL , IntL

6. For management interface.

For detail, please check the datasheet in "Download".
