WT-QSFP28-LR4

model：

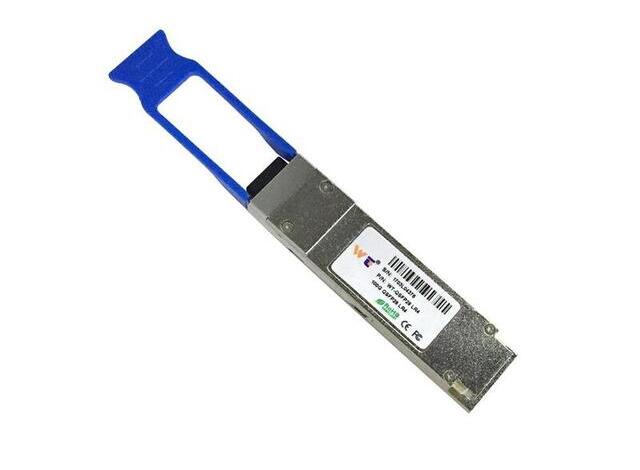

100Gbs QSFP28 LR4 Optical Transceiver Module

Now Consulting

Description Technical parameters Applications Download Related Products

FEATURE

l Hot pluggable QSFP28 MSA form factor

l Compliant to IEEE 802.3ba 100GBASE-LR4

l Up to 10km reach for G.652 SMF

l Single +3.3V power supply

l Operating case temperature: 0~70oC

l Transmitter: cooled 4x25Gb/s LAN WDM TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

l Receiver: 4x25Gb/s PIN ROSA

l 4x28G Electrical Serial Interface (CEI-28G-VSR)

l Maximum power consumption 4.0W

l Duplex LC receptacle

l RoHS-6 compliant

APPLICATIONS

l 100GBASE-LR4 Ethernet Links

l Infiniband QDR and DDR interconnects

l Client-side 100G Telecom connections

Outline drawing

Label： QSFP28

OPTICAL CHARACTERISTICE

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Lane Wavelength

1294.53

1295.56

1296.59

1299.02

1300.05

1301.09

1303.54

1304.58

1305.63

1308.09

1309.14

1310.19

Transmitter

Side Mode Suppression Ratio

SMSR

Total Average Launch Power

10.5

dBm

Average Launch Power,

each Lane

PAVG

-4.3

4.5

dBm

OMA, each Lane

POMA

-1.3

4.5

dBm

Difference in Launch Power

Ptx,diff

between any Two Lanes (OMA)

Launch Power in OMA minus

Transmitter and Dispersion Penalty

(TDP), each Lane

-2.3

dBm

TDP, each Lane

TDP

2.2

Extinction Ratio

RIN20OMA

RIN

-130

dB/Hz

Optical Return Loss Tolerance

TOL

Transmitter Reflectance

-12

Eye Mask{X1, X2, X3, Y1, Y2, Y3}

{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}

Average Launch Power OFFTransmitter, each Lane

Poff

-30

dBm

Receiver

Damage Threshold, each Lane

THd

5.5

dBm

Total Average Receive Power

10.5

dBm

Average Receive Power, each Lane

-10.6

4.5

dBm

Receive Power (OMA), each Lane

4.5

dBm

Receiver Sensitivity (OMA), each Lane

SEN

-8.6

dBm

Stressed Receiver Sensitivity (OMA), each Lane

-6.8

dBm

Receiver Reflectance

-26

Difference in Receive Power

between any Two Lanes (OMA)

Prx,diff

5.5

LOS Assert

LOSA

-18

dBm

LOS Deassert

LOSD

-15

dBm

LOS Hysteresis

LOSH

0.5

Receiver Electrical 3 dB upper

Cutoff Frequency, each Lane

GHz

Conditions of Stress Receiver Sensitivity Test (Note 5)

Vertical Eye Closure Penalty, each Lane

1.8

Stressed Eye J2 Jitter, each Lane

0.3

Stressed Eye J9 Jitter, each Lane

0.47

Notes:

1. Even if the TDP < 1 dB, the OMA min must exceed the minimum value specified here.

2. See Figure 4 below.

3. The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.

4. Measured with conformance test signal at receiver input for BER = 1x10-12.

5. Vertical eye closure penalty and stressed eye jitter are test conditions for measuring stressedreceiver sensitivity. They are not characteristics of the receiver.

For detail, please check the datasheet in "Download".
