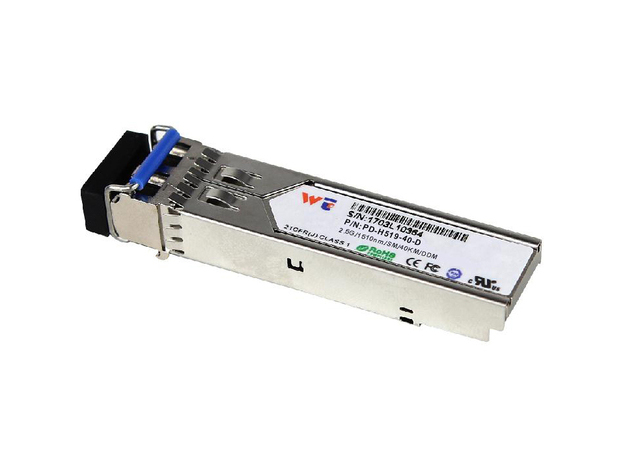

2.5Gbps SFP Optical Transceiver 40Km

model： WTPD-HXX9-40Lx-D CWDM

WTPD-H**9-40L*-D 2.5Gbps SFP Optical Transceiver 40K m DDM (1270-1610 nm)

Description Technical parameters Applications Download Related Products

Feature:

l SFP package with LC connector

l 1270-1610nm CWDM DFB laser with Isolator and PIN photo detector

l Up to 40Km transmission on SMF

l +3.3V single power supply

l LVPECL compatible data input/output interface

l Low EMI and excellent ESD protection

l laser safety standard IEC-60825 compliant

l Digital Diagnostic SFF-8472 compliant

l Compatible with RoHS

l Telecom

l Fiber Channel

Outline drawing (mm):

Label： SFP

Optical Characteristics:

(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)

Parameter	Symbol	Min.	Typ.	Max.	Units
Transmitter Section
Center Wavelength	lo	1xx0-6.5	1xx0	1xx0+6.5	nm
Spectral Width(RMS)	Dl	-	-	1	nm
Side Mode Suppression Ratio	SMSR		35
Average Output Power	Po	-3	-	4	dBm
Extinction Ratio	Er	8	-	-	dB
Rise/Fall Time(20%~80%)	Tr/Tf			0.26	ns
Total jitter	Tj			0.43	UI
Optical Eye Diagram	IEEE 802.3z and ANSI Fibre Channel Compatible
Receiver Section
Center Wavelength	lo	1270		1610	nm
Receiver Sensitivity	Rsen			-22	dBm
Receiver Overload	Rov	-3			dBm
Return Loss		12			dB
LOS Assert	LOS_A	-36			dBm
LOS Dessert	LOS_D			-23	dBm
LOS Hysteresis		0.5		4
