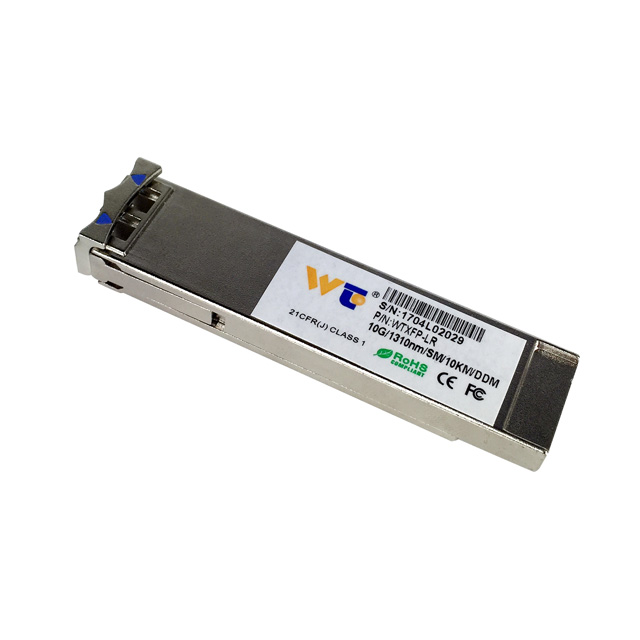

1.Feature
l Supports 9.95Gb/s to 11.3Gb/s bit rates
l
Hot Pluggable XFP Footprint
l 1310nm DFB Laser and PIN photo detector
l Up to 20km transmission on SMF
l Power dissipation < 2W
l Single Power Supply: 3.3V
l No Reference Clock Required
l Compatible with RoHS
l Built-in Digital Diagnostic Functions
2.Application
l 10GBASE-LR/LW 10G Ethernet
l SONET OC-192 SR-1
l SDH STM I-64.1
l 1200-SM-LL-L 10G Fibre Channel
l 10GBASE-LR/LW with FEC
l 1200-SM-LL-L 10G Fibre Channel with FEC
Optical Characteristics
(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
Transmitter Section |
|||||
|
Center Wavelength |
lo |
1290 |
1310 |
1330 |
nm |
|
Side-Mode Suppression Ratio |
SMSR |
35 |
- |
- |
dB |
|
Average Output Power |
Po |
-5 |
- |
+0.5 |
dBm |
|
Extinction Ratio |
Er |
4 |
- |
- |
dB |
|
Jitter(p-p) |
|
|
|
0.1 |
UI |
|
Relative Intensity Noise |
RIN12OMA |
|
|
-130 |
dB/Hz |
|
Receiver Section |
|||||
|
Center Wavelength |
lo |
|
1310 |
|
nm |
|
Receiver Sensitivity |
Rsen |
|
|
-14.5 |
dBm |
|
Stressed Sensitivity |
Rsen |
|
|
-13.5 |
dBm |
|
Receiver Overload |
Rov |
0 |
|
|
dBm |
|
Return Loss |
|
12 |
|
|
dB |
|
LOS Assert |
LOSA |
-28 |
|
|
dBm |
|
LOS Dessert |
LOSD |
|
|
-15 |
dBm |
|
LOS Hysteresis |
|
0.5 |
|
4 |
|
