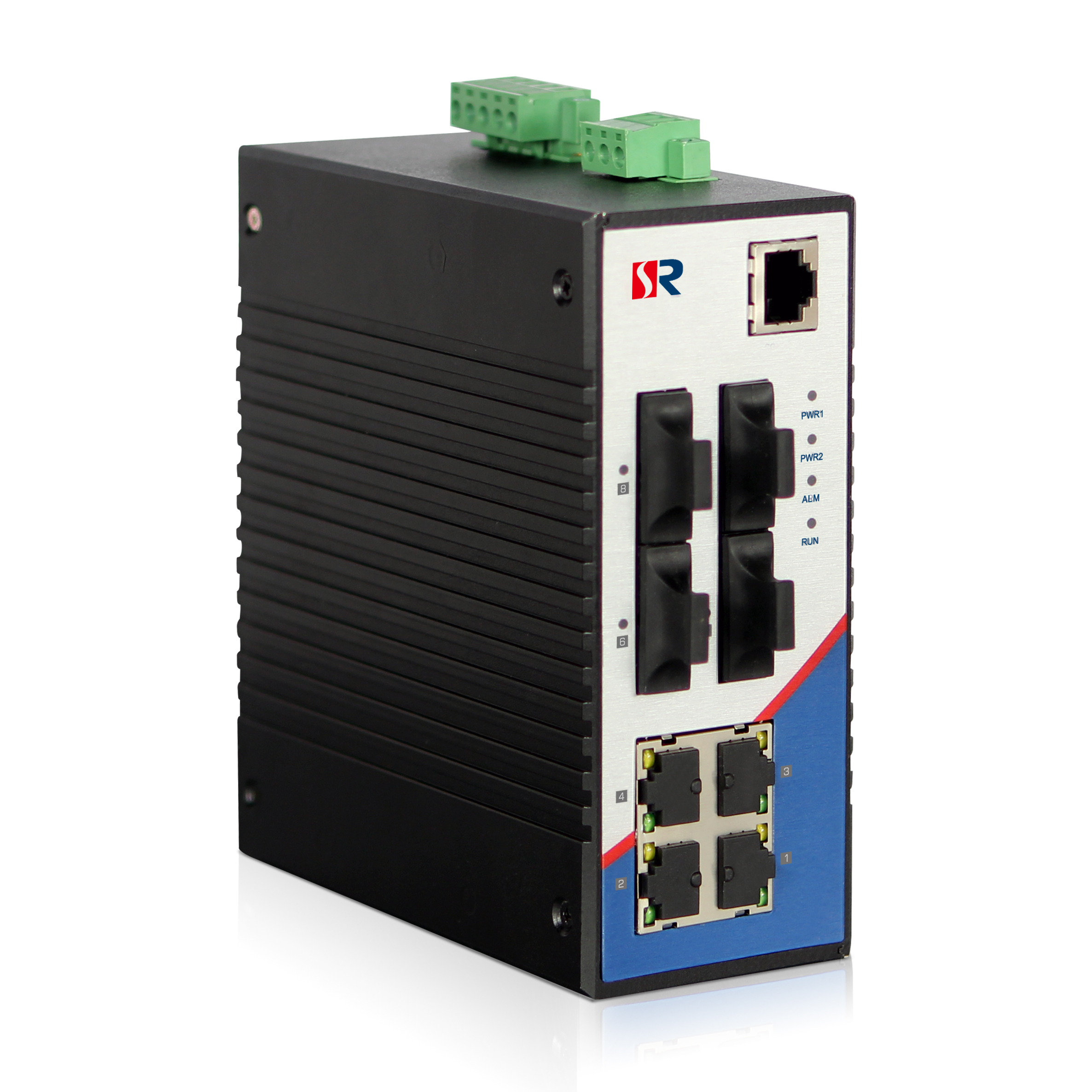

8 ports Managed Industrial Switches

model： RS608-4F4T

4 �100M fiber ports + 4�10/100M Ethernet port

Description Technical parameters Applications Download Related Products

Features

nSupport 4-port 10/100Base-T(x) RJ45 Ethernet and 2-port 100Base-F(x)

nNo fan, IP40 protection grade, Industrial design standard

nSupport DC and AC dual power input, built-in over-current protection, Reverse connection protection

nWorking temperature:-40?~85?, Storage Temperature?-40 ~ 85 ?

nCommand line?CLI?+WEB?Can rapid configuration network function

nsupport WT-Ring?way exchange time<50ms?and STP/RSTP/MSTP

nSNMP V1/V2c/V3?support WT2000 web management

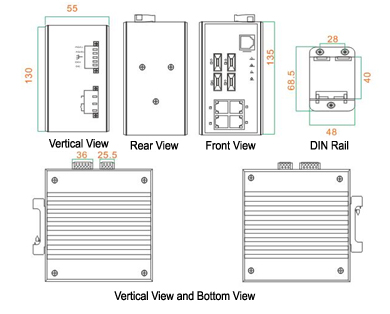

Dimension

Unit (mm)

Order information

Packaging List

• Industrial Switches

• Serial Line

• Installation parts

• User manual

• Warranty card

• Certificate of quality

Label： Industrial Switches

Products properties

Interface	Serial Port : RS-232 ( RJ45 slot) Fiber port : 100Mbps ( SFP slot) RJ45 port : 10/100Mbps auto negotiation speed, and auto MDI/MDI-X connection? LED Indicator:PWR1,PWR2,ALM,Link/Act,SPD,SYS
Switch Property	Qos line :4 VLAN : 1-4094 VLAN-ID :64 Backplane bandwidth :5.2Gbps MAC Table size : 8K Jumbo Frame Size : 3Mbit
Power Requirement	Input Voltage: 2 redundant backup?AC 100~240V DC 18~75V Input Current : AC max 0.1A?DC max 0.5A
Physical Characteristics	Housing: metal, IP40 protection Dimensions:135mm130mm55mm Weight : 850g Installation : DIN-rail mounting
Environment	Operating Temperature?-40 ~ 85 ? ( - 40 ~ 185 °F) Storage Temperature?-40 ~ 85 ? ( - 40 ~ 185 °F) Ambient Relative Humidity?5 ~ 95% (non-condensing)
Standards and certification	EMI: FCC Part 15/CISPR22?EN55022??Class A EMS: IEC61000-4-2 (ESD) 4?IEC 61000-4-3 (RS) 3?IEC 61000-4-4 (EFT) 4? IEC 61000-4-5 (Surge) 4?IEC 61000-4-6 (CS) 3 Vibration : IEC 60068-2-6 Shock : IEC 60068-2-27 Freefall : IEC 60068-2-32 MTBF 500000 h
Warranty	5 years
