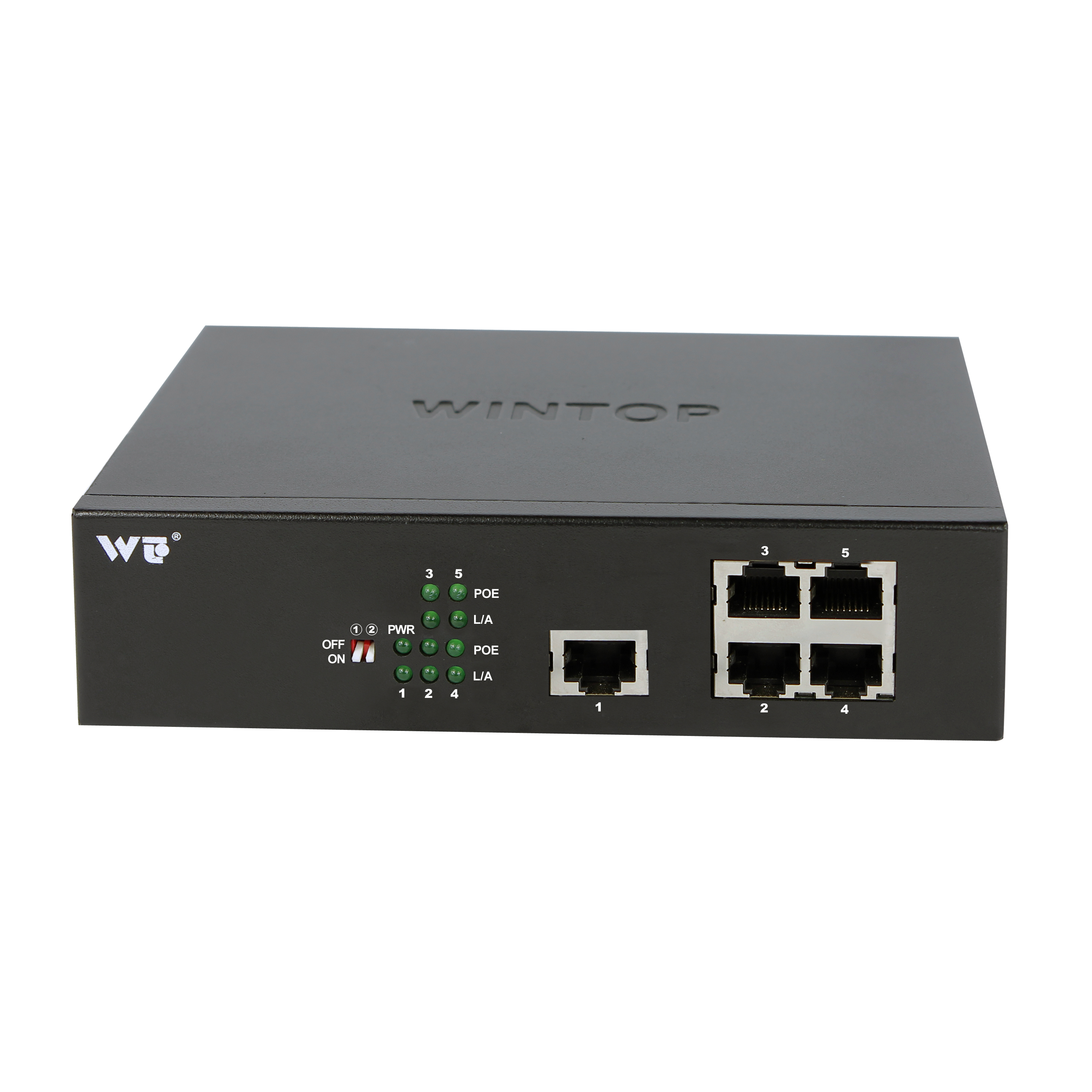

4 ports POE Ethernet Switches

model： WT-DS205-1GT4T-AF

1 ×10/100/1000M Ethernet port + 4×10/100M Ethernet port; 65W

Description Technical parameters Applications Download Related Products

Features

nProvide 5 Gigabit ports, four support POE power supply

n2-5 electrical ports of POE IEEE 802.3af-compliant devices

nApplicable voltage range 100~240V AC

nMeet the EMC Industrial Class 4 Electromagnetic Compatibility Requirement (lightningproof, antistatic, anti-surge,anti pulse packet)

n6KV all ports lightningproof, 3KV isolated power supply

nApplicable to -20℃～60℃ working environment.

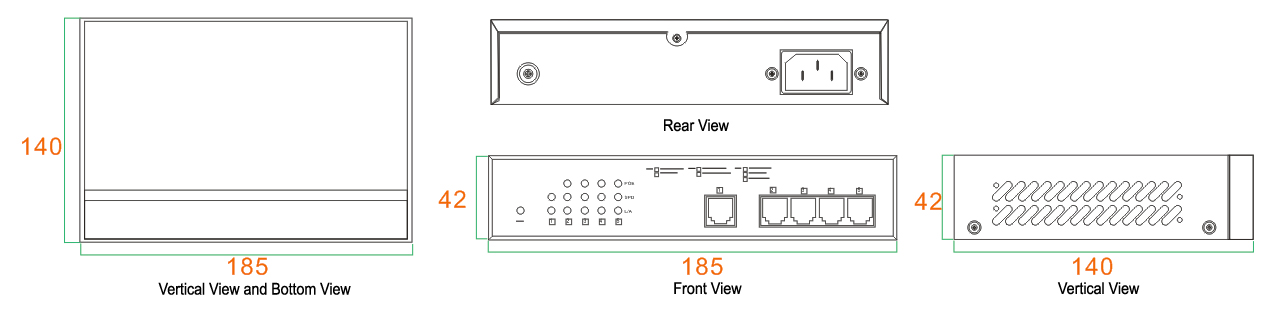

Dimension

Unit (mm)

Order information

Packaging List

• Ethernet Switch

• AC Power Cable

• Installation Accessories

• User’s Manual

• Warranty Card

• Qualification Certificate

Label： POE Switches

Product Properties

Interface	Electrical interface: 10/100 / 1000 Mbps, Full / Half duplex mode, support MDI / MDI-X. Transmission distance 0-100m LEDindicator:PWR,Link/ACT, SPD,POE
Switch Properties	Backboard bandwidth:10GbpsMAC address table:8K Message cache size:1MbitsMaximum frame rate: 10KB Packet forwarding rate:7.5Mpps
Power Supply	Input voltage: 100~240V AC Input current: max 600mA
Physical Properties	Housing: metal, IP30 protection Dimension: 185x140x42mm Weight: 750g
Environmental Constraint	Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing)
Standards and certification	Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) Class 4, IEC 61000-4-3 (RS) Class 4, IEC 61000-4-4 (EFT) Class 4, IEC 61000-4-5 (Surge) Class 4, IEC 61000-4-6 (CS) Class 4 Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF (mean time between failures) Time: 500000h
Quality Warranty	3 years
