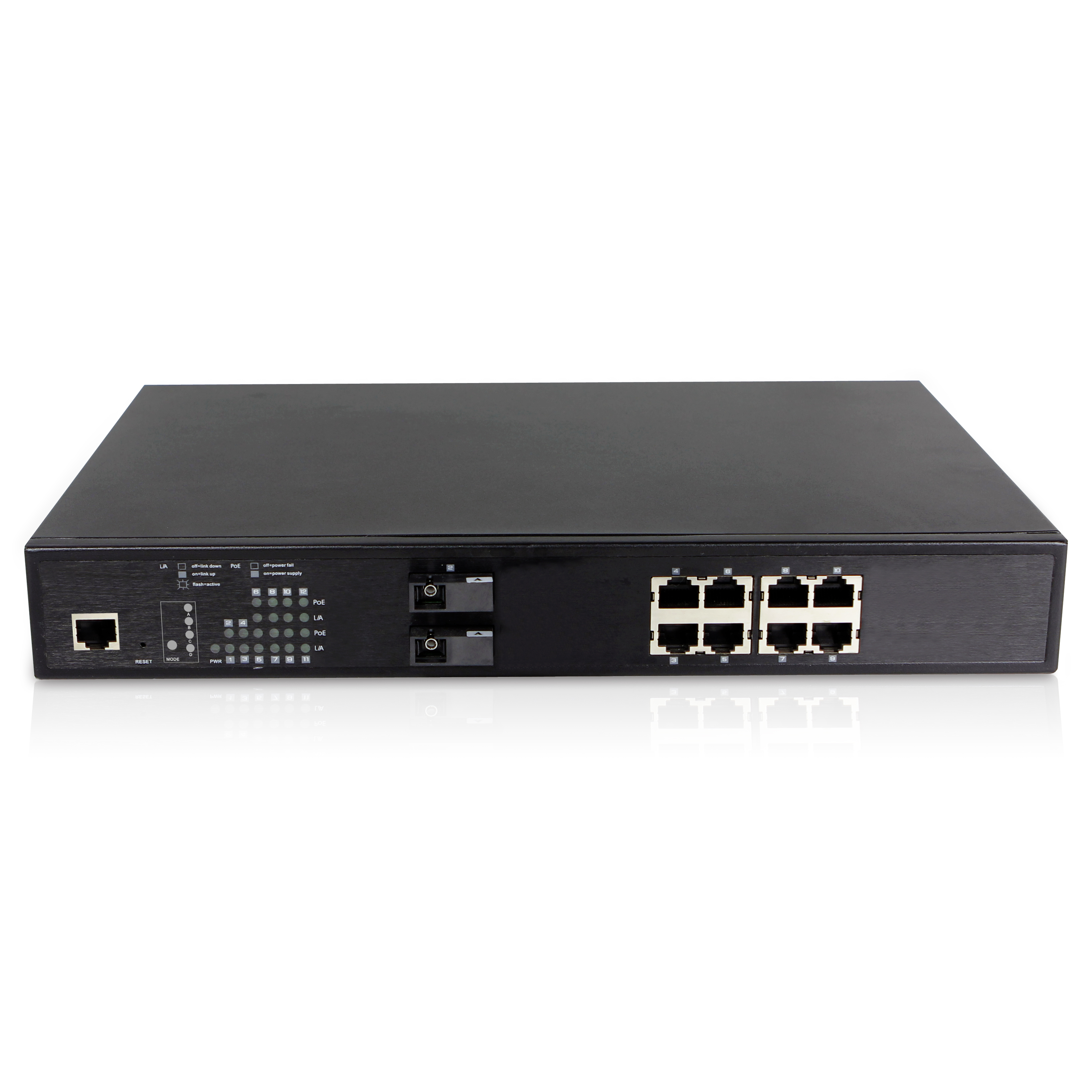

8 ports POE Ethernet Switches (Gigabyte)
model： WT-DS2010-2GT8GT-P-AF
2 ×1000M fiber ports + 8×10/100/1000M Ethernet port; 150W
Features
nProvide eight 1000Mbps electric interfaces, two 1000Mbps optical interfaces
nElectric interfaces support POE equipment ,whichconform to the standard of 802.3af IEEE
nApplicable voltage range 100~240V AC
nMeet the EMC Industrial Class 4 Electromagnetic Compatibility Requirement (lightningproof, antistatic, anti-surge,anti pulse packet)
n6KV all ports lightningproof
nApplicable to -20℃～60℃ working environment

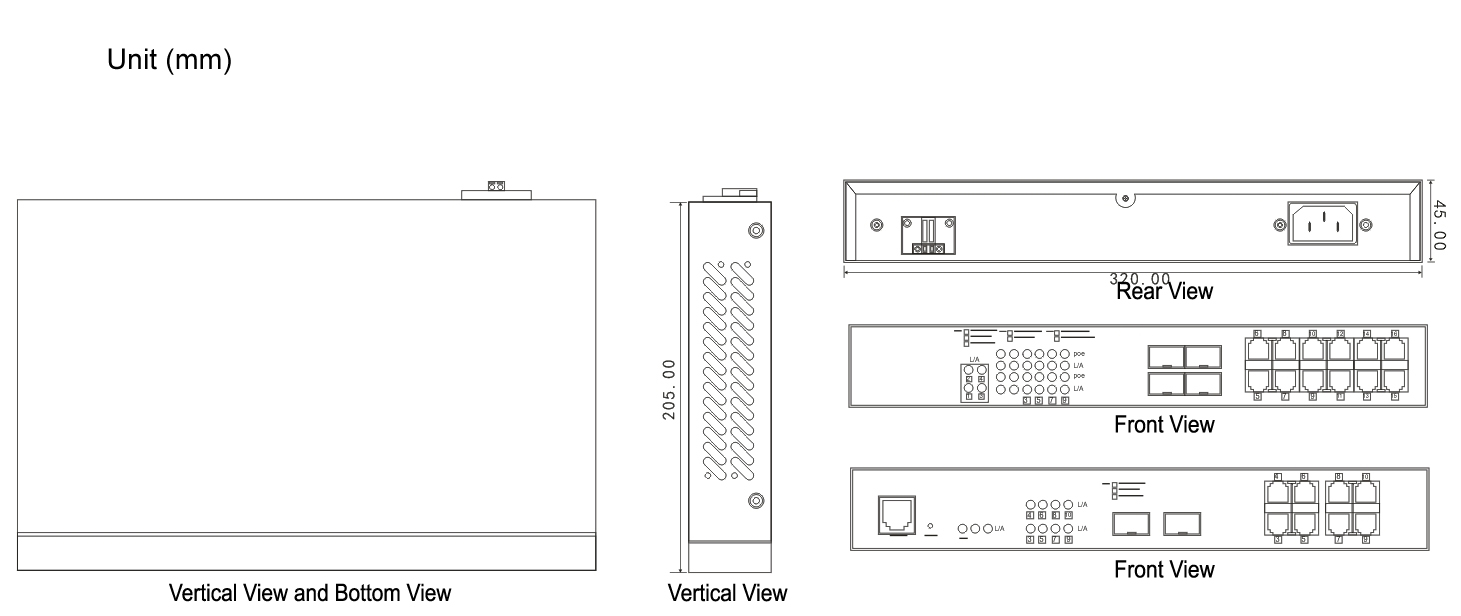

Dimension
Unit (mm)
Order information
|
Optional Models |
Interface Type |
|||
|
10/100BaseT |
10/100/1000BaseT |
100BaseFX |
1000BaseFX |
|
|
Multimode /Single-Mode |
||||
|
DS1010-2GF8GT-A1-AF |
8（POE) |
- |
- |
2(SC/ST/FC or SFP slot)
|
Packaging List
• Ethernet Switch
• AC Power Cable
• Installation Accessories
• User’s Manual
• Warranty Card
• Qualification Certificate
Products Properties
|
Interface |
Optical interface: 1000Mbps (Interface type:SC/FC/ST/SFP slot) Network interface: 10/100/1000Mbps self-adaptation, Full/Half duplex mode, support MDI/MDI-X. Transmission distance at common mode 0-100m; LED indicator: PWR, Link/ACT, SPD,POE |
|
Switch Properties |
Backboard bandwidth:32Gbps MAC address table: 8K Message cache size: 4Mbit Maximum frame rate: 10KB Packet forwarding rate:23.81 Mpps |
|
Power Supply |
Input voltage: 100~240V AC Input current: max 1500mA (DC) |
|
Physical Properties |
Housing: metal, IP30 protection Dimension: 320x205x45mm Weight: 1900g Installation mode: desktop installation, wall-mounted installation |
|
Environmental Constraint |
Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing) |
|
Standards and certification |
Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) Class 4, IEC 61000-4-3 (RS) Class 4, IEC 61000-4-4 (EFT) Class 4, IEC 61000-4-5 (Surge) Class 4, IEC 61000-4-6 (CS) Class 4 Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF (mean time between failures) Time: 500000h |
|
Quality Warranty |
3 years |
