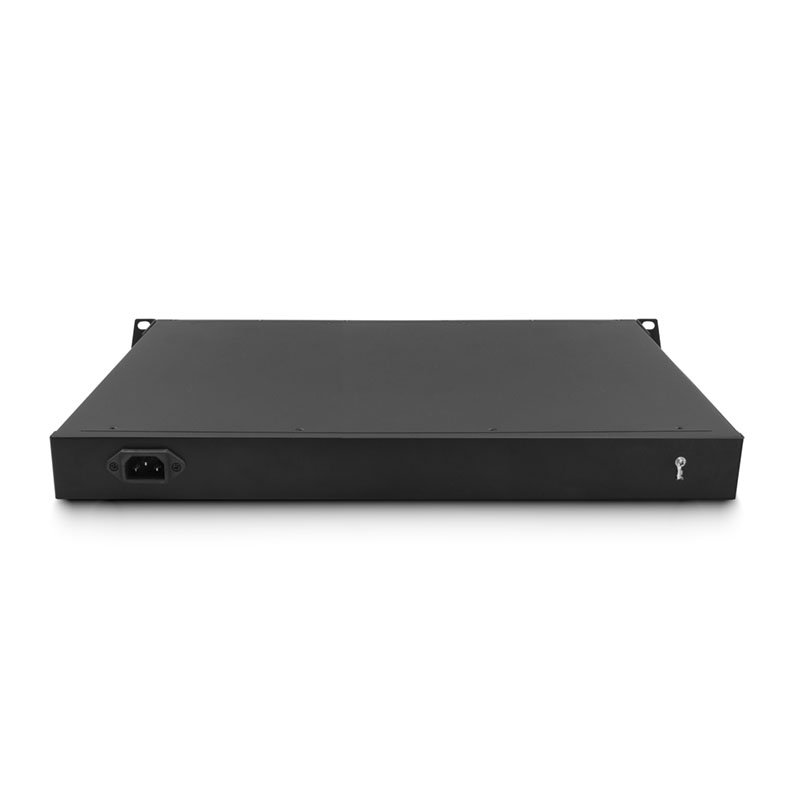

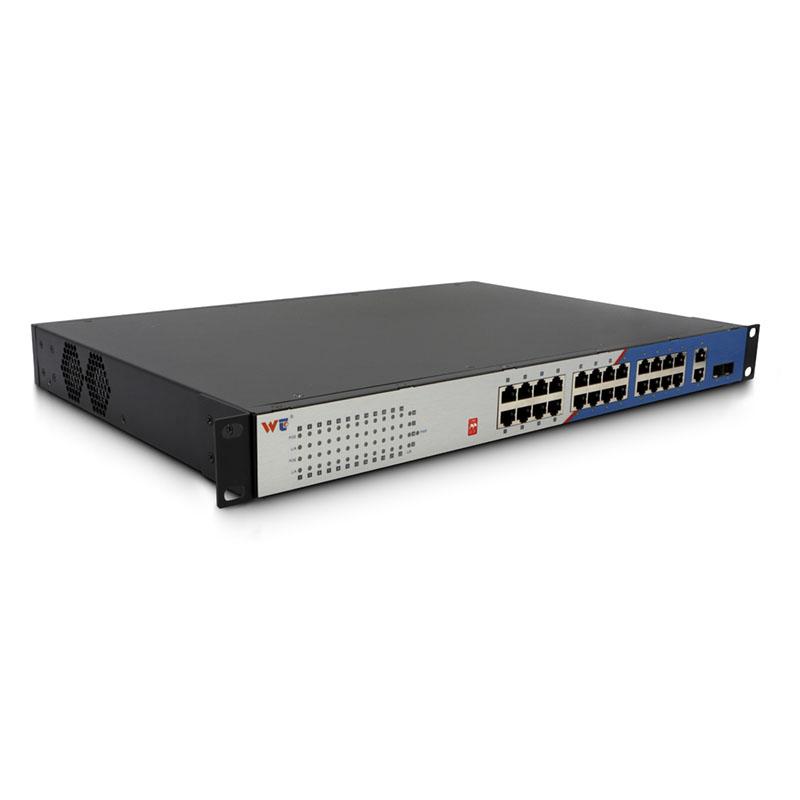

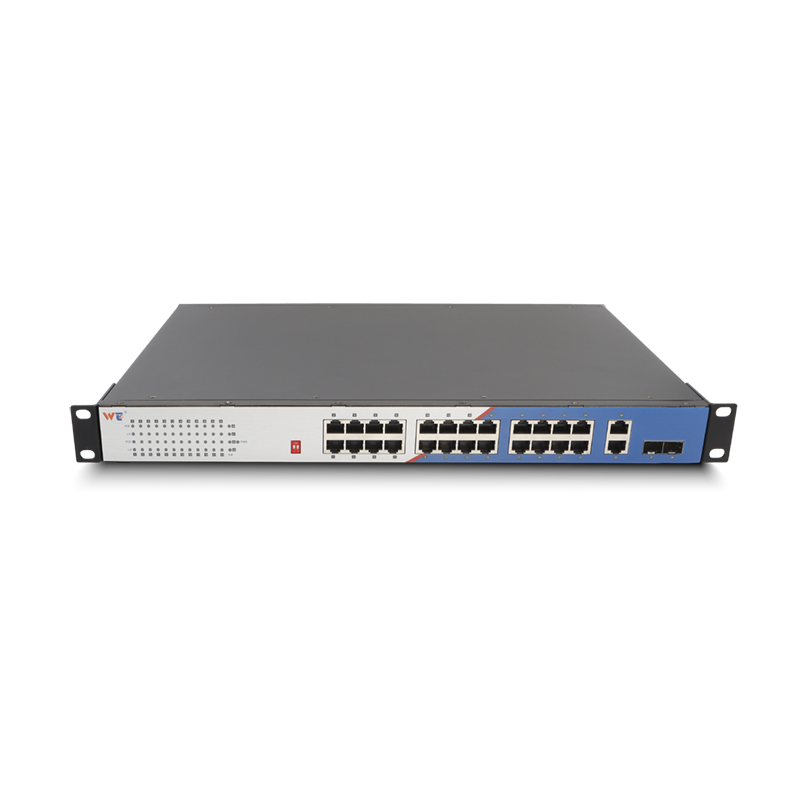

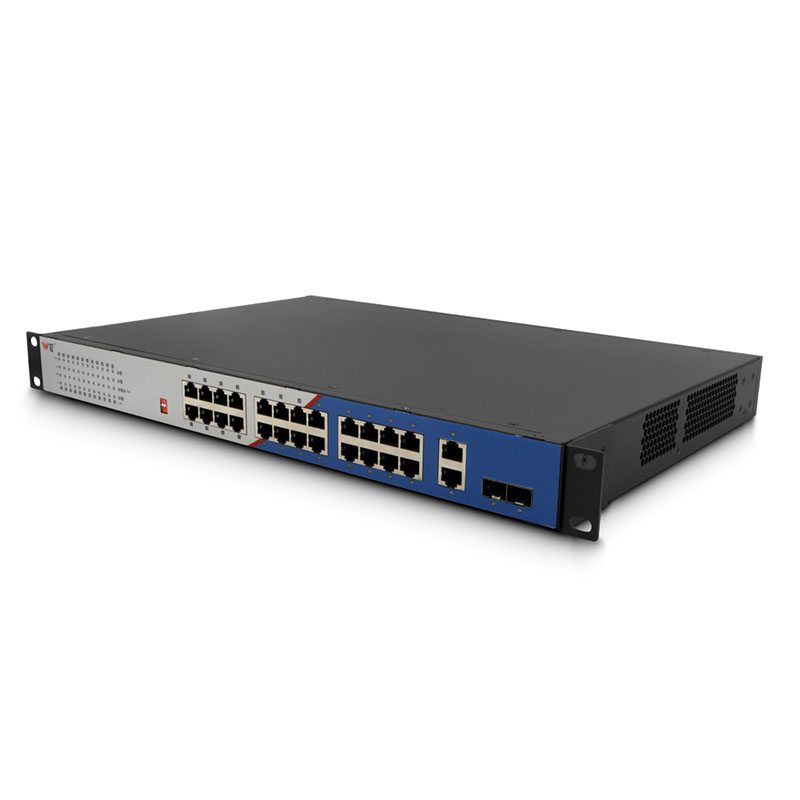

CM2328-2GF26GT-24POE Smart Dial POE Switch

Applicable standards

EEE 802.3 10BaseT

IEEE 802.3u 100BaseT

IEEE 802.3z 1000BaseFX, IEEE 802.3ab  1000BaseT

IEEE 802.3af/802.3at POE

Switching feature

Back plane bandwidth: 56 Gbps

List of MAC addresses: 8K

Message buffer size: 4.1 Mbit

Port

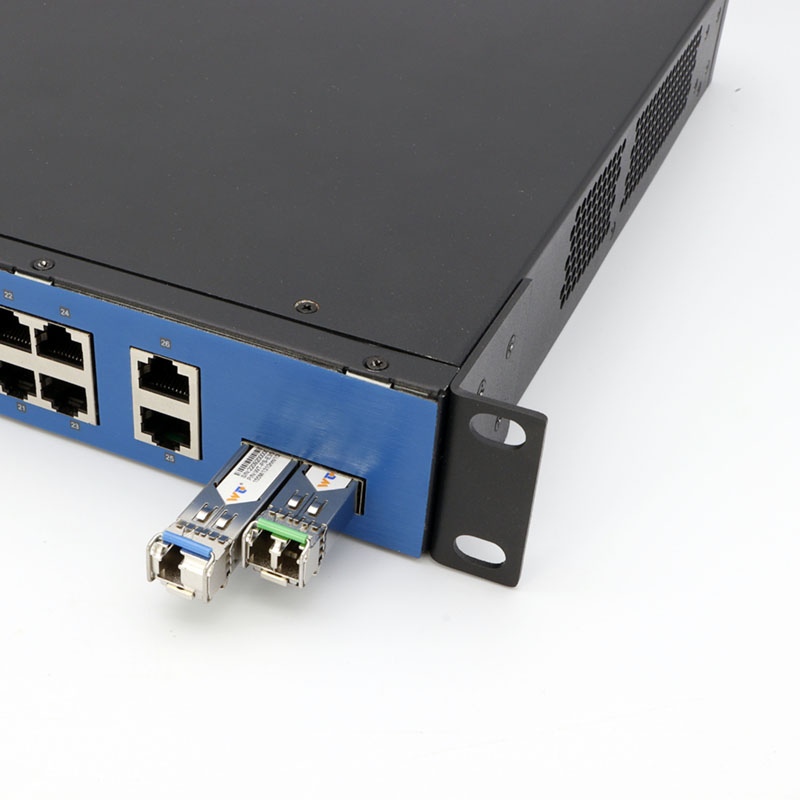

Gigabit fiber port: 1,000 Mbps

Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported, transmission distance 0-100 m, POE power supply supported by 24 downlink ports.

LED indicator: PWR, Link/ACT, POE

Power source requirement

Input voltage: AC220V

Power consumption: 400W

Physical properties

Enclosure: Metal, IP30-rated protection

Size: 440*300*44 mm

Weight: 4380g

Mounting method: Rack-mounted

Environmental restrictions

Working temperature: -20 ~ 75°C (-4 ~ 167°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMI: FCC Part 15/CISPR22 (EN55022): Class A

EMS:

IEC61000-4-2 (ESD) level 3, IEC 61000-4-3 (RS) level 3, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5 (Surge) level 4, IEC 61000-4-6 (CS) level 3

Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32

Note: Please go to the official website of Wintop Optical for the latest certification status.

MTBF (mean time between failures)

Time: 500,000 h

Warranty

Quality assurance: 3 years

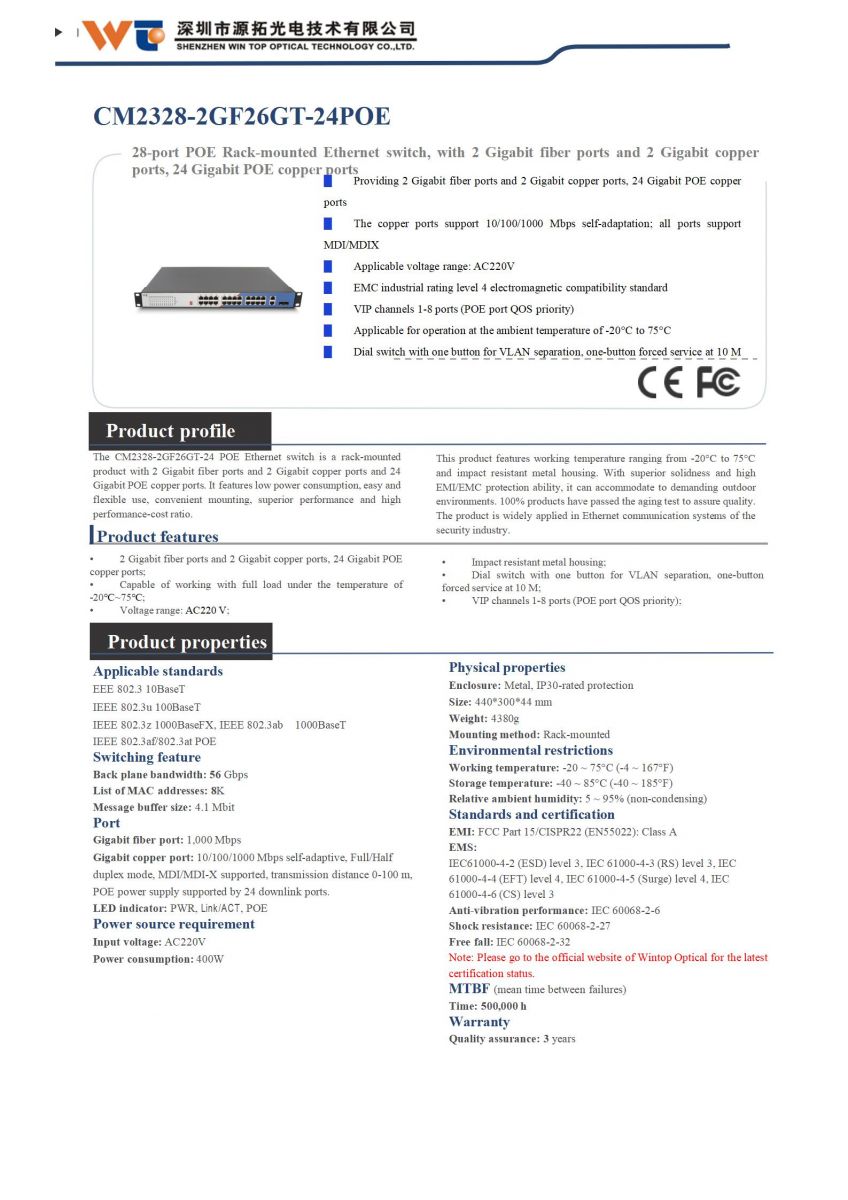

Related Documents Specification
