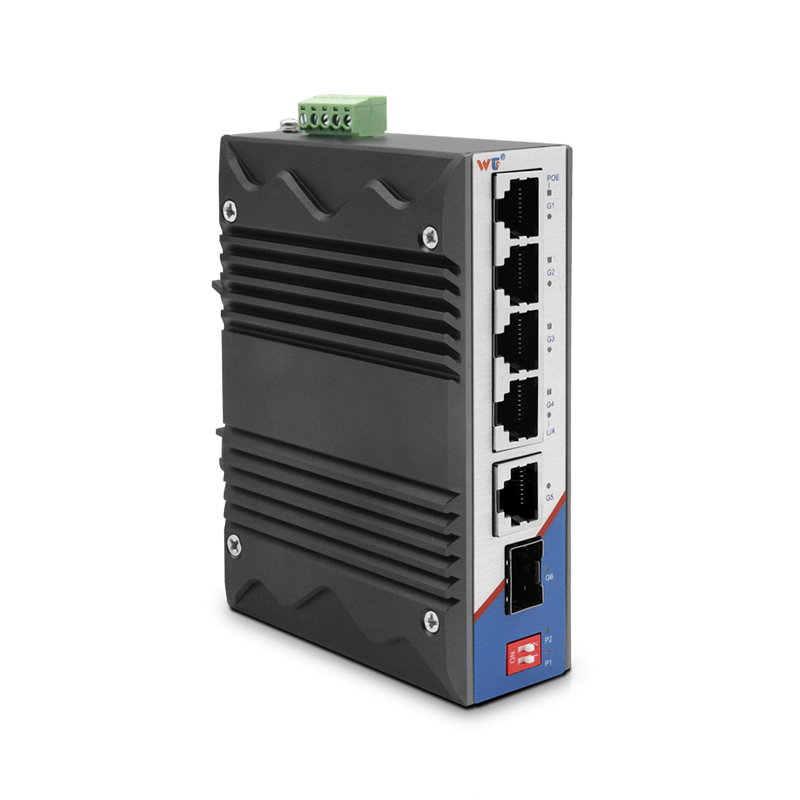

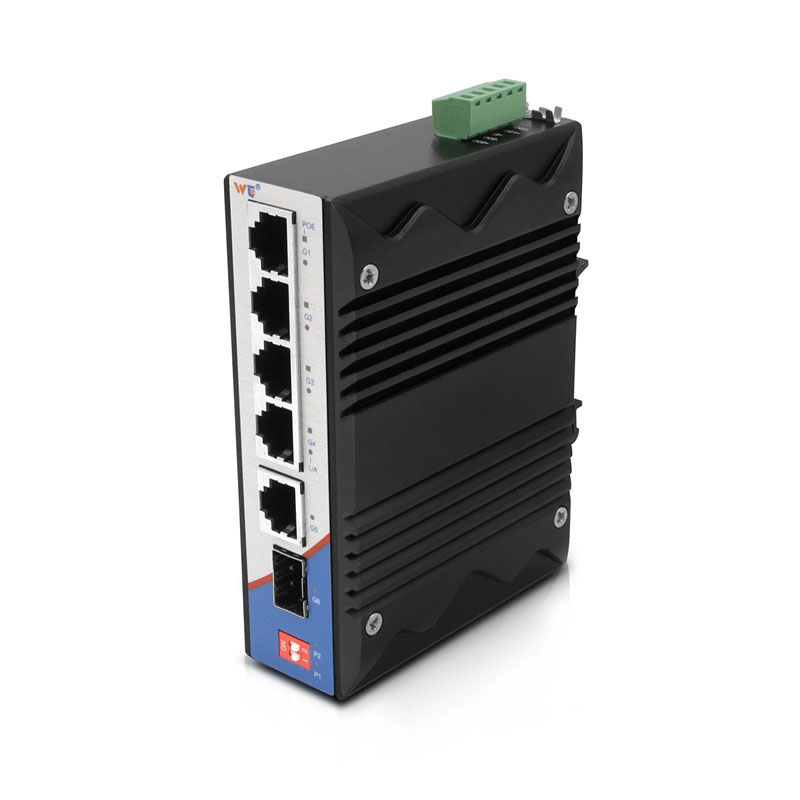

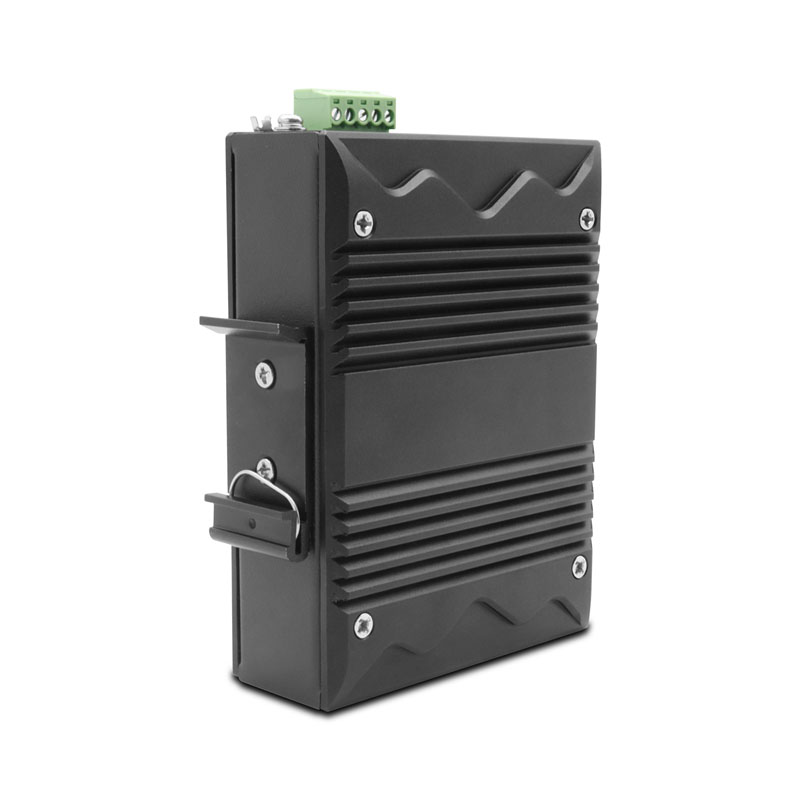

RS236-1GF5GT-4POE Smart Dial POE Switch

 Applicable standards

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseT

IEEE 802.3z 1000BaseFX, IEEE 802.3ab 1000BaseT

IEEE 802.3af/802.3at POE

Switching feature

Back plane bandwidth: 12 Gbps

List of MAC addresses: 2K

Chip buffer size: 12 KByte

Port

Fiber port: 1000 Mbps (port type: LC)

Copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported, 4 Gigabit copper ports Support POE power supply

LED indicator: P1, P2, L/A, POE

Power source requirement

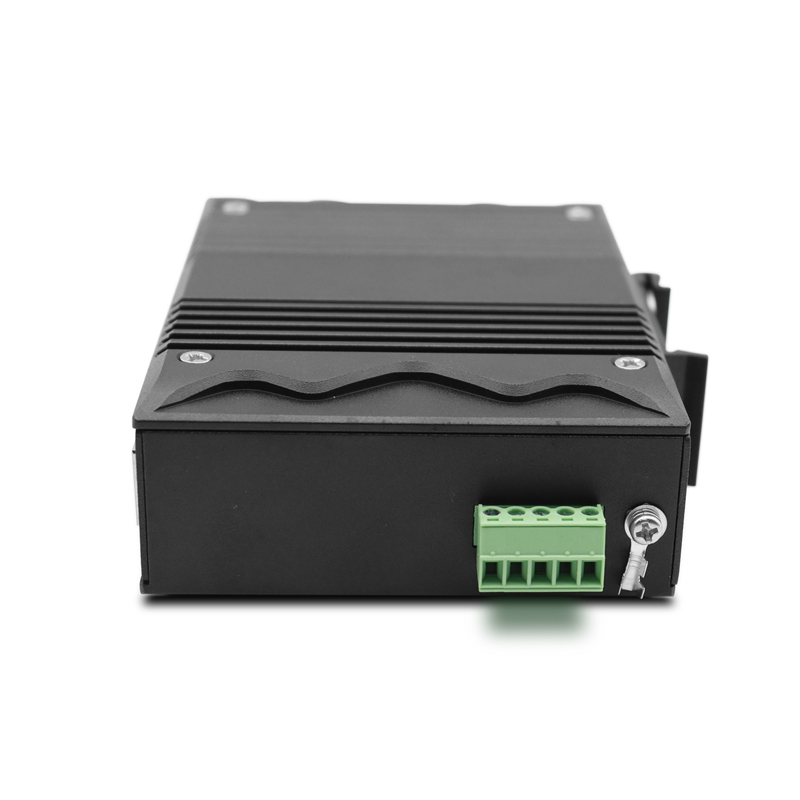

Input voltage: DC48~57V (redundancy)

Full-load power consumption: 2.5W (excluding POE)

Physical properties

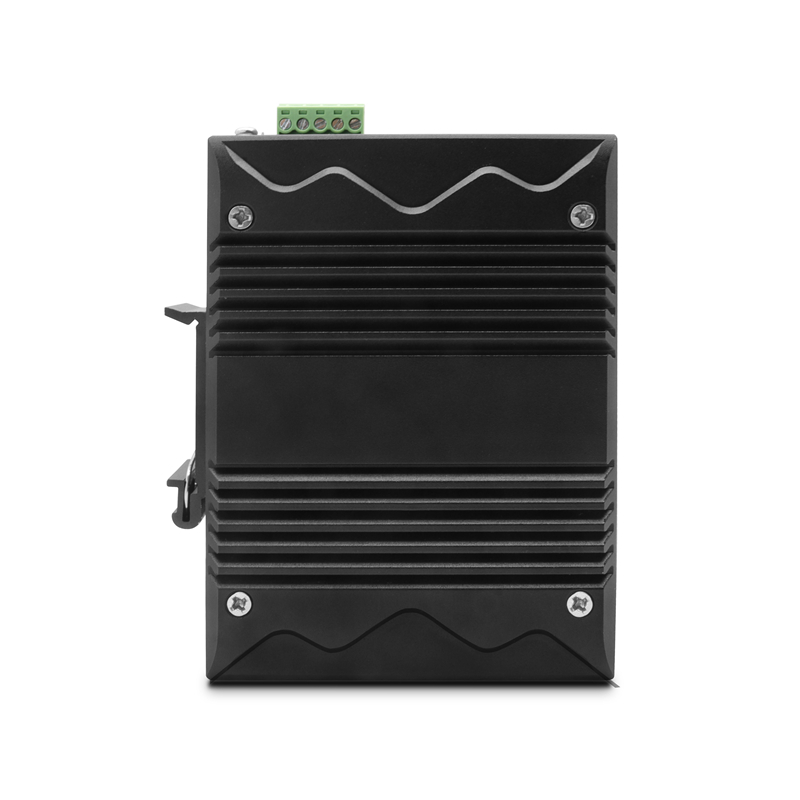

Enclosure: Aluminum enclosure, IP40-rated protection

Size: 116 x 85 x 37 mm

Weight: 430 g

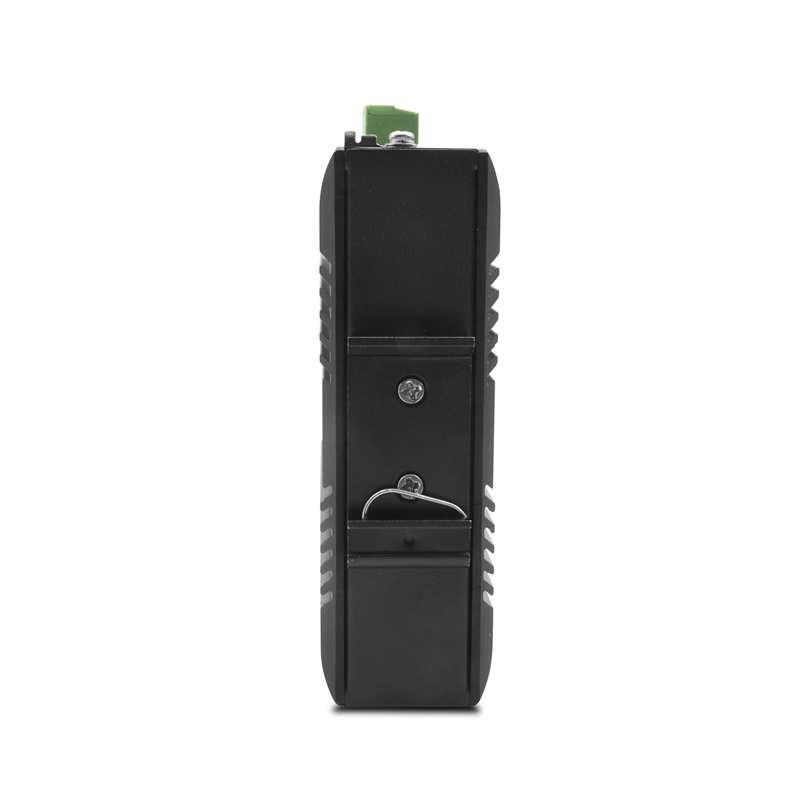

Mounting method: Guide rail type

Environmental restrictions

Working temperature: -40 ~ 85°C (-40 ~ 185°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMS:

IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4

Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32

Note: Please go to the official website of Wintop Optical for the latest certification status.

MTBF (mean time between failures)

Time: 500000 h

Warranty

Quality assurance: 5 years

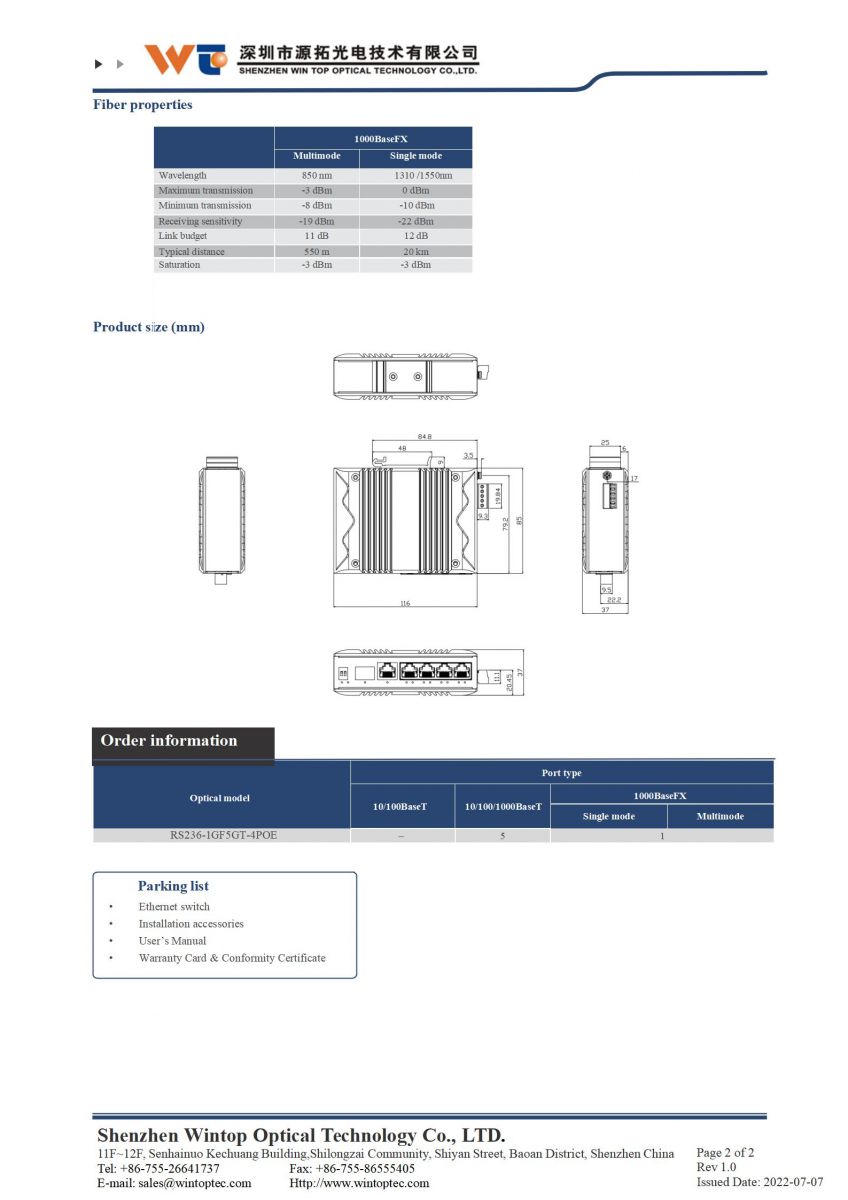

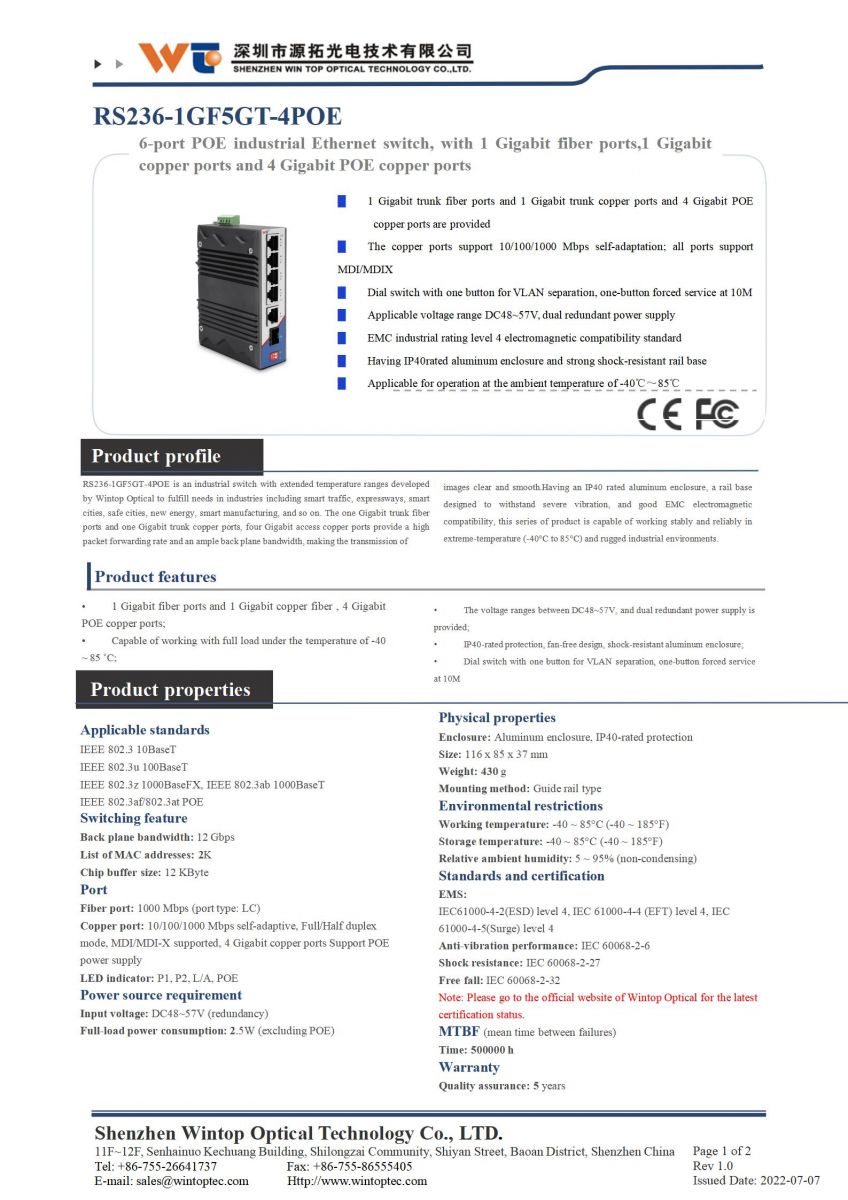

Related Documents Specification
