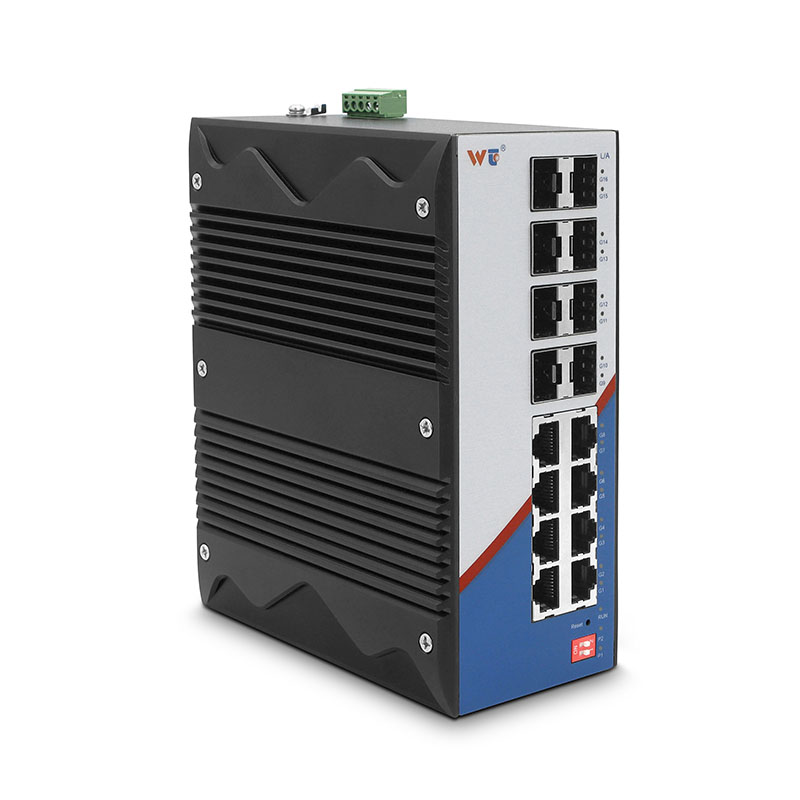

RS6000-8GF8GT Layer 2 DIN-rail Mounted Managed Ethemet Switch
model: RS6000-8GF8GT
16-Port DIN-rail managed industrial Ethernet switch, with 8xGigabit fiber ports and 8xGigabit copper ports




Applicable standards
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseT
IEEE 802.3z 1000BaseFX and 1000BaseT
IEEE 802.3x flow control
IEEE 802.1d-2004 STP protocol
IEEE 802.1w RSTP protocol
IEEE 802.1p Qos
IEEE 802.1q VLAN
Protocol
IGMP Snooping,SNMPv1/v2c/v3,TFTP,NTP,SNTP, RMON, HTTP,HTTPS,SSH,Telnet,Syslog,LLDP,LACP,WT-Ring,STP,
RSTP,MSTP,ERPS,EEE
Switching feature
Qos queue: 8 VLAN-ID: 1-4094
Back plane bandwidth: 32Gbps List of MAC addresses: 8K
Message buffer size: 4.1Mbit
Port
Fiber port: 1000 Mbps
Copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.
LED indicator: P1, P2, RUN, L/A
Power source requirement
Input voltage: DC 9~48 V (redundancy)
Full-load power consumption: 14.5W
Physical properties
Enclosure: Aluminum enclosure, IP40-rated protection
Size: 160× 128 × 70mm
Weight: 1250 g
Mounting method: Guide rail type
Environmental restrictions
Working temperature: -40 ~ 85°C (-40 ~ 185°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Relative ambient humidity: 5 ~ 95% (non-condensing)
Standards and certification
EMS:
IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4
Anti-vibration performance: IEC 60068-2-6
Shock resistance: IEC 60068-2-27
Free fall: IEC 60068-2-32
MTBF (mean time between failures)
Time: 500000 h
Warranty
Quality assurance: 5 years

RS6112-4GF8GT-8POE Layer 2 DIN-rail Mounted Managed Ethemet Switch
12-Port DIN-rail managed industrial Ethernet switch, with 4xGigabit fiber ports and 8xGigabit POE copper ports

RS6112-4GF8GT Layer 2 DIN-rail Mounted Managed Ethemet Switch
12-Port DIN-rail managed industrial Ethernet switch, with 4xGigabit fiber ports and 8xGigabit copper ports

RS6110-2GF8GT-8POE Layer 2 DIN-rail Mounted Managed Ethemet Switch
10-Port DIN-rail managed industrial Ethernet switch, with 2xGigabit fiber ports and 8xGigabit POE copper ports

RS6110-2GF8GT Layer 2 DIN-rail Mounted Managed Ethemet Switch
10-Port DIN-rail managed industrial Ethernet switch, with 2xGigabit fiber ports and 8xGigabit copper ports

RS6000-4GF16GT Layer 2 DIN-rail Mounted Managed Ethemet Switch
20-Port DIN-rail managed industrial Ethernet switch, with 4xGigabit fiber ports and 16xGigabit copper ports

RS6000-4GF8GT Layer 2 DIN-rail Mounted Managed Ethemet Switch
12-Port DIN-rail managed industrial Ethernet switch, with 4xGigabit fiber ports and 8xGigabit copper ports
