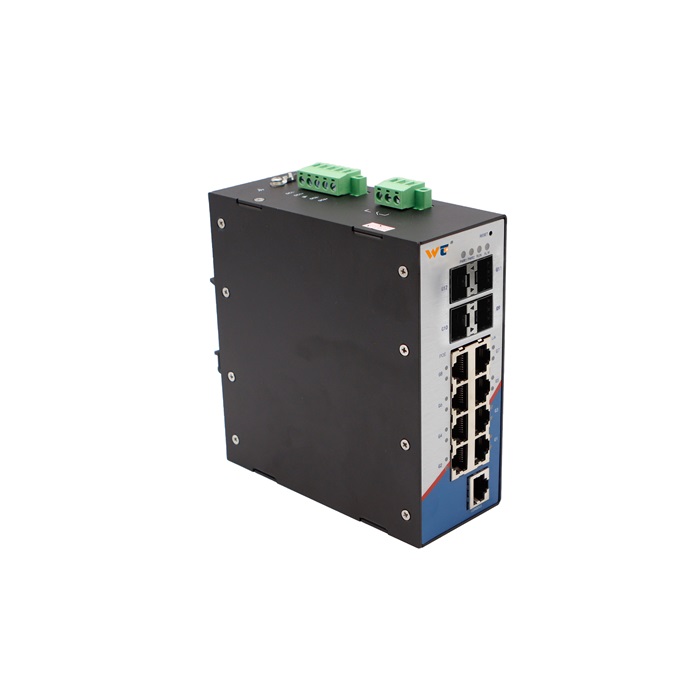

RS6112-4GF8GT-8POE Layer 2 DIN-rail Mounted Managed Ethemet Switch

 Applicable standards

IEEE 802.3 10BaseT   IEEE 802.3u 100BaseT

IEEE 802.3z/ab       IEEE 802.3x flow control

IEEE 802.1d-2004 STP protocol

IEEE 802.1w RSTP protocol

IEEE 802.1p Qos     IEEE 802.1q VLAN

IEEE 802.3ad  IEEE 802.3af/802.3at POE

Protocols

IGMP Snooping,SNMPv1/v2c/v3,TFTP,NTP,SNTP, RMON, HTTP,HTTPS,SSH,Telnet,Syslog,LLDP,LACP,WT-Ring,STP,

RSTP,EEE

Switching feature

Qos queue: 8 VLAN-ID: 1-4094

Back plane bandwidth: 24 Gbps List of MAC addresses: 8K

Message buffer size: 4Mbit

Port

Console port: RS-232 (port type: RJ45 slot)

Fiber port: 1000Mbps (port type: SFP slot)

Copper port: 10/100/1000Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.

LED indicator: PWR, ALM, RUN, Link/Act, SPD,POE

Power source requirement

Input voltage: Supports dual power redundant, DC48~52V

Physical properties

Enclosure: Iron shell, IP40-rated protection

Size: 135mm*128mm*55mm

Weight: 850 g

Mounting method: DIN rail

Environmental restrictions

Working temperature: -40 ~ 75°C (-40 ~ 167°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMI:

FCC Part 15/CISPR22?EN55022??Class A

EMS:

IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4,       IEC 61000-4-6 (CS) Level 3

Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32

Certification: CE, FCC, RoHS

MTBF (mean time between failures)

Time: 500000 h

Warranty

Quality assurance: 5 years
