10G Converter

model： F2F-WSFP+/F2F-WXFP

10G Converter is connection between fiber to fiber 10Gbps equipment function as fiber media converter ,or as fiber repeater for long distance transmission.OEO for network backbone(SAN, LAN, MAN). Support SDH/SONET STM-64/OC-192?10G fiber channel?10G Ethernet etcCan be applied in Telecommunication room, R&D laboratory, Data center, and etc. 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.Support Loopback

Now Consulting

Description Technical parameters Applications Download Related Products

Features

nSupport Loopback

nSupport Jumbo Frame

nSupport hot plugging

nTransparent Transport and very low delay

n3R function?Regenration , Reshaping , Retiming ?

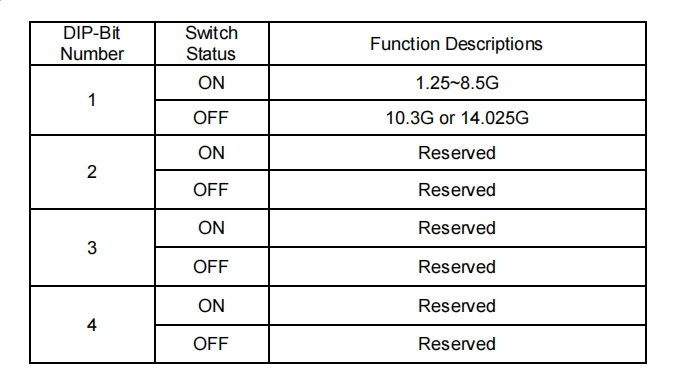

DIP switch instructions

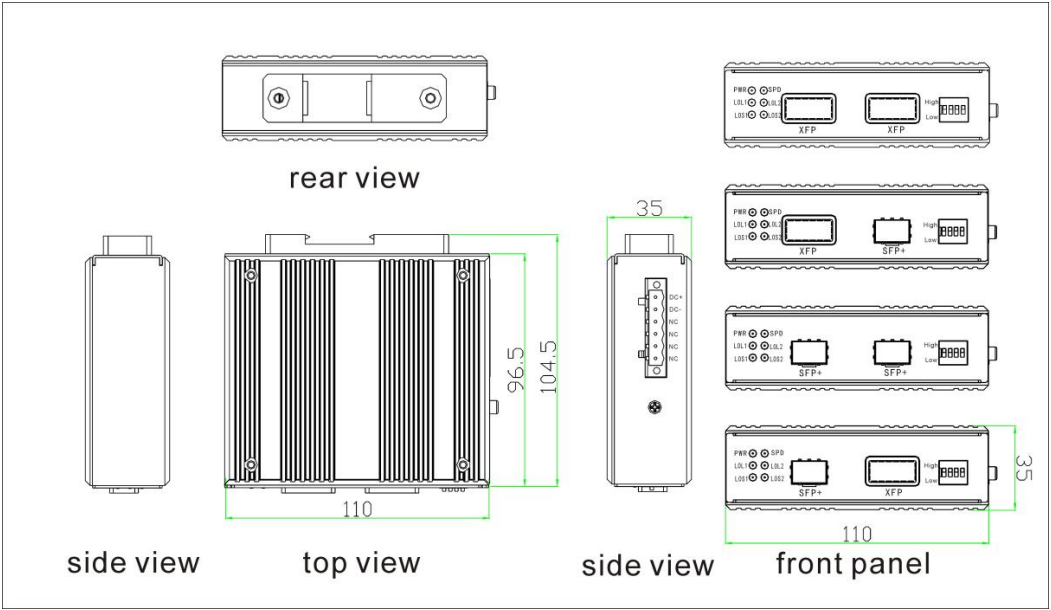

Dimension

Unit (mm)

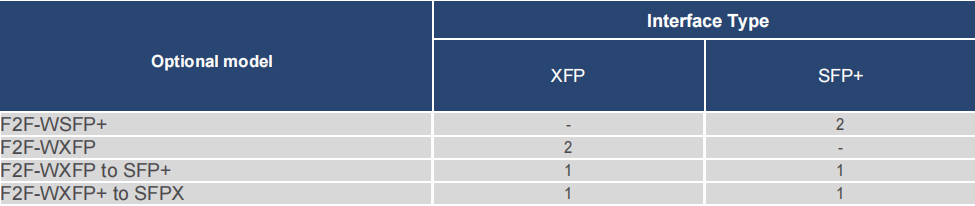

Order information

Packaging List

• Repeater

• User’s Manual

• Warranty card

• Certificate

Label： 10G OEO

Products properties

Interface	Type A : XFP to XFP Type B : XFP to SFP+ Type C : SFP+ to XFP Type D: SFP+ to SFP+ LED Indicator:PWR,SPD, LOS1, LOL2,LOS2, LOL2
Maximum Packet Forwarding Rate	14,880,950/S
Transmission Speed	8.5Gb/s-11.7Gb/s
Transmission Distance	XFP module: Up to 80Km SFP+ module: up to 80km
Dimension	Standalone ? 110(L)96.5(W)35(H)mm
Power requirement	Standalone: DC12V~48V Power consumption: ≤4W
Environment	Operating Temperature?-40 ~ 85 ? ( - 40 ~ 185 °F) Storage Temperature?-40 ~ 85 ? ( - 40 ~ 185 °F) Ambient Relative Humidity?5 ~ 95% (non-condensing)
Protocols	8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS

For detail, please check the datasheet in "Download".
