10G Converter (Desktop)
model: F2F-WXFP
10G Converter is connection between fiber to fiber 10Gbps equipment function as fiber media converter ,or as fiber repeater for long distance transmission.OEO for network backbone(SAN, LAN, MAN). Support SDH/SONET STM-64/OC-192?10G fiber channel?10G Ethernet etcCan be applied in Telecommunication room, R&D laboratory, Data center, and etc. 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.




Features
nSupport Jumbo Frame
nSupport hot plugging
nTransparent Transport and very low delay
n3R function?Regenration , Reshaping , Retiming ?
DIP switch instructions
DIP-Bit Number |
Switch Status |
Function Descriptions |
1 |
ON |
10.3G or 14.025G |
OFF |
1.25~8.5G |
|
2 |
ON |
No Function |
OFF |
No Function |
|
3 |
ON |
No Function |
OFF |
No Function |
|
4 |
ON |
No Function |
OFF |
No Function |

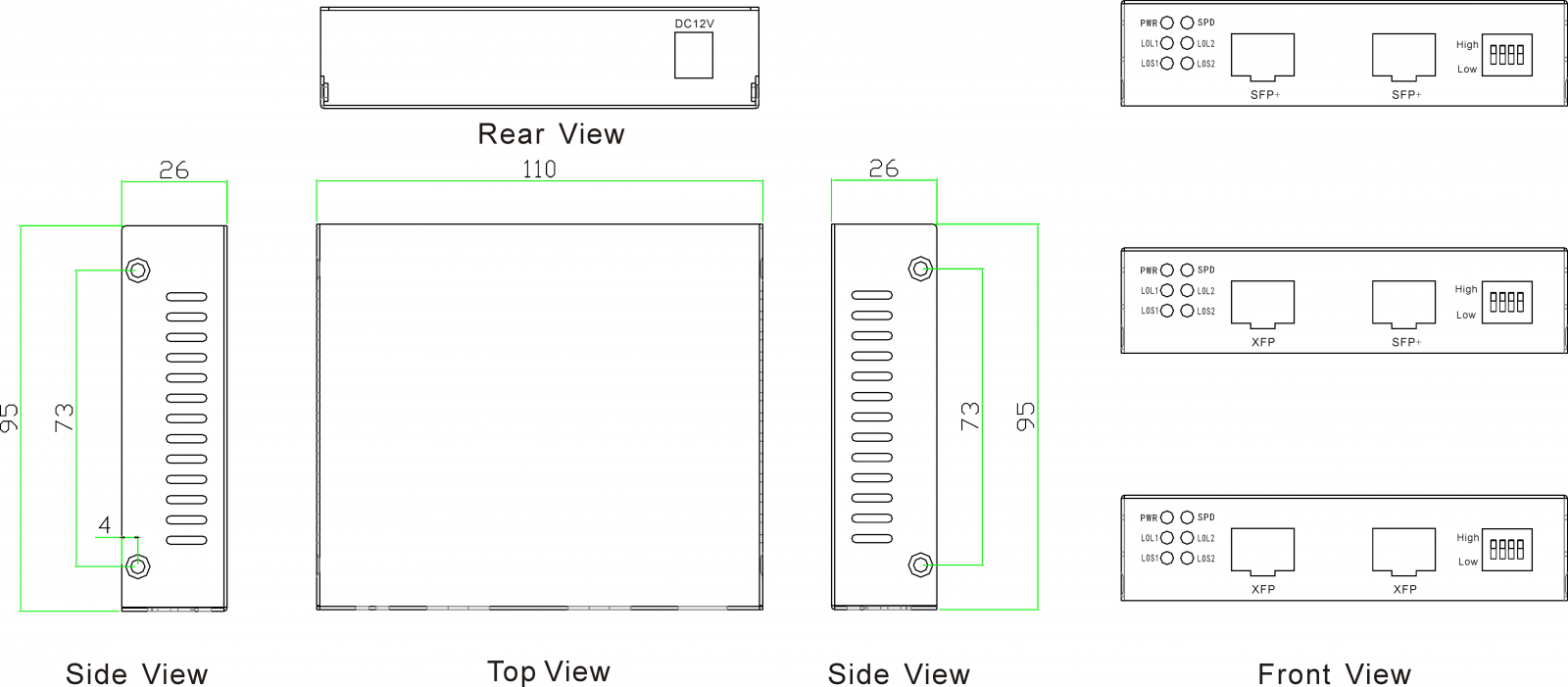

Dimension
Unit (mm)
Order information
Optional model |
IInterface Type
|
|
XFP |
SFP+ |
|
F2F-WXFP |
2 |
- |
F2F-WXFP+ |
- |
2 |
F2F-WXFP to SFP+ |
1 |
1 |
F2F-WXFP+ to SFPX |
1 |
1 |
Packaging List
• Repeater
• User’s Manual
• Warranty card
Interface
|
Type A : XFP to XFP
Type B : XFP to SFP+
Type C : SFP+ to XFP
Type D: SFP+ to SFP+
LED Indicator:PWR,SPD, LOS1, LOL2,LOS2, LOL2
|
Maximum Packet Forwarding Rate
|
14,880,950/S
|
Transmission Speed
|
8.5Gb/s-11.7Gb/s
|
Transmission Distance
|
XFP module: Up to 80Km
SFP+ module: up to 80km
|
Dimension
|
Standalone 110(L)*95(W)*326(H)mm
|
Power requirement |
Standalone: DC12V~48V
Power consumption: ≤4W
|
Environment
|
Operating Temperature?-40 ~ 85 ? ( - 20~ 60 °F)
Storage Temperature?-40 ~ 85 ? ( - 40 ~ 85 °F)
Ambient Relative Humidity?5 ~ 95% (non-condensing)
|
Protocols
|
8.5G Fiber Channel
SONET OC-192, SDH STM-64 (9.95Gbps)
10G WAN (10Gbps)
10G LAN (10.31Gbps)
OTN OTU-2 (G.709) (10.70Gbps)
10G LAN with 255/237 FEC coding (11.09Gbps)
10G Fiber Channel (11.32Gbps)
10G POS
|
