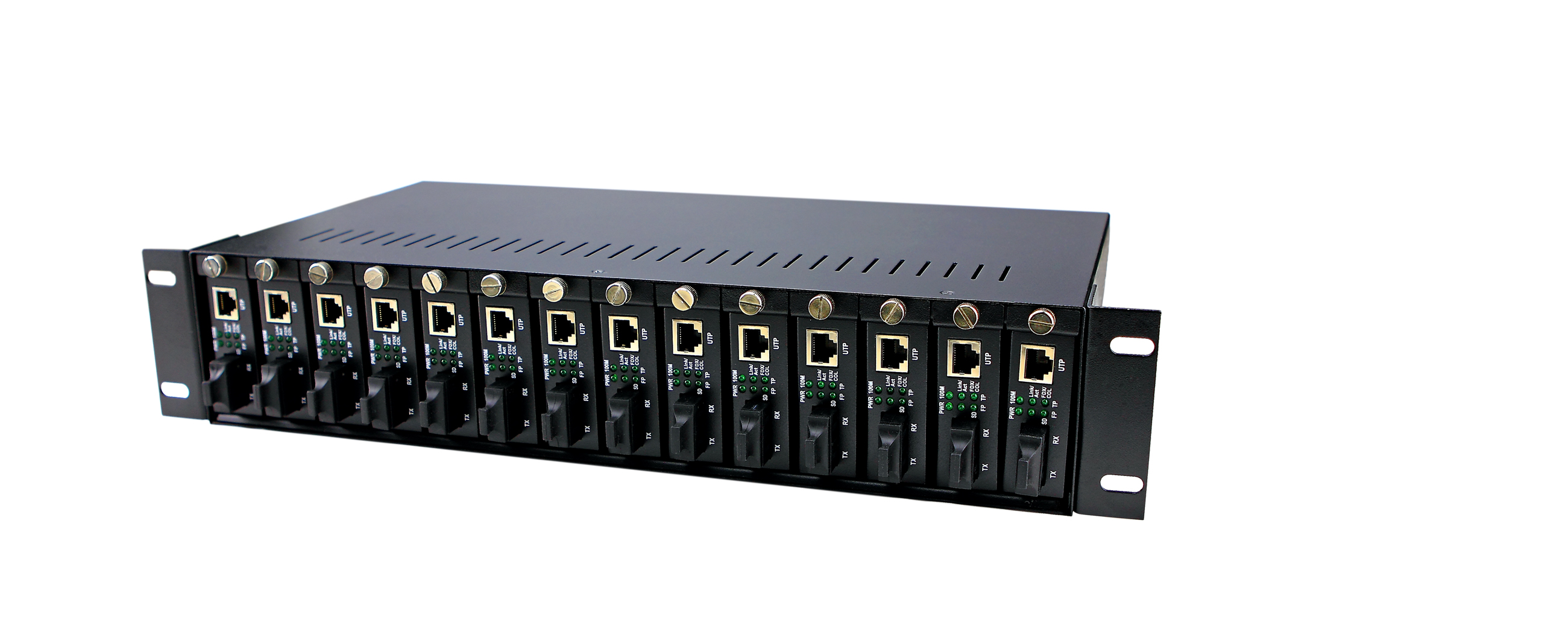

14 slots Unmanaged Media Converter Chassis

PRODUCT OVERVIEW

We have two types of rack-mounted chassis for unmanaged media converters : 2-U 14 slots media converter chassis.The 14 slots media converter chassis supports plug-and–play installation of stand-alone media converters convert modules ,can hold at most 14 pieces media converters.

SPECIFICATIONS

Number of slots :14 ;

Media converters adapted :

14 slots chassis : 10/100M or 1000M or 10/100/1000M stand-alone media converters

Material: aluminium alloy or steel

Power in :AC90 V~230 V ; OR DC 48V

Power out :DC 5V , 12A

Diameter of DC plug :2.5/5.5 mm

Max Power Consumption:120W

Ripple≤50 Mv

Noise :≤50 Mv

Protection of power supply :circuit-breaker when overvoltage ;circuit-breaker when

overflow ;circuit-breaker  when short circuit

Operating Temperature :-10?~50?

Storage Temperature:-20?~85?

Humidity: 5%~95%

Dimensions:L485 ,W231,H90 mm   ;19 inches  2U
