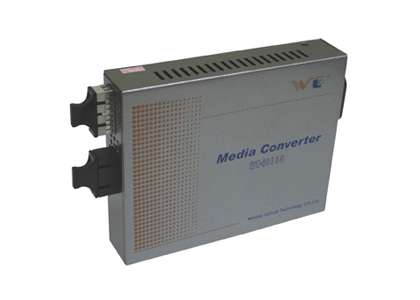

SM to MM converter

model： SM to MM converter

MM to SM Fiber Mode Converter Specification

Description Technical parameters Applications Download Related Products

Label： 10/100M Media Converter

Outlooking and Features

?Fiber A: multi - fiber port

Fiber B: single -fiber port

?LED: power*2 LINK A?LINK B

?Standard: IEEE 802.3

?Port: SC?LC

?Power: AC220V or DC 48V/1A 2A

?Operating temperature: 0?~70?

?Operating humidity: 5%~90%

?Supporting full duplex and half-duplex transmission

?Demension: 26mm (H)*70mm (W)*95mm (D)

?Single mode :1300nm?1310nm?1550nm

?Multi mode: 1310nm?1300nm?850nm

?Transmission fiber:

Multi mode:50/125?62.5/125 or 100/140um

Single mode:8.3/125,8.7/125,9/125 or 10/125um

?Transmission distance:

Multi mode: 0?2Km

Single mode: 2~100Km
