PRODUCT FEATURES
l SFP+ package with LC connector
l 1310nm DFB Laser and PIN photo detector
l Up to 20km transmission on SMF
l Power dissipation < 1W
l LVPECL compatible data input/output interface
l Low EMI and excellent ESD protection
l laser safety standard IEC-60825 compliant
l Compatible with RoHS
l Compatible with SFF8472
APPLICATIONS
lEthernet
lFiber Channel
Outline drawing (mm)
.png)
Optical Characteristics
(Ambient Operating Temperature -5°C to +70°C, Vcc =3.3 V)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
Transmitter Section |
|||||
|
Center Wavelength |
lo |
1290 |
1310 |
1330 |
nm |
|
Side-Mode Suppression Ratio |
SMSR |
35 |
- |
- |
dB |
|
Average Output Power |
Po |
-6 |
- |
+0.5 |
dBm |
|
Extinction Ratio |
Er |
3.5 |
- |
- |
dB |
|
Dispersion Penalty |
|
|
|
3.2 |
dB |
|
Relative Intensity Noise |
RIN12OMA |
|
|
-128 |
dB/Hz |
|
Total jitter |
Tj |
IEEE 802.3ae |
|
||
|
Receiver Section |
|||||
|
Center Wavelength |
lo |
|
1310 |
|
nm |
|
Receiver Sensitivity |
Rsen |
|
|
-13 |
dBm |
|
Stressed Sensitivity |
Rsen |
|
|
-13.5 |
dBm |
|
Receiver Overload |
Rov |
-3 |
|
|
dBm |
|
Return Loss |
|
12 |
|
|
dB |
|
LOS Assert |
LOSA |
-28 |
|
|
dBm |
|
LOS Dessert |
LOSD |
|
|
-14 |
dBm |
|
LOS Hysteresis |
|
0.5 |
|
4 |
|
For detail, please check the datasheet in "Download".
WT-SFP+-SR
10Gb/s 850nm SFP+ Transceiver
WT-SFP+-ER
10Gb/s 1550nm SFP+ Transceiver
WT-SFP+-ZR
10Gb/s 1550nm SFP+ Transceiver
WT-SFP+-6G-15KM
6Gb/s 1310nm SFP+ Transceiver
WT-SFP+-6G-2KM
6Gb/s 1310nm SFP+ Transceiver
YT-SFP+-LR

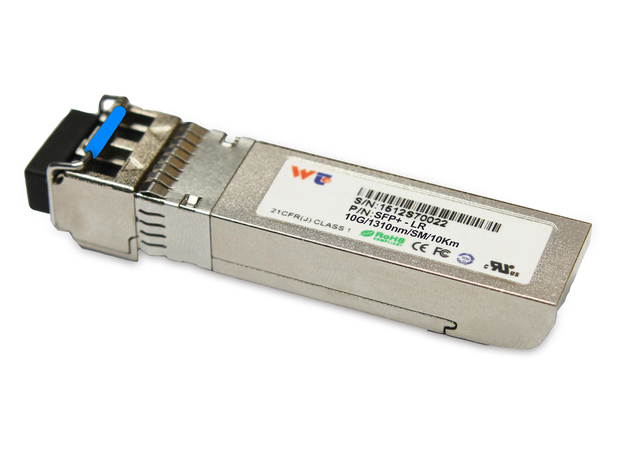

Product Specification YT-SFP+-LR 10Gbps 1310nm SFP+ Optical Transceiver, 10Km
