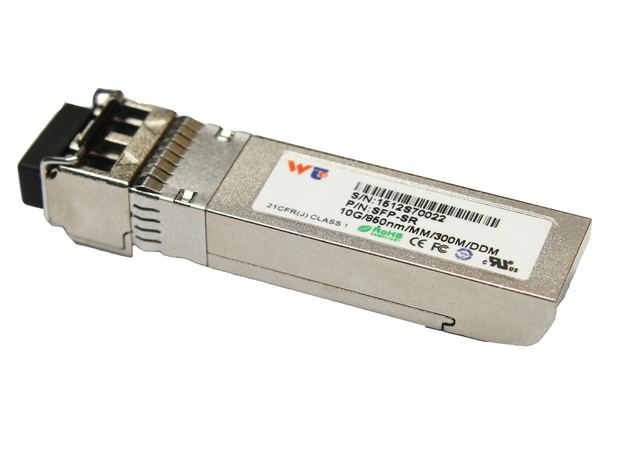

PRODUCT FEATURES
l SFP+ package with LC connector
l 850nm VCSEL Laser and PIN photo detector
l Up to 300m transmission on 2000MHz-km MMF
l Power dissipation < 1W
l Maximum link length of 80km
l LVPECL compatible data input/output interface
lLow EMI and excellent ESD protection
llaser safety standard IEC-60825 compliant
l Compatible with RoHS
lCompatible with SFF8472
APPLICATIONS
l Ethernet
l Fiber Channel
Outline drawing (mm)
.png)
Optical Characteristics
(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
Transmitter Section |
|||||
|
Center Wavelength |
lo |
840 |
850 |
860 |
nm |
|
RMS Spectral Width |
Dl |
- |
- |
0.45 |
dB |
|
Average Output Power |
Po |
-5 |
- |
-1 |
dBm |
|
Extinction Ratio |
Er |
3.0 |
- |
- |
dB |
|
Dispersion Penalty |
|
|
|
3.9 |
dB |
|
Relative Intensity Noise |
RIN12OMA |
|
|
-128 |
dB/Hz |
|
Total jitter |
Tj |
IEEE 802.3ae |
|
||
|
Receiver Section |
|||||
|
Center Wavelength |
lo |
|
850 |
|
nm |
|
Receiver Sensitivity |
Rsen |
|
|
-11.5 |
dBm |
|
Stressed Sensitivity |
Rsen |
|
|
-10.5 |
dBm |
|
Receiver Overload |
Rov |
0 |
|
|
dBm |
|
Return Loss |
|
12 |
|
|
dB |
|
LOS Assert |
LOSA |
-17 |
|
|
dBm |
|
LOS Dessert |
LOSD |
|
|
-15 |
dBm |
|
LOS Hysteresis |
|
0.5 |
|
4 |
|
For detail, please check the datasheet in "Download".
