Feature

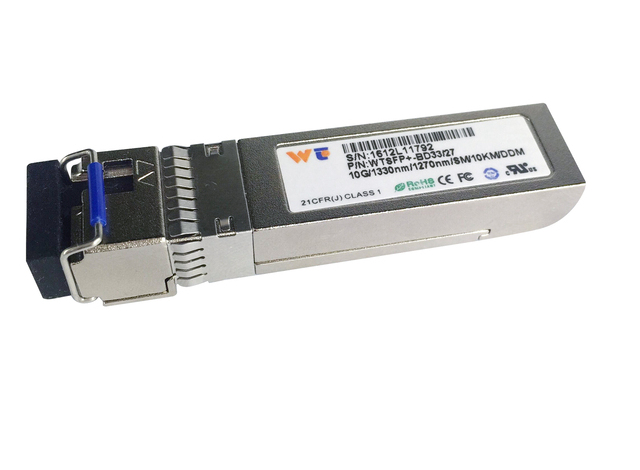

lSFP+ package with LC connector
l1270nm(1330nm) DFB Laser and APD photodetector
lUp to 60Km transmission on SMF
lUp to 11.3Gbps Data Links
lSupport dual CDR in TX and RX channel(optional)
l+3.3V single power supply
lPower dissipation<1.5W
l2-wire interface with integrated Digital Diagnostic monitoring
lLow EMI and excellent ESD protection
llaser safety standard IEC-60825 compliant
lCompatible with RoHS
lCompliant with SFF-8472 SFP+ MSA
lCompliant to SFP+ SFF-8431 and SFF-8432
Application
lEthernet
lTelecom
lFiber Channel
Outline drawing (mm)
.png)
Optical Characteristics
(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
|
Transmitter Section |
||||||
|
Center Wavelength |
Tx 1270 |
lo |
1260 |
1270 |
1280 |
nm |
|
Tx 1330 |
1320 |
1330 |
1340 |
|||
|
Spectral Width(-20dB) |
Tx 1270 |
Dl |
|
|
1 |
nm |
|
Tx 1330 |
|
|
1 |
|||
|
Average Output Power |
Tx 1270 |
Po |
+0 |
|
+5 |
dBm |
|
Tx 1330 |
+0 |
|
+5 |
|||
|
Extinction Ratio |
Er |
3.5 |
|
|
dB |
|
|
Side-Mode Suppression Ratio |
SMSR |
35 |
|
|
dB |
|
|
Total jitter |
Tj |
IEEE 802.3ae |
|
|||
|
Receiver Section |
||||||
|
Center Wavelength |
Rx 1330 |
lo |
1320 |
1330 |
1340 |
nm |
|
Rx 1270 |
1260 |
1270 |
1280 |
|||
|
Receiver Sensitivity |
Rsen |
|
|
-22 |
dBm |
|
|
Receiver Overload |
Rov |
-4 |
|
|
dBm |
|
|
Return Loss |
|
12 |
|
|
dB |
|
|
LOS Assert |
LOSA |
-30 |
|
|
dBm |
|
|
LOS Dessert |
LOSD |
|
|
-26 |
dBm |
|
|
LOS Hysteresis |
|
0.5 |
|
4 |
|
|
For detail, please check the datasheet in "Download".
