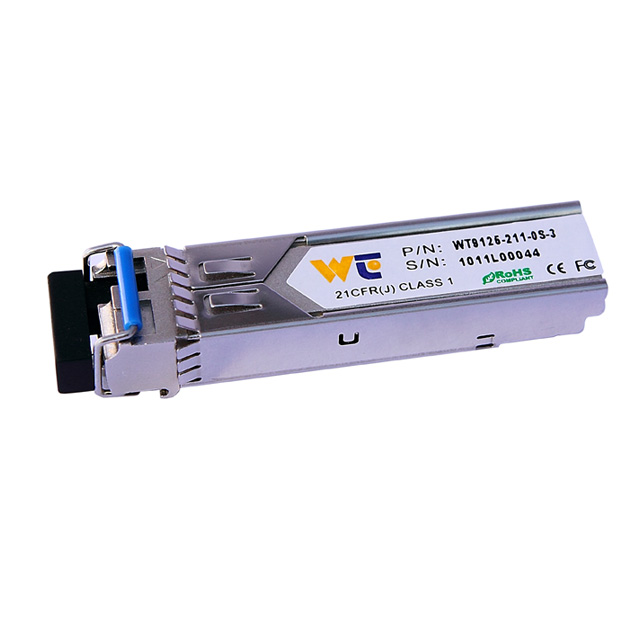

WTPS-G35-10L-D

model： WTPS-G35-10L-D

1.25Gbps BIDI SFP Optical Transceiver 10Km DDM

Description Technical parameters Applications Download Related Products

1. Feature:

l SFP package with LC connector

l 1310nm FP Laser and 1550nm PIN photodetector

l 1550nm DFB Laser and 1310nm PIN photodetector

l Up to 10Km transmission on SMF

l +3.3V single power supply

l LVPECL compatible data input/output interface

l Low EMI and excellent ESD protection

l laser safety standard IEC-60825 compliant

l Compatible with RoHS

l Compatible with SFF8472

2. Application?

l 1.25Gb/s 1000Base-LX Ethernet

l 1.06 Gb/s Fibre Channel Fiber Channel

Label： SFP

OpticalCharacteristics:

(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)

Parameter		Symbol	Min.	Typ.	Max.	Units
Transmitter Section
Center Wavelength	Tx 1310	lo	1260	1310	1360	nm
Center Wavelength	Tx 1550	lo	1540	1550	1560	nm
Spectral Width(RMS)	Tx 1310	Dl	-	-	4	nm
Spectral Width(RMS)	Tx 1550	Dl			1	nm
Average Output Power	Tx 1310	Po	-9	-	-3	dBm
Average Output Power	Tx 1550	Po	-9		-3	dBm
Extinction Ratio		Er	8	-		dB
Rise/Fall Time(20%~80%)		Tr/Tf			300	ps
Total jitter		Tj			0.43	UI
Optical Eye Diagram		IEEE 802.3z and ANSI Fibre Channel Compatible
Receiver Section
Center Wavelength	Rx 1550	lo	1500	1550	1600	nm
Center Wavelength	Rx 1310	lo	1260	1310	1360	nm
Receiver Sensitivity		Rsen			-22	dBm
