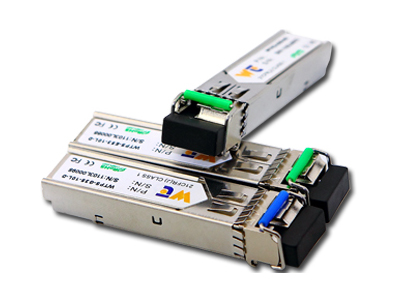

Bi-Di SFP transceiver

model： Bi-Di SFP transceiver

Overview: 1?SFP package with LC / SC connector 2?Single +3.3V Power Supply 3?Up to 120Km transmission with single-mode fiber

Now Consulting

Description Technical parameters Applications Download Related Products

SFP package with LC / SC connector

Single +3.3V Power Supply
Up to 120Km transmission with single-mode fiber
Compliant with Telcordia (Bellcore) GR-468-CORE
Eye Safety Designed to Meet Laser Class1,Compliant with IEC60825-1
RoHS Compliant Products Available

Label： SFP

Part No.	Package(bps/Hz)	Data Rate	Tx(nm)	Pout(dBm)	Rx	Sensitivity(dBm)	Temp °C	Reach	Other Option
WTPS-H45-60L	Bi-Di SFP	2.5G	1490nm DFB	0?5	PIN	≤-25	0-70°C	60km	DDM ROHS
WTPS-H54-60L	Bi-Di SFP	2.5G	1550nm DFB	0?5	PIN	≤-25	0-70°C	60km	DDM ROHS
WTPS-G45-80L-D	Bi-Di SFP	1.25G	1490nm DFB	0~5	PIN	≤-26	0-70°C	80km	DDM RoHS
WTPS-G54-80L-D	Bi-Di SFP	1.25G	1550nm DFB	0~5	PIN	≤-26	0-70°C	80km	DDM RoHS
WTPS-G35-40L-D	Bi-Di SFP	1.25G	1310nm FP	-5~0	PIN	≤-24	0-70°C	40km	DDM RoHS
WTPS-G53-40L-D	Bi-Di SFP	1.25G	1550nm DFB	-5~0	PIN	≤-24	0-70°C	40km	DDM RoHS
WTPS-G34-10L-D	Bi-Di SFP	1.25G	1310nm FP	-8~-3	PIN	≤-24	0-70°C	10km	DDM RoHS
WTPS-G43-10L-D	Bi-Di SFP	1.25G	1490nm DFB	-8~-3	PIN	≤-24	0-70°C	10km	DDM RoHS
WTPS-E45-1BL	Bi-Di SFP	155M	1490nm DFB	0~5	PIN	≤-37	0-70°C	120km	DDM RoHS
WTPS-E54-1B L	Bi-Di SFP	155M	1550nm DFB	0~5	PIN	≤-37	0-70°C	120km	DDM RoHS
WTPS-E35-20L-D	Bi-Di SFP	155M	1310nm FP	-15~-8	PIN	≤-32	0-70°C	20km	DDM RoHS
WTPS-E53-20L-D	Bi-Di SFP	155M	1550nm FP	-15~-8	PIN	≤-32	0-70°C	20km	DDM RoHS

WTPS-G34-40L-D 1310FP

1.25Gbps BIDI SFP Optical Transceiver 40K m,DDM

WTPS-G45-80L-D

1.25Gbps BIDI SFP Optical Transceiver 80K m,DDM

WTPS-G34-40L-D 1310DFB

1.25Gbps BIDI SFP Optical Transceiver 40K m,DDM

WTPS-G34-20L-D

1.25Gbps BIDI SFP Optical Transceiver 20K m, DDM

Industrial 10/100BASE-T Copper SFP Transceiver

SFP-100BASE-Tx Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They a...

2.5Gbps SFP Optical Transceiver 40Km

WTPD-H**9-40L*-D 2.5Gbps SFP Optical Transceiver 40K m DDM (1270-1610 nm)
