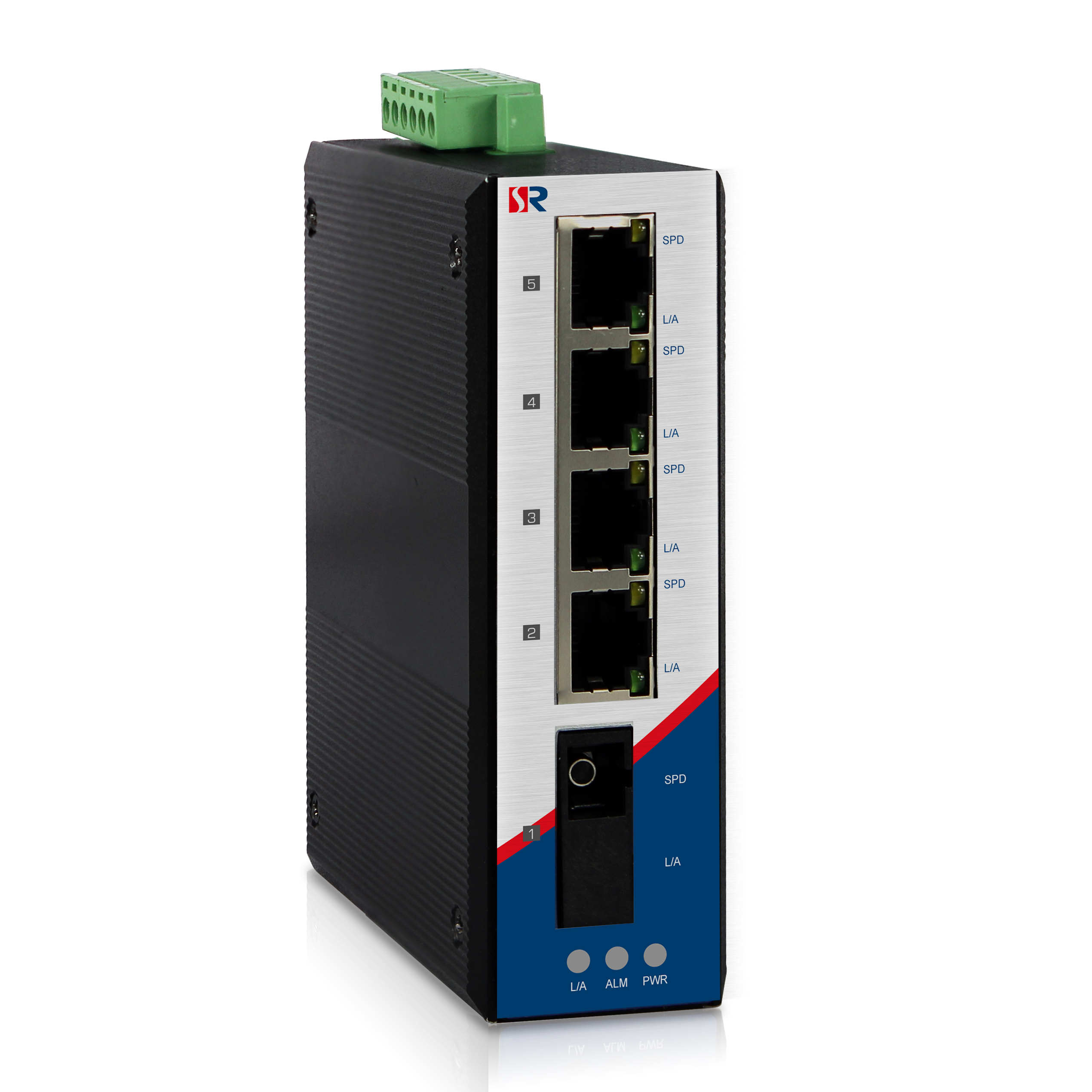

4 ports Industrial POE Switches
model： RS105-1F4T-AF
1 100M fiber ports + 410/100M Ethernet port
Features
n1×100BaseF(X)+4×10/100BaseT(X)
n10/100Mbps self-adaptation, supportsMDI/MDIX
nApplicable voltage range 12~75VDC
nElectric interface IEEE802.3af and IEEE802.3at standard POE
nIndustrial EMC-4 level with IP40
nApplicable to working environment:-40~85?

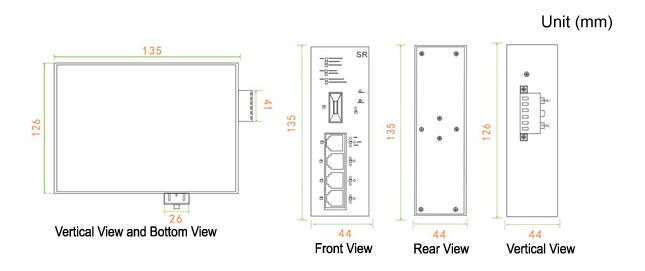

Dimension
Unit (mm)
Order information
|
|
Interface Type |
||||||
|
10/100BaseT |
10/100/1000BaseT |
100BaseFX |
1000BaseFX |
||||
|
Multimode Interface |
Single-Mode Interface |
Multimode Interface |
Single-Mode Interface |
||||
|
DS105-1F4E-D48-M-S EDS-P506A-4PoE-T |
4 |
– |
1SC |
– |
– |
– |
|
|
DS105-1F4E-D48-M-S-AF
|
4 POE |
– |
1SC |
– |
– |
– |
|
|
DS105-1F4E-D48-M-S-AT
|
4 POE+ |
– |
1SC |
– |
– |
– |
– |
|
DS105-1F4E-D48-S-S
|
4 |
– |
– |
– |
1SC |
– |
– |
|
DS105-1F4E-D48-S-S-AF
|
4 POE |
– |
– |
– |
1SC |
– |
– |
|
DS105-1F4E-D48-S-S-AT
|
4 POE+ |
– |
– |
– |
1SC |
– |
– |
|
DS105-1F4E-D48-P
|
4 |
– |
1 SFP |
– |
|||
|
DS105-1F4E-D48-P-AF
|
4 POE |
– |
1 SFP |
– |
|||
|
DS105-1F4E-D48-P-AT
|
4 POE+ |
– |
1 SFP |
– |
|||
Packaging List
• Ethernet Switch
• Installation Accessories
• User’s Manual
• Warranty Card
• Qualification Certificate
Products Properties
|
Interface |
Optical interface:100Mbps (Iace type?SC and SFP are available) Network interface:10/100Mbps self-adaptation, Full/Half duplex mode.support MDI/MDI-X?transmission distance common mode 0-100m? |
|
Switch Properties |
Backboard bandwidth: 1Gbps Message cache size:1Mb Backboard bandwidth:8K Oversized frame:10K Bytes |
|
Power Supply |
Input voltage:12~75V DC Input current:max2A |
|
Physical Properties |
Housing: metal, IP40 protection Dimension:135x126x44mm Weight: 600g Installation mode:Clip rail mounting |
|
Environmental Constraint |
Working temperature:-40 ~ 85°C(-40 ~ 185°F) Storage temperature:-40 ~ 85°C(-40 ~ 185°F) Environment relative humidity:5 ~ 95% (non-condensing) |
|
Standards and certification |
Electromagnetic interference?EMI?:FCC Part 15/CISPR22?EN55022??Class A Electromagnetic sensibility?EMS?: IEC61000-4-2 (ESD) class 4?IEC 61000-4-3 (RS) class 4?IEC 61000-4-4 (EFT) class 4? IEC 61000-4-5 (Surge) class 4?IEC 61000-4-6 (CS) class 4 Vibration resistance:IEC60068-2-6 Impact resistance:IEC60068-2-27 Free falling:IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state MTBF(mean time between failures) Time :500000h |
|
Quality Warranty |
5 years |
