POE Switches

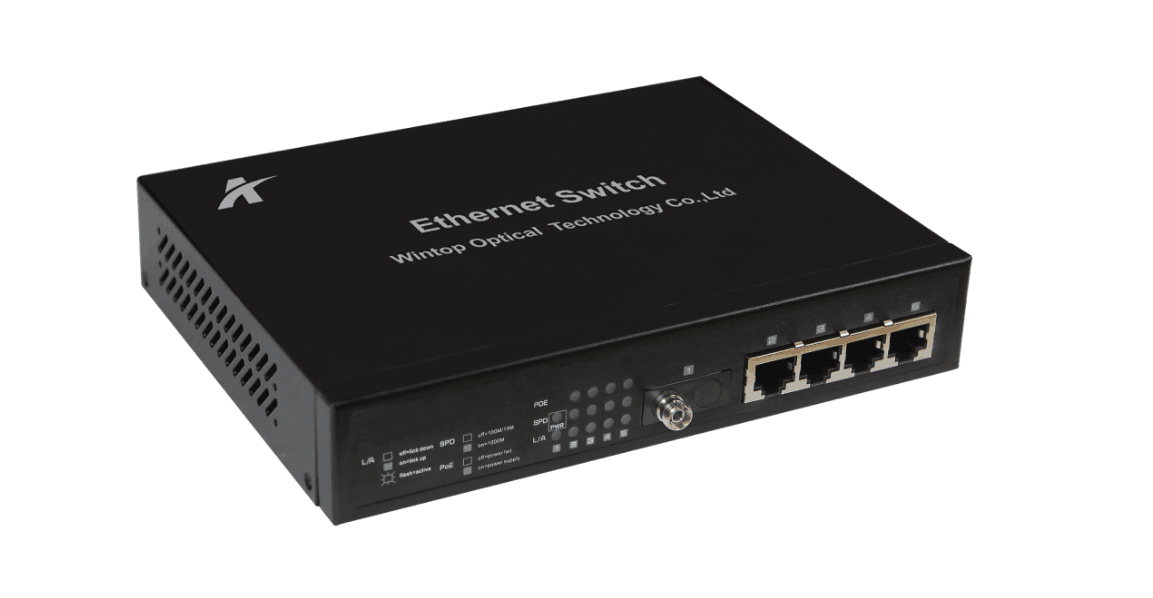

5-port Unmanaged PoE Fast Ethernet switch

model： YT-DS105-1GF4T-AF

With 4�10/100Base-T(X) P.S.E. ports 1�1000Base-FX

Description Technical parameters Applications Download Related Products

Features

n4 ×10/100Base-T(X) 1 ×1000Base-FX

nSupport P.S.E. based on IEEE802.3af/IEEE802.3at standard, up to 30Watts per port

nNo fan, Metal shell, Internal power, 100~240V AC

nAll port lighting protections (6KV)

nWorking temperature: -20??60?

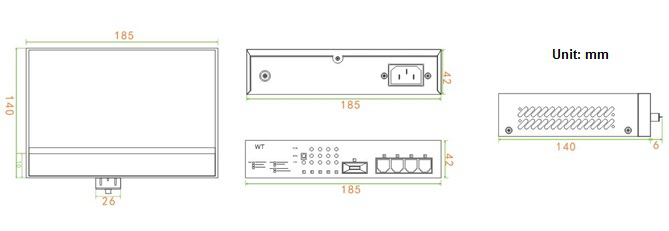

Dimension

Unit (mm)

Order information

Packaging List

• Ethernet Switch

• AC Power Cable

• Installation Accessories

• User’s Manual

• Warranty Card

• Qualification Certificate
