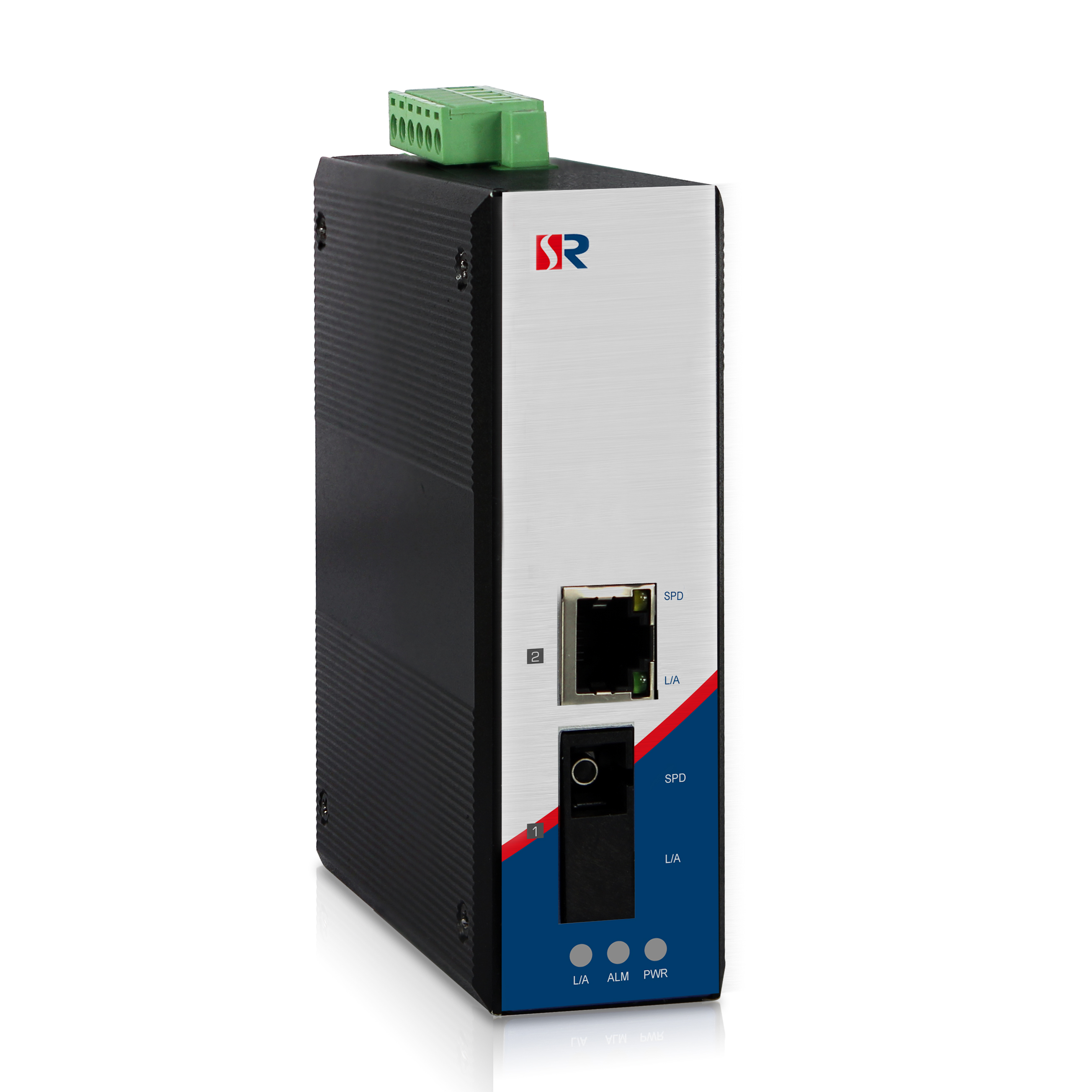

1 port Industrial Switches

model： RM202-1F1T

1 �100M fiber ports + 1�10/100M Ethernet port

Description Technical parameters Applications Download Related Products

Features

n1×10/100BaseT(X) 1×(RJ45 connector), 100BaseFX

nsupport 10/100Mbps?automatic MDI/MDIX

nRedundant dual 18~70V DCpower inputs

nIndustrial 4 grade

nwith IP40 Aluminum housing protection and Din rail design

n-40??85? operating temperature range

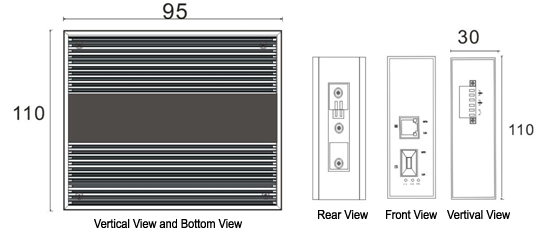

Dimension

Unit (mm)

Order information

Packaging List

• Switch

• Install accessories

• User manual

• Warranty card

• Certificate

Label： Industrial Switches

ProductProperties

Port	Fiber Ports:100Mbps (SC) RJ45 Port: 10/100Mbps adaptive, Full/Halfmode,supportMDI/MDI-X? LEDLight:PWR,ALM, L/A,SPD
Switch Properties	Packet buffer size:400Mbps Message cache size:512Kb MAC table size:1K Jumbo Frames:2K Bytes
Power Requirement	Input Voltage :18~70V DC, Redundant dual inputs Input Current :Max 0.25A
Physical Characteristics	Housing : Aluminan?IP40Protection Size: 110 x 95x 30mm Weight :320g Installation:din rail mounting
Environmental Limits	Operating temperature:-40 ~ 85°C(-40 ~ 185°F) Storage temperature:-40 ~ 85°C(-40 ~ 185°F) Ambient relative humidity:5 ~ 95% (non-condensing)
Standards	EMI:FCC Part 15/CISPR22?EN55022??Class A EMS: IEC61000-4-2 (ESD) 4class?IEC 61000-4-3 (RS) 3class?IEC 61000-4-4 (EFT) 4class? IEC 61000-4-5 (Surge) 4class?IEC 61000-4-6 (CS) 3class Vibration:IEC60068-2-6 Shock:IEC60068-2-27 Free fall:IEC60068-2-32 MTBF(mean time between falure) Time :500000h
Warranty	5 years
