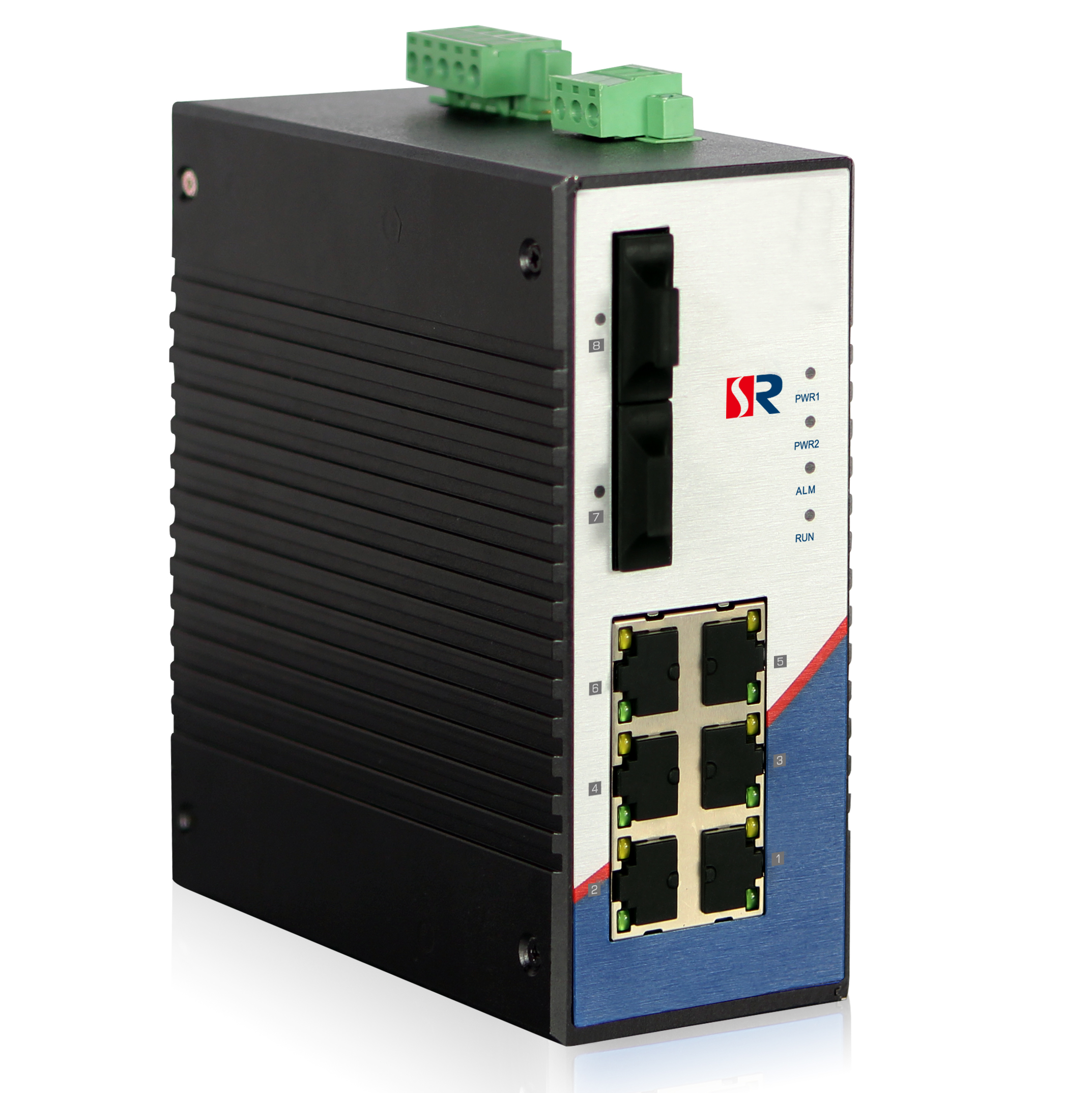

8 ports Industrial Switches
model： RS108-2F6T
2 100M fiber ports + 610/100M Ethernet port
Features
n2×100BaseF(X)+4×10/100BaseT(X)
n10/100Mbps self-adaptation, supportsMDI/MDIX
nApplicable voltage range 12~75V DC
nHigh strength metal shell, DIN rail type installation, no fan, low power design
nWith IP40 class protection,Excellent ability in lightningproof, anti-static and anti-interface
nApplicable to working environment:-40~85?

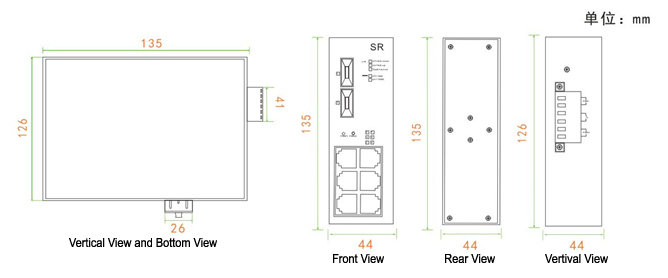

Dimension
Unit (mm)
.jpg)
|
|
Interface Type |
|||||
|
10/100BaseT |
10/100/1000BaseT |
100BaseFX |
1000BaseFX |
|||
|
Multimode Interface |
Single-Mode Interface |
Multimode Interface |
Single-Mode Interface |
|||
|
RS108-2F6E-DC48-M-S EDS-P506A-4PoE-T |
6 |
– |
2 SC |
– |
– |
– |
|
RS108-2F6E-DC48-S-S
|
6 |
– |
– |
2 SC |
– |
– |
|
RS108-2F6E-DC48-P
|
6 |
– |
2 SFP
|
–
|
||
Packaging List
• Ethernet Switch
• Installation Accessories
• User’s Manual
• Warranty Card
• Qualification Certificate
ProductProperties
|
Port |
Input by AC power
Support 1 relay alarm output |
|
Switch Properties |
Packet buffer size:400Mbps Message cache size:512Kb MAC table size:1K Jumbo Frames:2K Bytes |
|
Power Requirement |
Input voltage:Dual redundant DC (DC 12~75V) wide voltage input current, reverse protection |
|
Physical Characteristics |
Housing: metal, IP40 protection Dimension:135x126x44mm Weight: 600g Installation mode:Rail installation |
|
Environmental Limits |
Working temperature:-40 ~ 85°C(-40 ~ 185°F) Storage temperature:-40 ~ 85°C(-40 ~ 185°F) Environment relative humidity:5 ~ 95% (non-condensing) |
|
Standards |
Electromagnetic interference?EMI?:FCC Part 15/CISPR22?EN55022??Class A Electromagnetic sensibility?EMS?: IEC61000-4-2 (ESD) class 4?IEC 61000-4-3 (RS) class 4?IEC 61000-4-4 (EFT) class 4? IEC 61000-4-5 (Surge) class 4?IEC 61000-4-6 (CS) class 4 Vibration resistance:IEC60068-2-6 Impact resistance:IEC60068-2-27 Free falling:IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state MTBF(mean time between failures) Time :500000h |
|
Warranty |
5 years |
