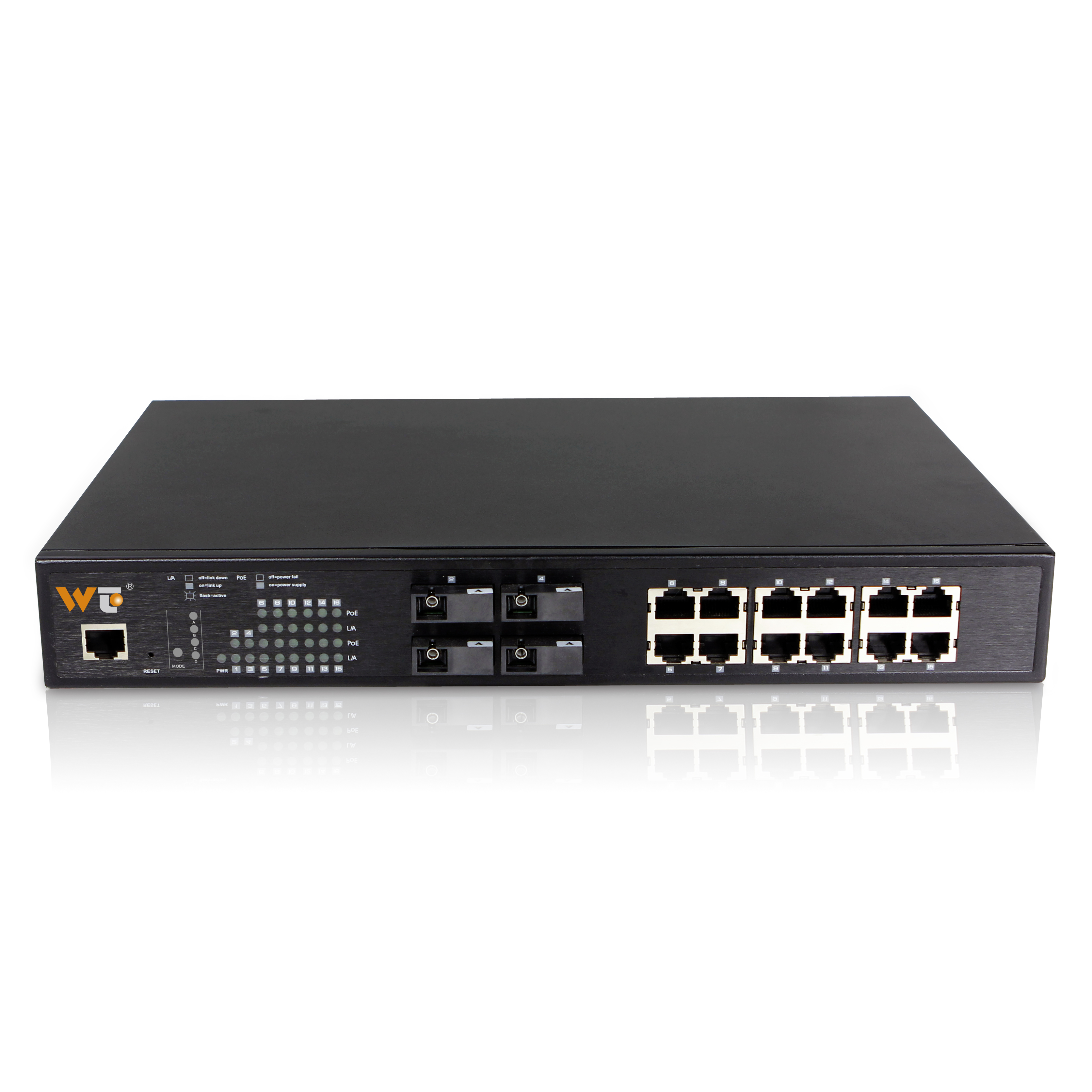

12 ports Managed Ethernet Switches (Gigabyte)

model： WT-DS7016-4GF12GT-P

4 ×1000M fiber ports + 12×10/100/1000M Ethernet port

Description Technical parameters Applications Download Related Products

Features

nIt provides four gigabit optical ports,12 Gigabit ports

nFanless design, IP30 protection class, shock metal housing

nVoltage range 100 ~ 240V AC

nCommand Line (CLI) + WEB interface, you can quickly configure the network function

nSupport Configuration ERPS and STP / RSTP / MSTP ring network protection

n-20 ~ 60 ℃ operating temperature

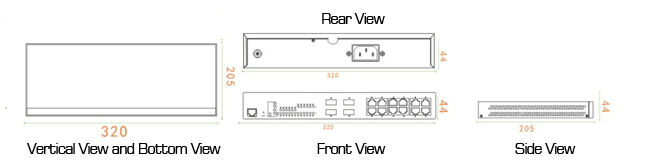

Dimension

Unit (mm)

Order information

Packaging List

• A Switch

• Serial line

• CD-ROM, contains the user manual

• Warranty Card

• Qualification Certificate

Label： Surveillance Switches

Products Properties

Interface	Serial ports: RS-232 (Interface Type：RJ45 slot) Reset Button:Device restart (interface types: pinhole) Gigabit optical interfaces: 100/1000Mbps (Interface Type: SFP slots) Gigabit ports: 10/100 / 1000Mbps adaptive, Full / Half duplex mode, support MDI / MDI-X. LEDindicator:PWR,POE,Link/ACT,Status
Switch Properties	QosQueue:8VLAN-ID : 1-4094 Backboard bandwidth:36Gbps MAC address table:8K Message cache size:3MbitsMaximum frame rate:9600bytes
Power Supply	Input voltage:100~240V AC Input Current:Max 0.5A
Physical Properties	Housing: metal, IP40 protection Dimension: 320mm205mm44mm Weight:2000g Installation mode: Rack
Environmental Constraint	Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing)
Standards and certification	Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) Class 4, IEC 61000-4-3 (RS) Class 4, IEC 61000-4-4 (EFT) Class 4, IEC 61000-4-5 (Surge) Class 4, IEC 61000-4-6 (CS) Class 4 Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF (mean time between failures) Time: 500000h
Quality Warranty	3 years
