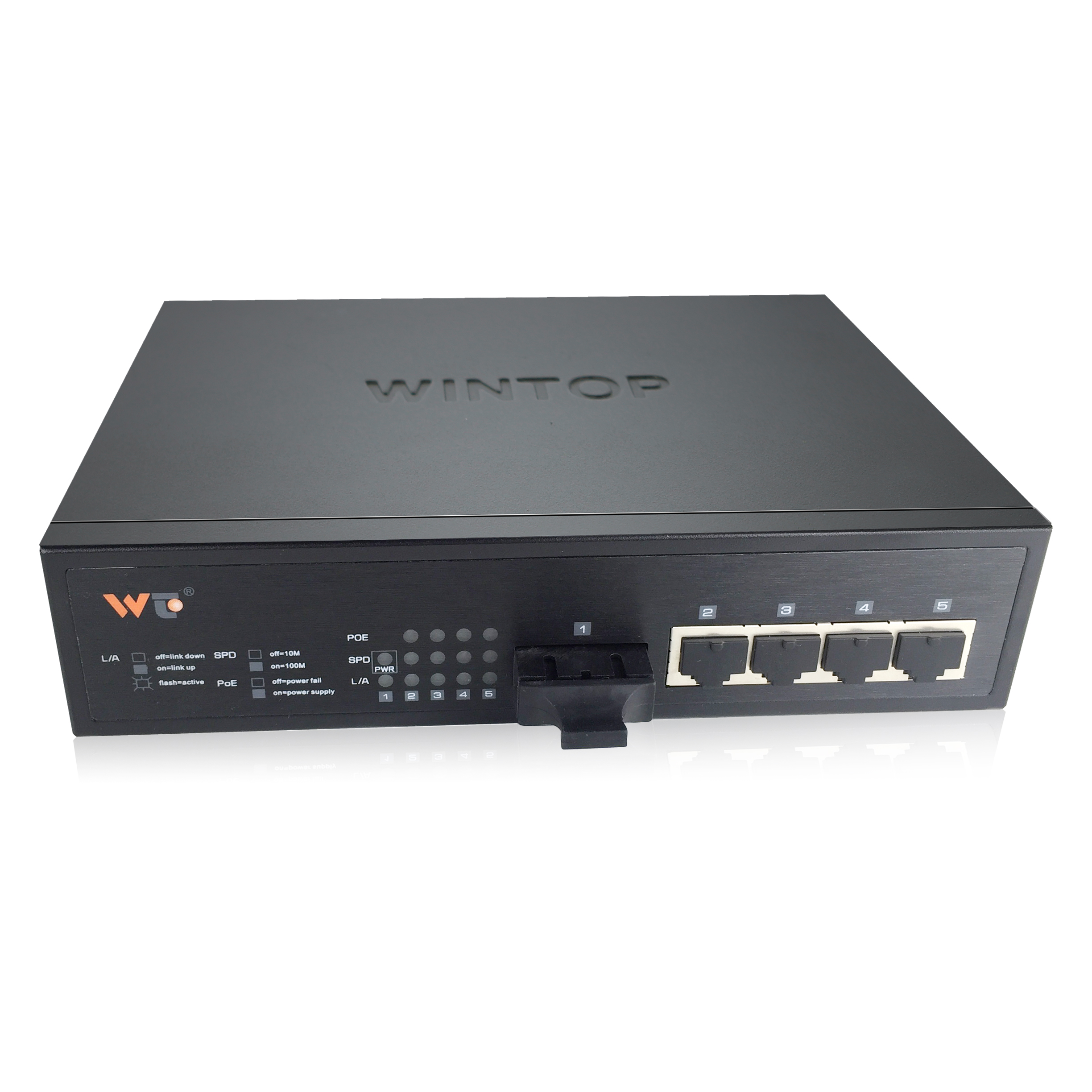

4 ports Managed Ethernet Switches
model： WT-DS605-1F4T
1 ×100M fiber ports + 4×10/100M Ethernet port
Features
nProvide an optical Fast uplink ports, four Fast second line electrical interface
nElectrical ports support 10/100 / 1000Mbps adaptive, support MDI / MDIX
nVoltage range 100 ~ 240V AC
nSupport WEB management, support VLAN, Qos, STP / RSTP, SNMP, and so on.
nSupport 802.3af POE standard
n-20 ~ 60 ℃ operating temperature

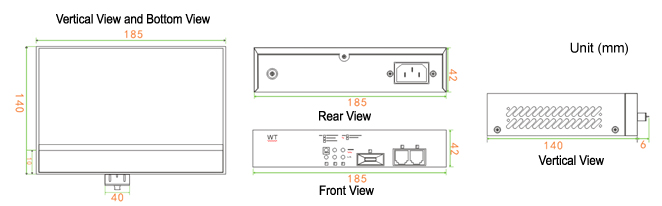

Dimension
Unit (mm)
.jpg)
Order information
|
Optional Models |
Interface Type |
|||||
|
10/100BaseT |
10/100/10080BaseT |
100BaseFX |
1000BaseFX |
|||
|
Multimode interface |
Singlemode interface |
Multimode interface |
Singlemode interface |
|||
|
DS605-1F4T-AC220-M-S EDS-P506A-4PoE-T |
– |
4（POE） |
– |
– |
1SC |
– |
|
DS605-1F4T-AC220-S-S
|
– |
4（POE） |
– |
– |
– |
1 SC |
|
DS605-1F4T-AC220-M-T
|
– |
4（POE） |
– |
– |
1 ST |
– |
|
DS605-1F4T-AC220-S-T
|
– |
4（POE） |
– |
– |
– |
1 ST |
|
DS605-1F4T-AC220-M-F
|
– |
4（POE） |
– |
– |
1FC |
– |
|
DS605-1F4T-AC220-S-F
|
– |
4（POE） |
– |
– |
– |
1 FC |
|
DS603-1GF2T-AC220-P
|
– |
2（POE） |
– |
– |
1 SFP slot |
|
Packaging List
• Ethernet Switch
• AC Power Cable
• Mounting Accessories
• User’s Manual
• Warranty Card
• Qualification Certificate
Products Properties
|
Interface |
Optical interface: 1000Mbps (Interface Type: SFP,ST,SC, FC) Ethernet port: 10 / 100Mbps adaptive, Full / Half duplex mode, support MDI / MDI-X.PWR,SPD, L/A |
|
Switch Properties |
Priority queue：4 The maximum number of VLAN:20 Backboard bandwidth : 4Gbps MAC address table :8K Message cache size :1Mbit Maximum frame rate : 9720 Bytes |
|
Power Supply |
Input voltage:100~240V AC Input Current: Max 20mA |
|
Physical Properties |
Housing: metal, IP30 protection Dimension: 185 x 140 x 42 mm (built-in power) 135 x 122 x 35 mm (external power) Weight: 700g 500g Installation mode: desktop installation, wall-mounted installation |
|
Environmental Constraint |
Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing) |
|
Standards and certification |
Electromagnetic interference (EMI): FCC Part 15/CISPR22（EN55022）：Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) 3 class，IEC 61000-4-3 (RS) 3 class，IEC 61000-4-4 (EFT) 2 class， IEC 61000-4-5 (Surge) 3 class，IEC 61000-4-6 (CS) 3 class Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF (mean time between failures) Time: 500000h |
|
Quality Warranty |
3 years |
