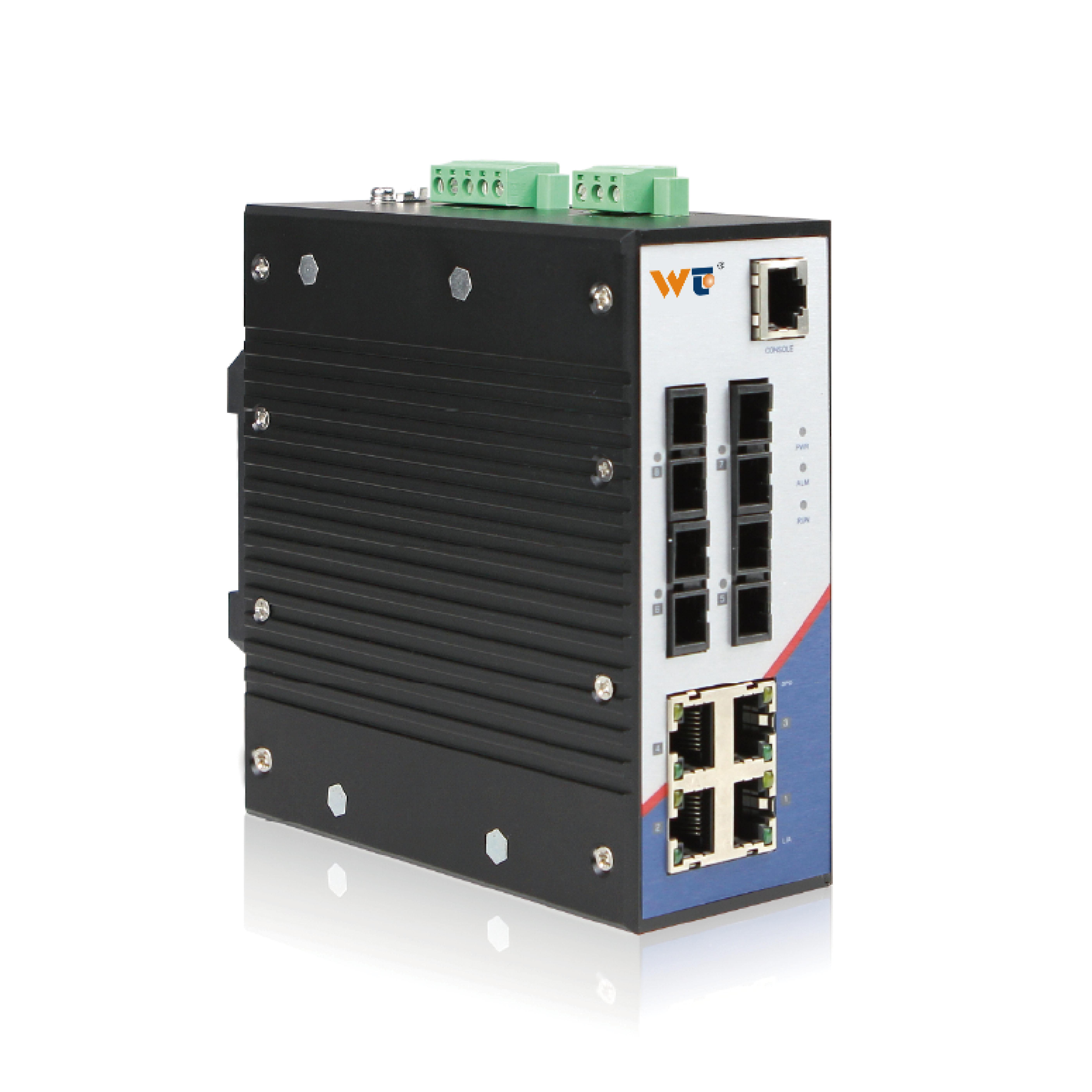

RS608-4F4T Layer 2 DIN-rail Mounted Managed Ethemet Switch

 Applicable standards

IEEE 802.3 10BaseT   IEEE 802.3u 100BaseFX&100BaseT

IEEE 802.3x flow control

IEEE 802.1d-2004 STP protocol

IEEE 802.1w RSTP protocol

IEEE 802.1s MSTP protocol

IEEE 802.1p Cos     IEEE 802.1q VLAN

Protocols

IGMP Snooping, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP,HTTPS, SSH,Telnet, Syslog,LLDP,LACP, DHCP Client,EtherNet/IP

MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB

Switching feature

Qos queue: 4 VLAN-ID: 1-4094

Back plane bandwidth: 1.6 Gbps List of MAC addresses: 4K

Message buffer size: 3Mbit

Port

Console port: RS-232 (port type: RJ45 slot)

Fiber port: 100Mbps (port type: SC/ST/FC optional)

Copper port: 10/100Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.

LED indicator: PWR,RUN,ALM,Link/Act,SPD

Power source requirement

Input voltage: DC9~36V;DC18~60V;AC/DC110~240V optional

Physical properties

Enclosure: Aluminium enclosure, IP40-rated protection

Size: 135mm*129mm*55mm

Weight: 850 g

Mounting method: DIN rail

Environmental restrictions

Working temperature: -40 ~ 85°C (-40 ~ 185°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMI:

FCC Part 15/CISPR22?EN55022??Class A

EMS:

IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4,

IEC 61000-4-6 (CS) Level 3

Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32

Certification: CE, FCC, RoHS

MTBF (mean time between failures)

Time: 500,000 h

Warranty

Quality assurance: 5 years
