1x9 Transceiver

model： 7113-311-1P-FC

1x9 Transceiver? 155M?BIDI? FC, 20KM, +3.3V

Description Technical parameters Applications Download Related Products

.Feature

l 1×9 package with FC connector

l 1310nm FP Tx/1550nm PIN Rx and 1550nm FP TX/1310nm PIN RX

l 20Km transmission with SMF

l +3.3V single power supply

l PECL compatible data input/output interface

l Low EMI and excellent ESD protection

l laser safety standard IEC-60825 compliant

l Compatible with RoHS

.Application

l Ethernet

l Telecom

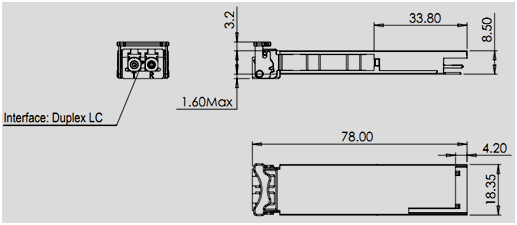

.Mechanical Dimensions

Label： 1 X 9

.Performance specifications

Transmitter Section

(Ambient Operating Temperature -20°C to +70°C, Vcc =3.3 V)

Parameter		Symbol	Min.	Typ.	Max.	Units
Data rate		-	-	155	-	Mb/s
Center Wavelength	Tx 1310	lo	1270	1310	1350	nm
Center Wavelength	Tx 1550	lo	1480	1550	1580	nm
Output Spectral width		Dl	-	-	4	nm
Average Optical Output Power	Tx 1310	Po	-15	-	-3	dBm
Average Optical Output Power	Tx 1550	Po	-15		-3	dBm
Extinction Ratio	Tx 1310	Er	10	-	18	dB
Extinction Ratio	Tx 1550	Er	10	-	18	dB
Rise/Fall Time(20%~80%)		Tr/Tf			0.26	ns
Total jitter		Tj			0.43	UI
Optical Eye Diagram		IEEE 802.3u and ANSI Fibre Channel Compatible
Input differential impendence		Zdiff		100		Ohm

Receiver Section

(Ambient Operating Temperature -20 °C to +70°C, Vcc =3.3 V)

Parameter		Symbol	Min.	Typ.	Max.	unit
Data rate				155		Mb/s
Wavelength	1550 Rx	l	1480	1550	1580	nm
Wavelength	1310 Rx	l	1270	1310	1350	nm
Maximum Input Power		P_max	-3	-	-	dBm
Receiver Sensitivity		P_min	-		-32	dBm
Output differential impendence		Zdiff		100		Ohm
LOSS Thresholds		LOSS_D	-	-	-34	dBm
LOSS Thresholds		LOSS_A	-45
