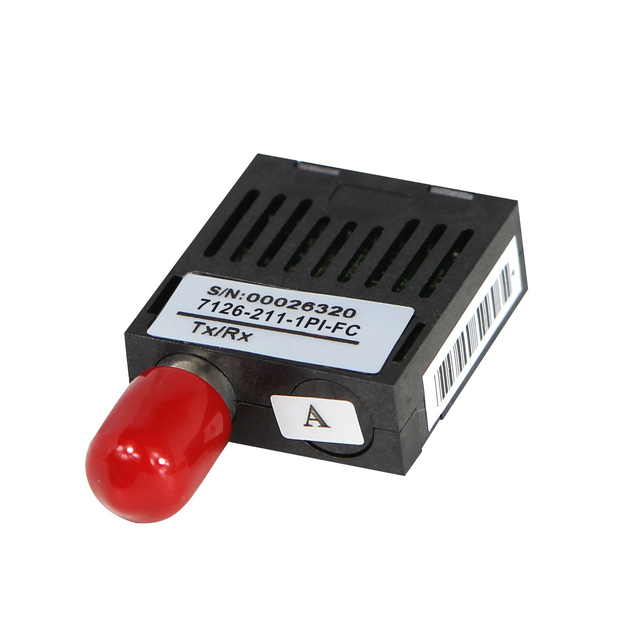

155M Single Fiber BIDI 1x9 Optical Transceiver
model： 7113-311-1PI-FC?7116-211-1PI-FC
The 19 transceiver supports 155Mbps and 20Km transmission distance with SMF.
Feature
l 1×9 package with FC connector
l 1310nm FP Tx/1550nm PIN Rx and
l 1550nm DFB TX/1310nm PIN RX
l 20Km transmission with SMF
l +3.3V single power supply
l PECL compatible data input/output interface
l Low EMI and excellent ESD protection
l laser safety standard IEC-60825 compliant
l Compatible with RoHS
Application
l Ethernet
l Telecom
Mechanical Dimensions
.png)
Performance specifications
Absolute Maximum Ratings
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Storage Temperature |
Tst |
-40 |
+85 |
°C |
|
Operating Temperature |
Top |
-40 |
+85 |
°C |
|
Supply Voltage |
Vcc |
0 |
+3.3 |
V |
|
Input voltage |
Vin |
GND |
Vcc |
|
|
Lead Soldering Temperature & Time |
240/10 |
°C/s |
||
Operation Environment
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Supply Voltage |
Vcc |
3.15 |
3.45 |
V |
|
Ambient operating Temperature |
Top |
-40 |
+85 |
°C |
|
Operating Relative Humidity |
- |
5 |
95 |
% |
For detail, please check the datasheet in "Download".
