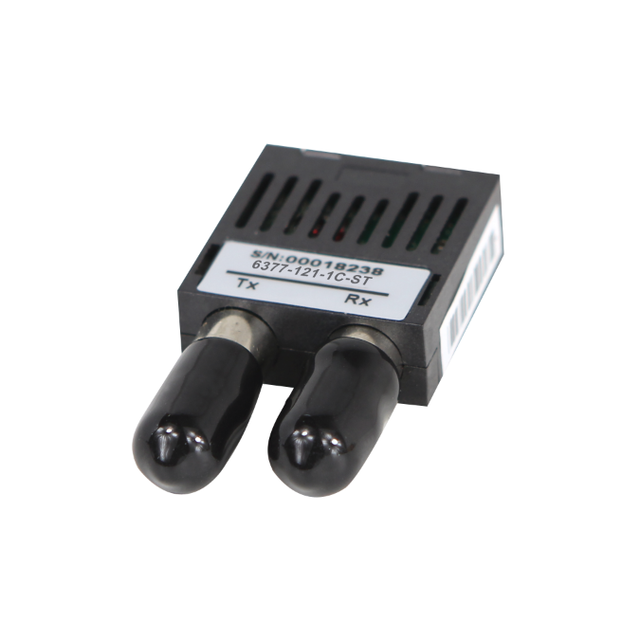

1X9 1.25G ST 850nm 550m 3.3v
model： 6377-121-1C-ST
The 19 transceiver supports 1250Mbps and 550m transmission distance with MMF.
The transceiver consists of two sections: The transmitter section incorporates a FP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).
Feature
l 1×9 package with ST connector
l 850nm VCSEL Laser and PIN photodetector
l 550m transmission with MMF
l +3.3V single power supply
l LVPECL compatible data input/output interface
l Low EMI and excellent ESD protection
l laser safety standard IEC-60825 compliant
l Compatible with RoHS
Application
l Ethernet
l Telecom

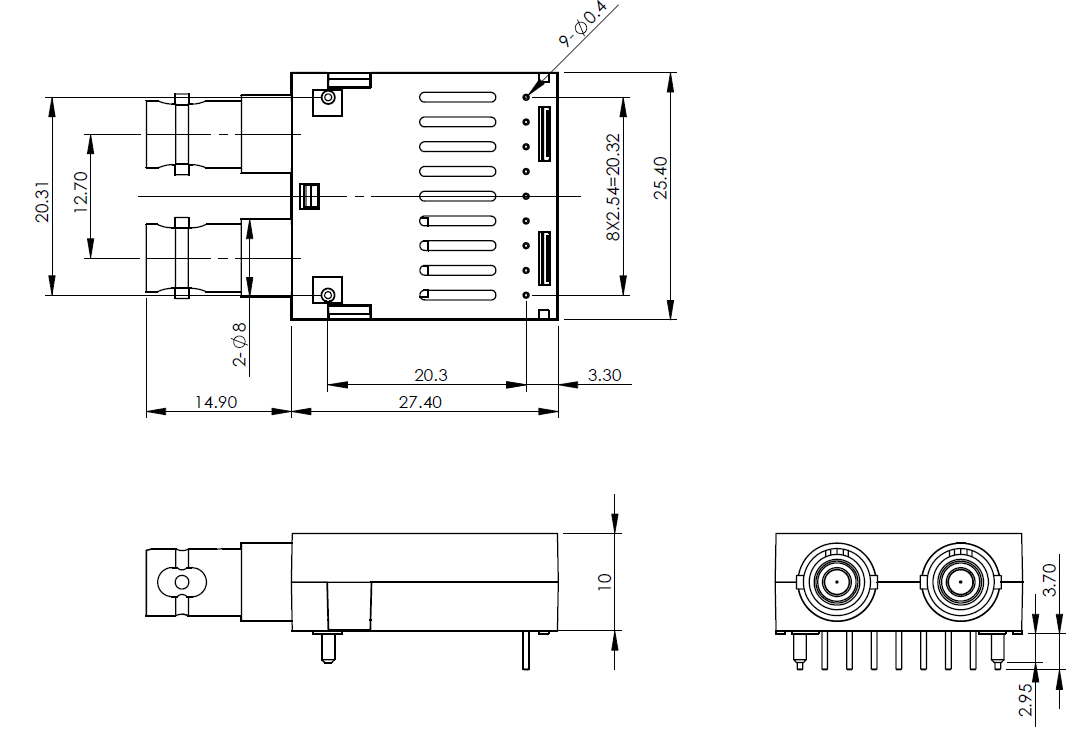

Mechanical Dimensions
.png)
Performance specifications
Absolute Maximum Ratings
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Storage Temperature |
Tst |
-40 |
+85 |
°C |
|
Operating Temperature |
Top |
0 |
+70 |
°C |
|
Supply Voltage |
Vcc |
0 |
+3.3 |
V |
|
Input voltage |
Vin |
GND |
Vcc |
|
|
Lead Soldering Temperature & Time |
240/10 |
°C/s |
||
Operation Environment
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Supply Voltage |
Vcc |
3.15 |
3.45 |
V |
|
Ambient operating Temperature |
Top |
0 |
+70 |
°C |
|
Operating Relative Humidity |
- |
5 |
95 |
% |
For detail, please check the datasheet in "Download".
