Feature

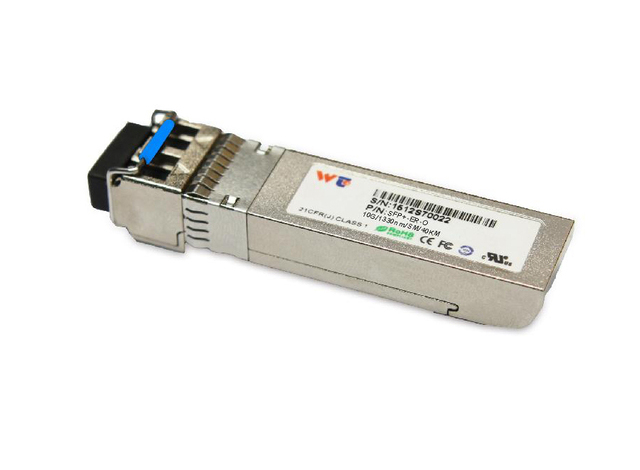

l SFP+ package with LC connector
l 1330nm DFB Laser and PIN photo detector
l Up to 20km transmission on SMF
l Power dissipation < 1W
l LVPECL compatible data input/output interface
l Low EMI and excellent ESD protection
l laser safety standard IEC-60825 compliant
l Compatible with RoHS
l Compatible with SFF8472
Application
l Ethernet
l Fiber Channel
Outline drawing (mm)
.png)
Optical Characteristics
(Ambient Operating Temperature -5°C to +70°C, Vcc =3.3 V)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
Transmitter Section |
|||||
|
Center Wavelength |
lo |
1310 |
1330 |
1350 |
nm |
|
Side-Mode Suppression Ratio |
SMSR |
35 |
- |
- |
dB |
|
Average Output Power |
Po |
0 |
- |
+4 |
dBm |
|
Extinction Ratio |
Er |
3.5 |
- |
- |
dB |
|
Dispersion Penalty |
|
|
|
3.2 |
dB |
|
Relative Intensity Noise |
RIN12OMA |
|
|
-128 |
dB/Hz |
|
Total jitter |
Tj |
IEEE 802.3ae |
|
||
|
Receiver Section |
|||||
|
Center Wavelength |
lo |
|
1330 |
|
nm |
|
Receiver Sensitivity |
Rsen |
|
|
-15 |
dBm |
|
Stressed Sensitivity |
Rsen |
|
|
-15.5 |
dBm |
|
Receiver Overload |
Rov |
-3 |
|
|
dBm |
|
Return Loss |
|
12 |
|
|
dB |
|
LOS Assert |
LOSA |
-28 |
|
|
dBm |
|
LOS Dessert |
LOSD |
|
|
-16 |
dBm |
|
LOS Hysteresis |
|
0.5 |
|
4 |
|
For detail, please check the datasheet in "Download".
