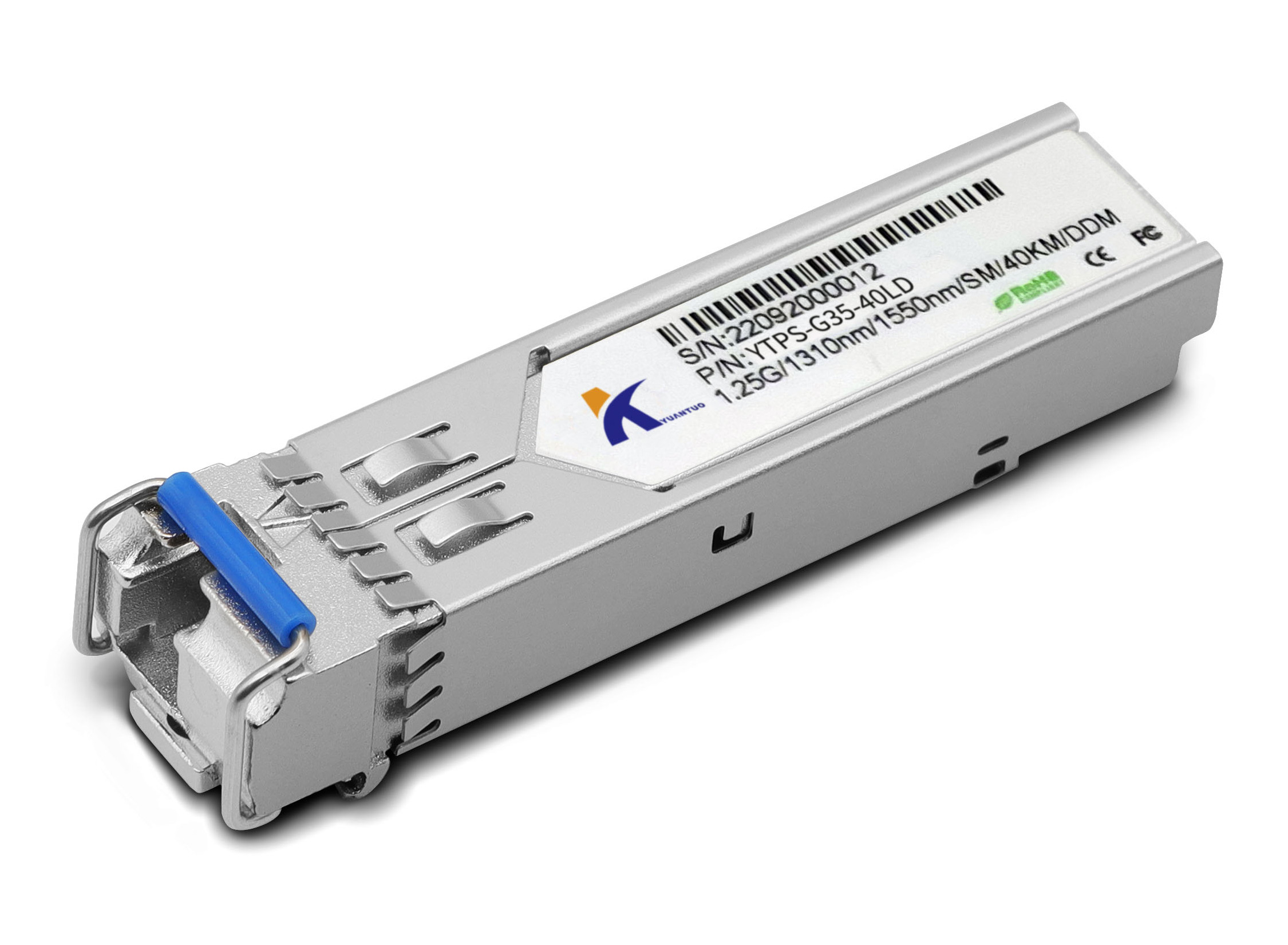

YTPS-G35/G53-40LxD

model： YTPS-G35/G53-40LxD

1.25G SFP SM WDM Tx1310/Rx1550 FP 40KM LC with DDM/ 1.25G SFP SM WDM Tx1550/Rx1310 DFB 40KM LC with DDM

Description Technical parameters Applications Download Related Products

1. Feature:

SFP package with LC connector

1310nm FP Laser and 1550nm PIN photodetector

1550nm DFB Laser and 1310nm PIN photodetector

Up to 40Km transmission on SMF

+3.3V single power supply

LVPECL compatible data input/output interface

Low EMI and excellent ESD protection

laser safety standard IEC-60825 compliant

Compatible with RoHS

Compatible with SFF8472

2. Application?

Ethernet

Telecom

Fiber Channel

3. Absolute Maximum Ratings?

4. Operation Environment?

Parameter	Symbol	Min	Typical	Max	Units
Supply Voltage	Vcc	3. 15	3.3	3.45	V

Label： SFP

Optical Characteristics:

(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)

Parameter		Symbol	Min.	Typ.	Max.	Units
Transmitter Section
Center Wavelength	Tx 1310	lo	1260	1310	1360	nm
Center Wavelength	Tx 1550	lo	1540	1500	1560	nm
Spectral Width(RMS)	Tx 1310	Dl	-	-	4	nm
Spectral Width(RMS)	Tx 1550	Dl			1	nm
Average Output Power	Tx 1550	Po	-5	-	+3	dBm
Average Output Power	Tx 1490	Po	-5		+3	dBm
Extinction Ratio		Er	10	-	15	dB
Rise/Fall Time(20%~80%)		Tr/Tf			0.26	ns
Total jitter		Tj			0.43	UI
Optical Eye Diagram		IEEE 802.3z and ANSI Fibre Channel Compatible
Receiver Section
Center Wavelength	Rx 1550	lo	1550	1550	1600	nm
Center Wavelength	Rx 1310	lo	1260	1310	1360	nm
Receiver Sensitivity		Rsen			-24	dBm
Receiver Overload		Rov	-3			dBm
Return Loss			12			dB
LOS Assert		LOS_A	-36			dBm
LOS Dessert		LOS_D			-24	dBm
LOS Hysteresis			0.5		5
