SFP

YTPD-G39-40LxD

model： YTPD-G39-40LxD

1.25Gbps SFP Optical Transceiver, SM 1310nm 40km?LC DDM

Description Technical parameters Applications Download Related Products

Feature:

l SFP package with LC connector

l 1310nm FP Laser and PIN photodetector

l Up to 40Km transmission on SMF

l +3.3V single power supply

l LVPECL compatible data input/output interface

l Low EMI and excellent ESD protection

l laser safety standard IEC-60825 compliant

l
Compatible with RoHS

l Compatible with SFF8472

Application:

l Ethernet

l Telecom

l Fiber Channel

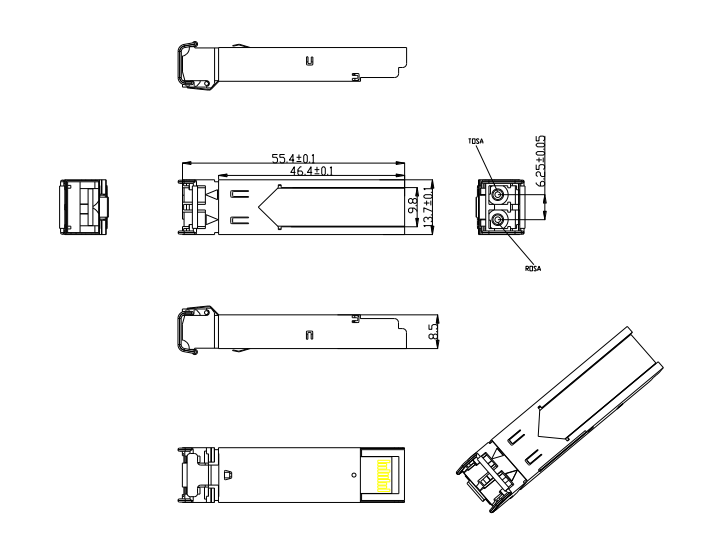

Outline drawing (mm):

Label： SFP

Optical Characteristics:

(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)

For detail, please check the datasheet in "Download".
