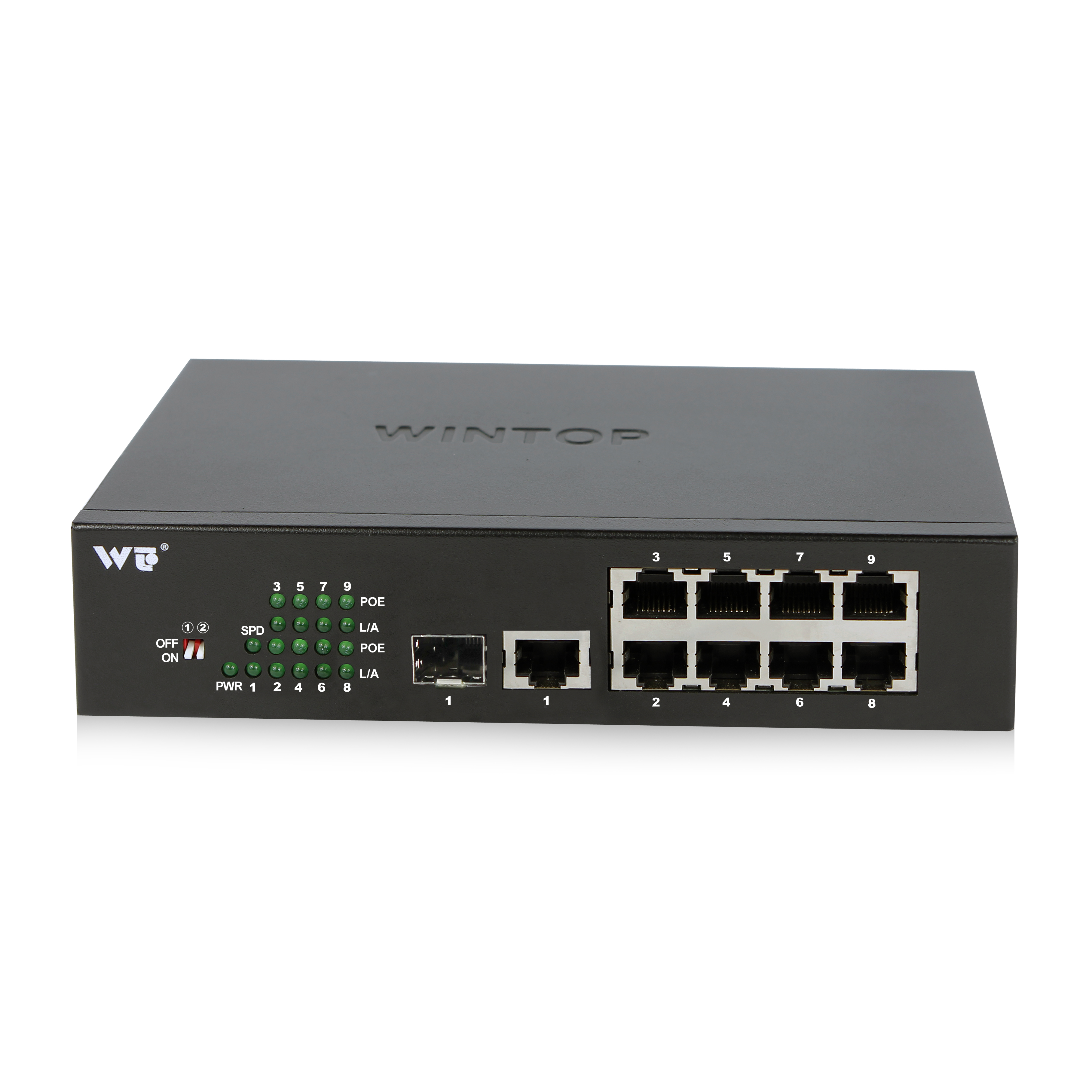

8 ports POE Ethernet Switches

model： WT-DS209-1GF8T-AF

1 �1000M fiber ports + 8�10/100M Ethernet port; 150W

Description Technical parameters Applications Download Related Products

Features

nProvide eight 100Mbps electric interfaces, one1000Mbps optical interface

nElectric interfaces support POE equipment ,whichconform to the standard of 802.3af IEEE

nApplicable voltage range 100~240V AC

nMeet the EMC Industrial Class 4 Electromagnetic Compatibility Requirement (lightningproof, antistatic, anti-surge,anti pulse packet)

n6KV all ports lightningproof

nApplicable to -20??60? working environment

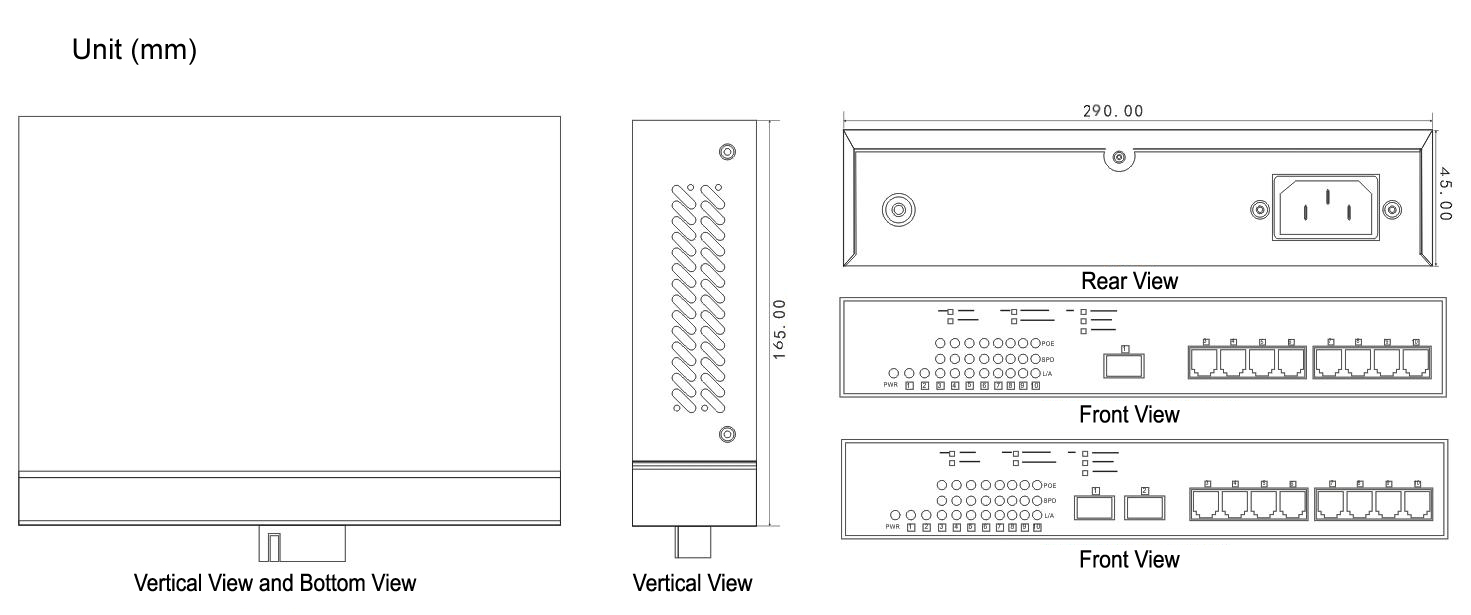

Dimension

Unit (mm)

Order information

Packaging List

• Ethernet Switch

• AC Power Cable

• Installation Accessories

• User’s Manual

• Warranty Card

• Qualification Certificate

Label： POE Switches

Products Properties

Interface	Optical interface: 1000Mbps (Interface type:SC/FC/ST/SFP slot) Network interface: 10/100Mbps self-adaptation, Full/Half duplex mode, support MDI/MDI-X. Transmission distance at common mode 0-100m; LED indicator: PWR, Link/ACT, SPD,POE
Switch Properties	Backboard bandwidth:3.6Gbps MAC address table: 8K Message cache size: 1Mbit Maximum frame rate: 10KB Packet forwarding rate:4.17 Mpps
Power Supply	Input voltage: 100~240V AC Input current: max 1500mA (DC)
Physical Properties	Housing: metal, IP30 protection Dimension: 290x165x45mm Weight: 1200g Installation mode: desktop installation, wall-mounted installation
Environmental Constraint	Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing)
Standards and certification	Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) Class 4, IEC 61000-4-3 (RS) Class 4, IEC 61000-4-4 (EFT) Class 4, IEC 61000-4-5 (Surge) Class 4, IEC 61000-4-6 (CS) Class 4 Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF (mean time between failures) Time: 500000h
Quality Warranty	3 years
