2 ports Industrial Switches

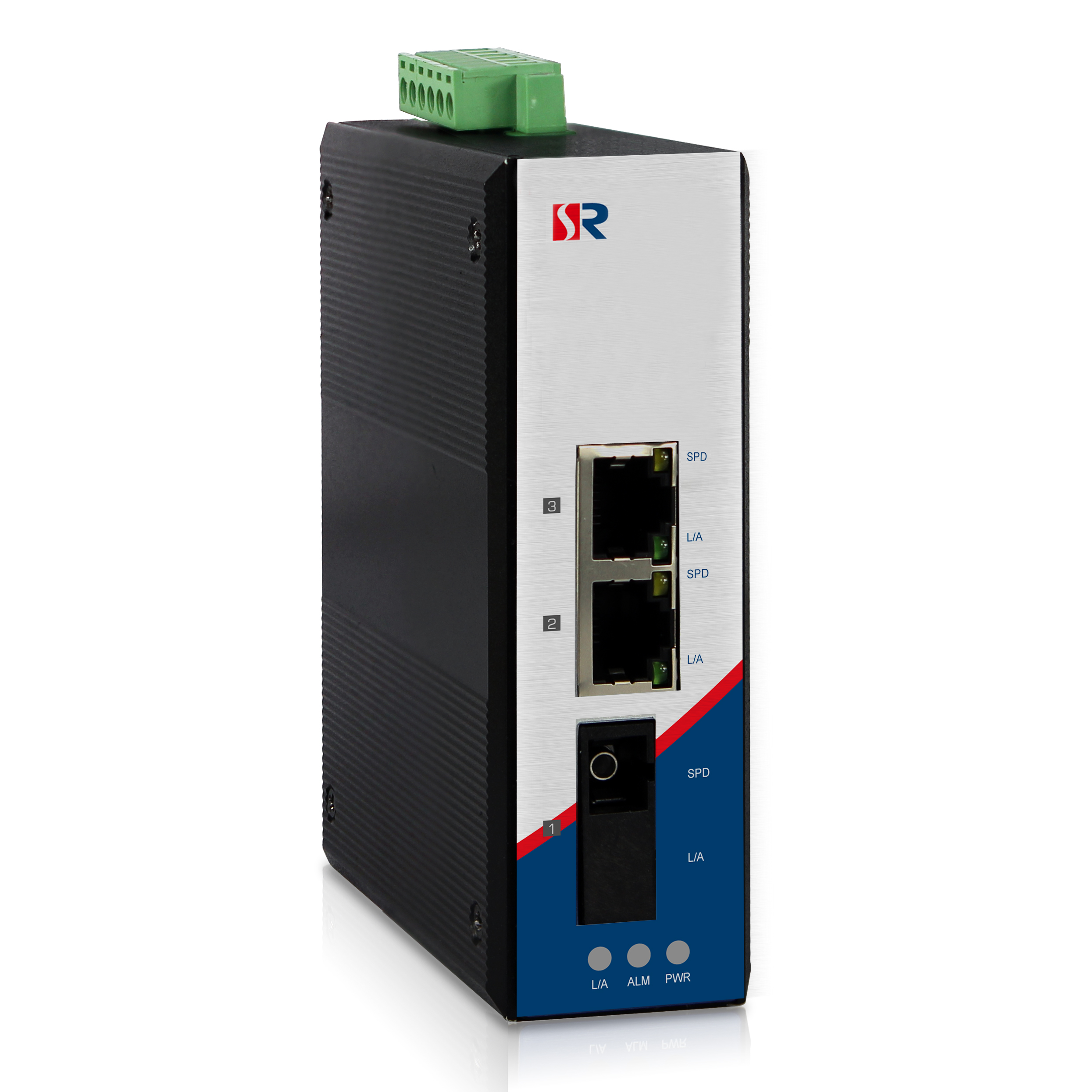

model： RM203-1F2T

1 �100M fiber ports + 2�10/100M Ethernet port

Now Consulting

Description Technical parameters Applications Download Related Products

Features

n2-port 10/100BaseT(X) , 1-port 100BaseFX

nsupport 10/100Mbps?automatic MDI/MDIX

nRedundant dual 18~70V DC power inputs

nIndustrial 4 grade

nwith IP40 Aluminum housing protection and Din rail design

n-40??85? operating temperature range

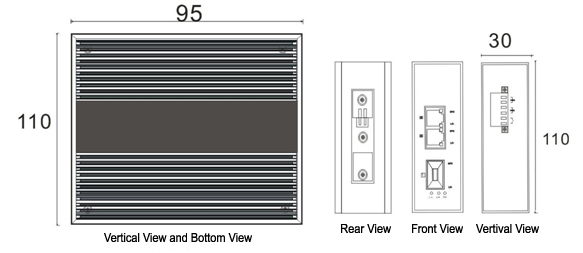

Dimension

Unit (mm)

Order information

Available type

Port interface

10/100BaseT

10/100/1000BaseT

100BaseFX

multi mode sc

Single mode sc

RM203-1S-SC-1310nm-2T-DC48-DC48

EDS-P506A-4PoE-T

–

RM203-1S-SC-1310nm-2T-AC220

–

Packaging List

• Switch

• Install accessories

• User manual

• Warranty card

• Certificate

Label： Industrial Switches

ProductProperties

Port	Fiber Ports: 100Mbps (SC) RJ45 Port : 10/100Mbps adaptive, Full/Half mode, support MDI/MDI-X? LED Light : PWR,ALM, L/A,SPD
Switch Properties	Packet buffer size : 600Mbps Message cache size : 512Kb MAC table size : 1K Jumbo Frames: 2K Bytes
Power Requirement	Input Voltage : 18~70V DC, Redundant dual inputs Input Current : Max 0.25A
Physical Characteristics	Housing : Aluminum?IP40Protection Size: 110 x 95x 30mm Weight : 320g Installation: Din rail mounting
Environmental Limits	Operating temperature: -40 ~ 85°C (-40 ~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Ambient relative humidity: 5 ~ 95% (non-condensing)
Standards	EMI: FCC Part 15/CISPR22?EN55022??Class A EMS: IEC61000-4-2 (ESD) 4class?IEC 61000-4-3 (RS) 3class?IEC 61000-4-4 (EFT) 4class? IEC 61000-4-5 (Surge) 4class?IEC 61000-4-6 (CS) 3class Vibration: IEC 60068-2-6 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 MTBF (mean time between falure) Time : 500000 h
Warranty	5 years
