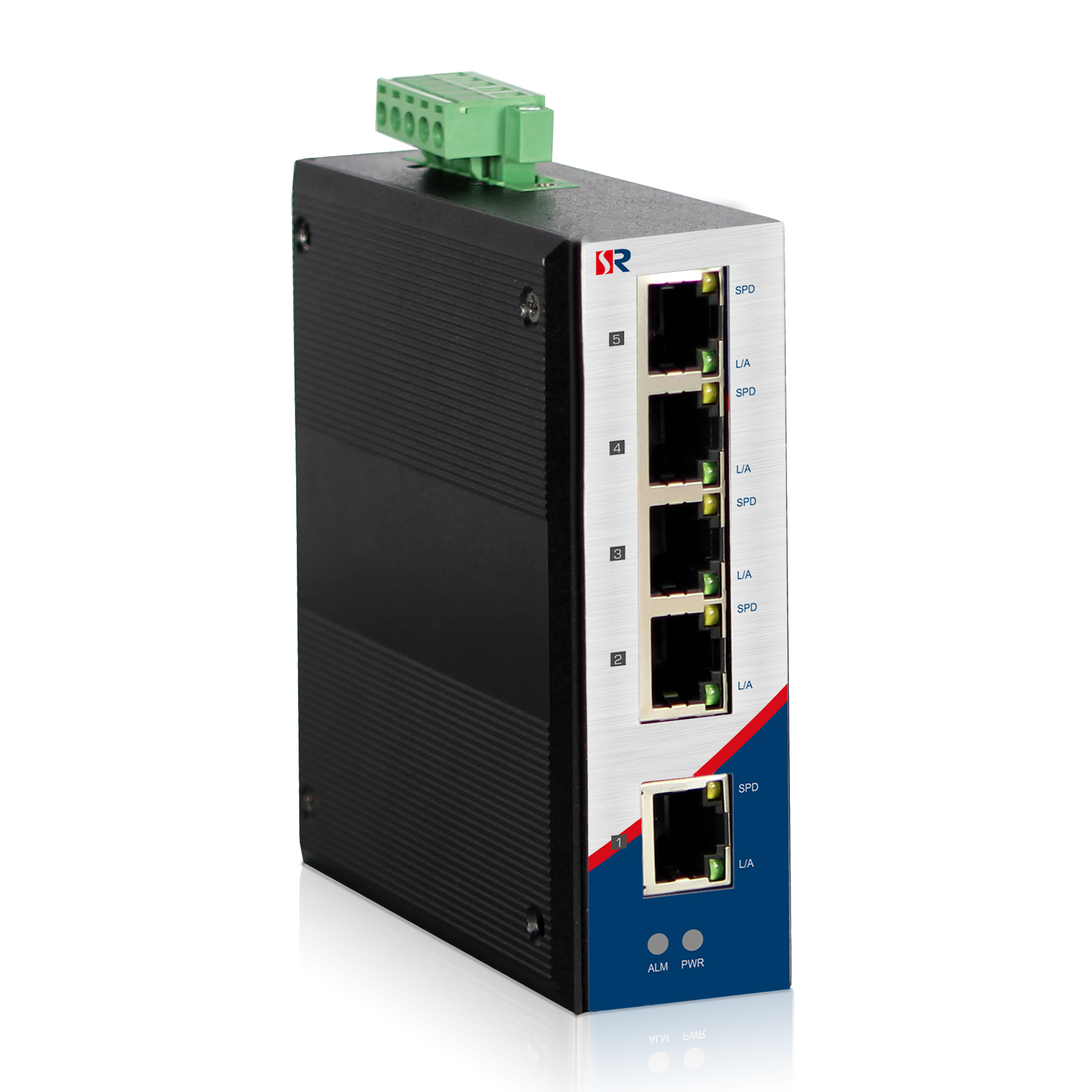

Features
n5-port 10/100BaseT(X)
nsupport 10/100Mbps?automatic MDI/MDIX
nRedundant dual 18~70V DCpower inputs
nIndustrial 4 grade
nwith IP40 Aluminum housing protection and Din rail design
n-40??85? operating temperature range
Dimension
Unit (mm)
.jpg)
Order information
|
Available type |
Port interface |
|||
|
10/100BaseT |
10/100/1000BaseT |
100BaseFX |
||
|
multi modesc |
Single mode sc |
|||
|
RM205-5T-DC48-DC48 EDS-P506A-4PoE-T |
5 |
– |
– |
|
|
RM205-5T-AC220 |
5 |
– |
– |
|
Packaging List
• Industrial Switch
• Install accessories
• User manual
• Warranty card
• Certificate
ProductProperties
|
Port |
Fiber Ports:100Mbps (SC) RJ45 Port: 10/100Mbps adaptive, Full/Half mode,support MDI/MDI-X? LEDLight:PWR,ALM, L/A,SPD |
|
Switch Properties |
Packet buffer size:1Gbps Message cache size:512Kb MAC table size:1K Jumbo Frames:2K Bytes |
|
Power Requirement |
Input Voltage :18~70V DC, Redundant dual inputs Input Current:Max 0.25A |
|
Physical Characteristics |
Housing : Aluminum?IP40Protection Size: 110 x 95x 30mm Weight :320g Installation:Din rail mounting |
|
Environmental Limits |
Operating temperature:-40 ~ 85°C(-40 ~ 185°F) Storage temperature:-40 ~ 85°C(-40 ~ 185°F) Ambient relative humidity:5 ~ 95% (non-condensing) |
|
Standards |
EMI:FCC Part 15/CISPR22?EN55022??Class A EMS: IEC61000-4-2 (ESD) 4class?IEC 61000-4-3 (RS) 3class?IEC 61000-4-4 (EFT) 4class? IEC 61000-4-5 (Surge) 4class?IEC 61000-4-6 (CS) 3class Vibration:IEC60068-2-6 Shock:IEC60068-2-27 Free fall:IEC60068-2-32 MTBF(mean time between failure) Time :500000h |
|
Warranty |
3 years |
