16 optical ports Ethernet Switches
model： WT-CS1018-16F2GT-P
16 ×100M fiber ports + 2×10/100/1000M Ethernet port
Features
n16*100M optical ports, 2*1000M ethernet ports
nelectrical-port supports 10/100/1000Mbps self-adaptation,MDI/MDI-X
nApplicable voltage range 100~240V AC
nMeet the EMC Industrial Class 4Electromagnetic Compatibility Requirement (lightningproof, antistatic, anti-surge,anti pulsepacket)
n6KV all ports lightningproof, 3KV isolated power supply
nWorking temperature: -20℃～60℃

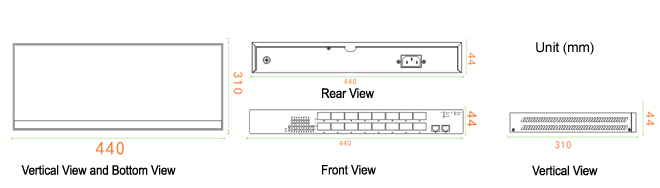

Dimension
Unit (mm)
Order information
|
Optional models |
Interface type |
|||||
|
10/100BaseT |
10/100/1000BaseT |
100BaseFX |
1000BaseFX |
|||
|
Multimode |
Single-Mode |
Multimode |
Single-Mode |
|||
|
CS1018-16F2GT-AC220-M-SC EDS-P506A-4PoE-T |
– |
2 |
16SC |
– |
– |
– |
|
CS1018-16F2GT-AC220-S-SC
|
– |
2 |
– |
16 SC |
– |
– |
|
CS1018-16F2GT-AC220-M-TC
|
– |
2 |
16 ST |
– |
– |
– |
|
CS1018-16F2GT-AC220-S-TC
|
– |
2 |
– |
16 ST |
– |
– |
|
CS1018-16F2GT-AC220-M-FC
|
– |
2 |
16 FC |
– |
– |
– |
|
CS1018-16F2GT-AC220-S-FC
|
– |
2 |
– |
16 FC |
– |
– |
|
CS1018-16F2GT-AC220-P
|
– |
2 |
16(SFP slots) |
– |
– |
|
Packaging List
• Ethernet Switch
• AC Power Cable
• Installation Accessories
• User’s Manual
• Warranty Card
• Qualification Certificate
Products Properties
|
Interface |
Optical interface :100Mbps (interface type : SC、ST、FC orSFP slot) Network interface: 10/100/1000Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X. transmission distance 0-100M LED indicator: PWR, Link, SPD |
|
Switch Properties |
Backboard bandwidth:7.2Gbps MAC address table: 4K Message cache size:2.75Mbits Packet forwarding rate: 5.36 Mpps |
|
Power Supply |
Input voltage: 100~240V AC Input current: max 300mA |
|
Physical Properties |
Housing: metal, IP30 protection Dimension: 440x310x44mm Installation mode: rack mount Weight: 2400g |
|
Environmental Constraint |
Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing) |
|
Standards and certification |
Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) Class 3, IEC 61000-4-3 (RS) Class 3, IEC 61000-4-4 (EFT) Class 2, IEC 61000-4-5 (Surge) Class 3, IEC 61000-4-6 (CS) Class 3 Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32 Note: Please visit Wintop official website to check the latest certifications. MTBF (mean time between failures) Time: 500000h |
|
Quality Warranty |
3 years |
