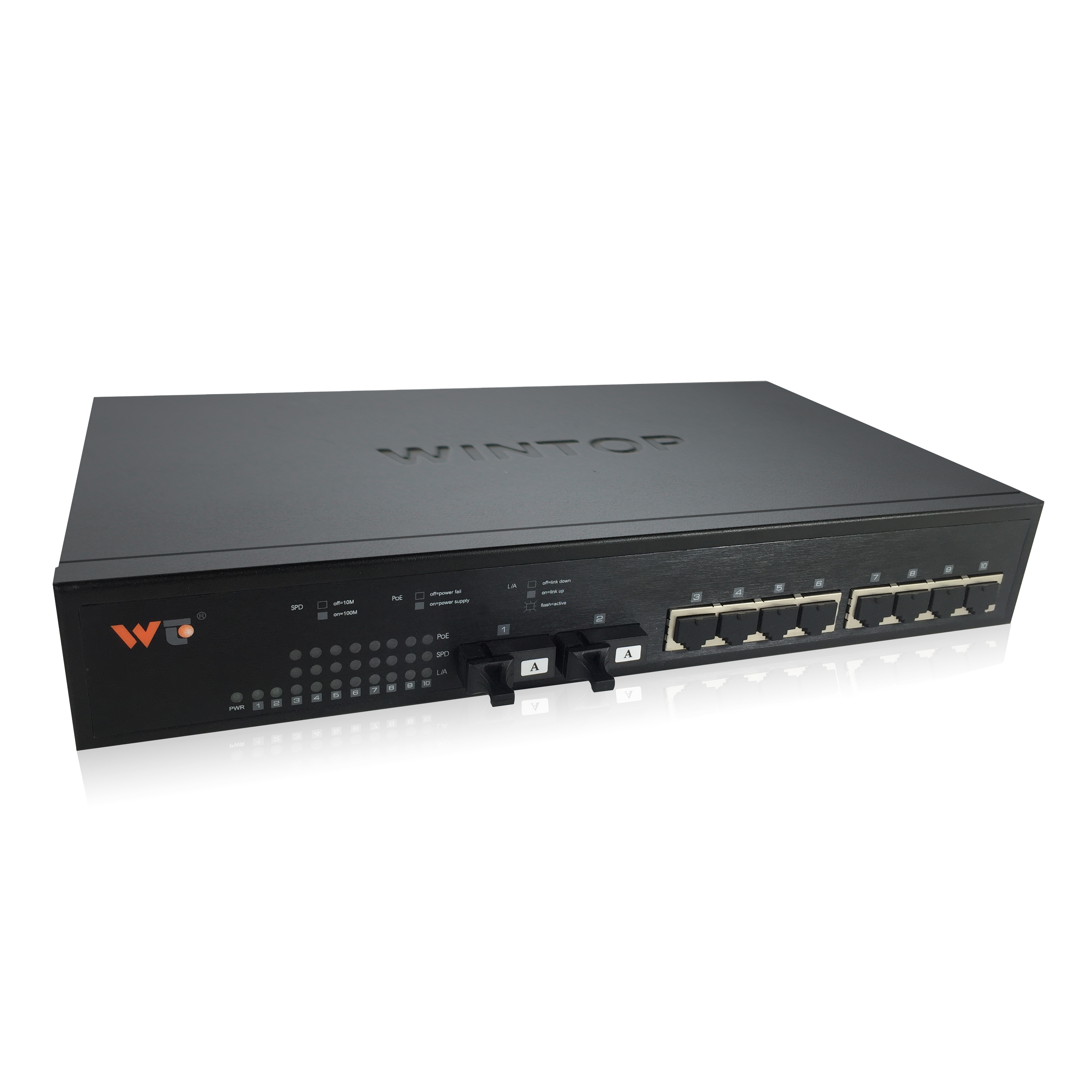

8 ports Ethernet Switches (Gigabyte)
model： WT-DS2010-2GT8GT-P
2 ×1000M fiber ports + 8×10/100/1000M Ethernet port
Features
nProvide eight Gigabit electric interface,two Gigabit opticalinterface
nFanless design，IP30 protection grade, Impact resistant metal shell
nApplicable voltage range 100~240V AC
nMeet the requirements of electromagnetic compatibility EMC industrial grade 4（anti-lighting, static electricity, surge, group pulse）
nAll port anti-lighting 6KV
nApplicable to -20℃～60℃ working environment

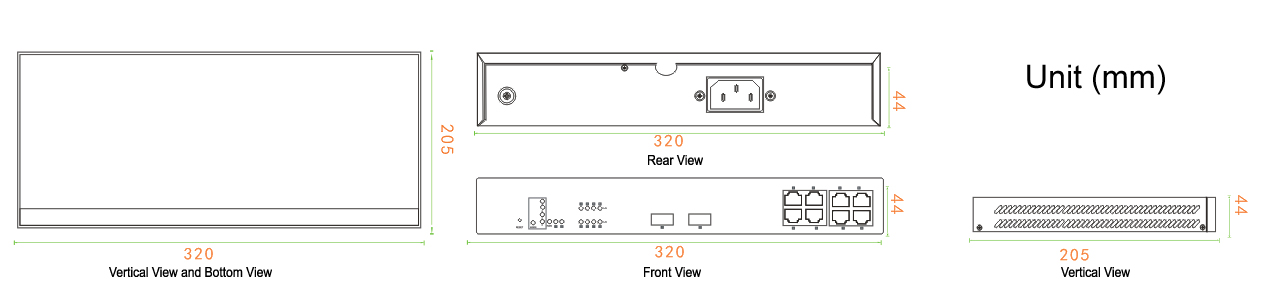

Dimension
Unit (mm)
Order information
|
Optional Models |
Interface Type |
|||
|
10/100BaseT |
10/100/1000BaseT |
100BaseFX |
1000BaseFX |
|
|
Multimode/Single-Mode |
||||
|
DS1010-2GF8GT |
|
- |
2(SC/ST/FC or SFP slot)
|
|
Packaging List
• Ethernet Switch
• AC Power Cable
• Installation Accessories
• User’s Manual
• Warranty Card
• Qualification Certificate
Products Properties
|
Interface |
Optical interface: 1000Mbps (Interface type: SC/ST/FC and SFP slots) Ethernetinterface:10/100/1000Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X. transmission distance common mode 0-100m; LED indicator:PWR,Link/ACT, SPD |
|
Switch Properties |
Backboard bandwidth:32Gbps MAC address table:8K Message cache size:4Mbit Oversized frame rate:9.6KB Packet forwarding rat:23.81Mpps |
|
Power Supply |
Input voltage: 100~240V AC Input current: max 100mA |
|
Physical Properties |
Housing: metal, IP30 protection Dimension :320mm*205mm*45mm Weight:1900g Installation mode: desktop installation, wall-mounted installation |
|
Environmental Constraint |
Working temperature:-20 ~ 60°C (-4 ~ 140°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing) |
|
Standards and certification |
Electromagnetic interference（EMI）:FCC Part 15/CISPR22（EN55022）：Class A Electromagnetic sensibility（EMS）: IEC61000-4-2 (ESD) class 4，IEC 61000-4-3 (RS) class 4，IEC 61000-4-4 (EFT) class 4， IEC 61000-4-5 (Surge) class 4，IEC 61000-4-6 (CS) class 4 Vibration resistance:IEC60068-2-6 Impact resistance:IEC60068-2-27 Free falling:IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF(mean time between failures) Time :500000h |
|
Quality Warranty |
3 years |
