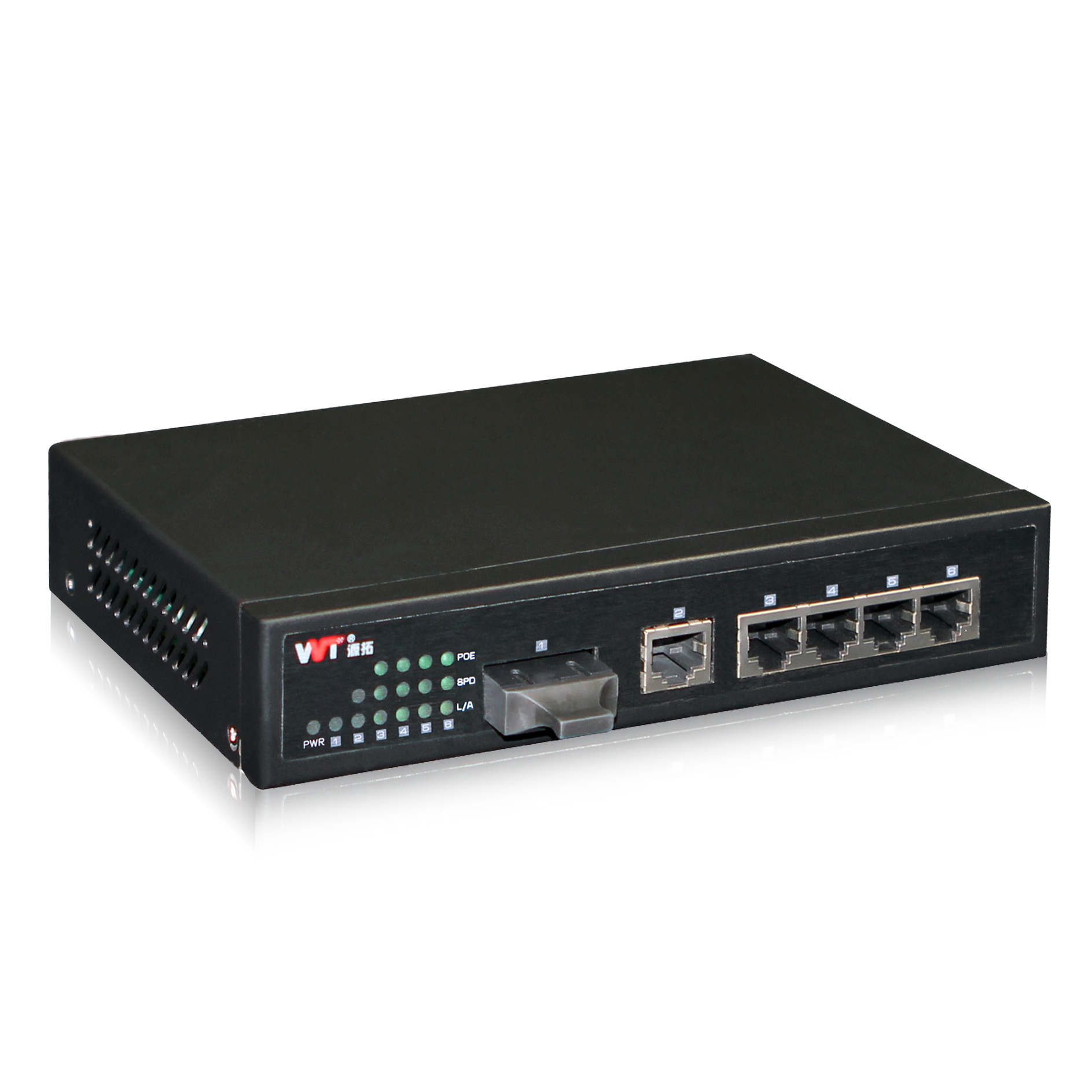

4 ports Ethernet Switches (Gigabyte)
model： WT-DS106-1GF5GT
1 ×1000M fiber ports + 5×10/100/1000M Ethernet port
Features
nProvide five Gigabit electric interface,one Gigabit optical interface
nFanless design，IP30 protection grade, Impact resistant metal shell
nApplicable voltage range 100-240 AC
nMeet the requirements of electromagnetic compatibility EMC industrial grade 4（anti-lighting, static electricity, surge, group pulse）
nAll port anti-lighting 6KV
nApplicable to -20℃～60℃ working environment

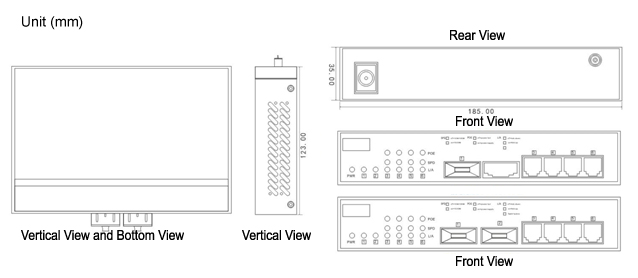

Dimension
Unit (mm)
Order information
|
Optional Models |
Interface Type |
|||
|
10/100BaseT |
10/100/1000BaseT |
100BaseFX |
1000BaseFX |
|
|
Multimode/Single-Mode |
||||
|
DS106-1GF5GT-AC220 EDS-P506A-4PoE-T |
- |
5 |
- |
1(SC/ST/FC or SFP slot) |
Packaging List
• Ethernet Switch
• AC Power Cable
• Installation Accessories
• User’s Manual
• Warranty Card
• Qualification Certificate
Products Properties
|
Interface |
Optical interface: 1000Mbps (Interface type: SC/ST/FC and SFP slot) Ethernet interface: 10/100/1000Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X. transmission distance common mode 0-100m; LED indicator: PWR,Link/ACT, SPD |
|
Switch Properties |
Backboard bandwidth: 4.8Gbps MAC address table:8K Message cache size:1Mbit Oversized frame rate: 10 KB Packet forwarding rat:3.57Mpps |
|
Power Supply |
Input voltage: 12~24V DC Input current: max 250mA |
|
Physical Properties |
Housing: metal, IP30 protection Dimension :185mm*123mm*35mm Weight :700g Installation mode: desktop installation, wall-mounted installation |
|
Environmental Constraint |
Working temperature:-20 ~ 60°C (-4 ~ 140°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing) |
|
Standards and certification |
Electromagnetic interference（EMI）:FCC Part 15/CISPR22（EN55022）：Class A Electromagnetic sensibility（EMS）: IEC61000-4-2 (ESD) class 4，IEC 61000-4-3 (RS) class 4，IEC 61000-4-4 (EFT) class 4， IEC 61000-4-5 (Surge) class 4，IEC 61000-4-6 (CS)class 4 Vibration resistance:IEC60068-2-6 Impact resistance:IEC60068-2-27 Free falling:IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF (mean time between failures) Time :500000h |
|
Quality Warranty |
3 years |
