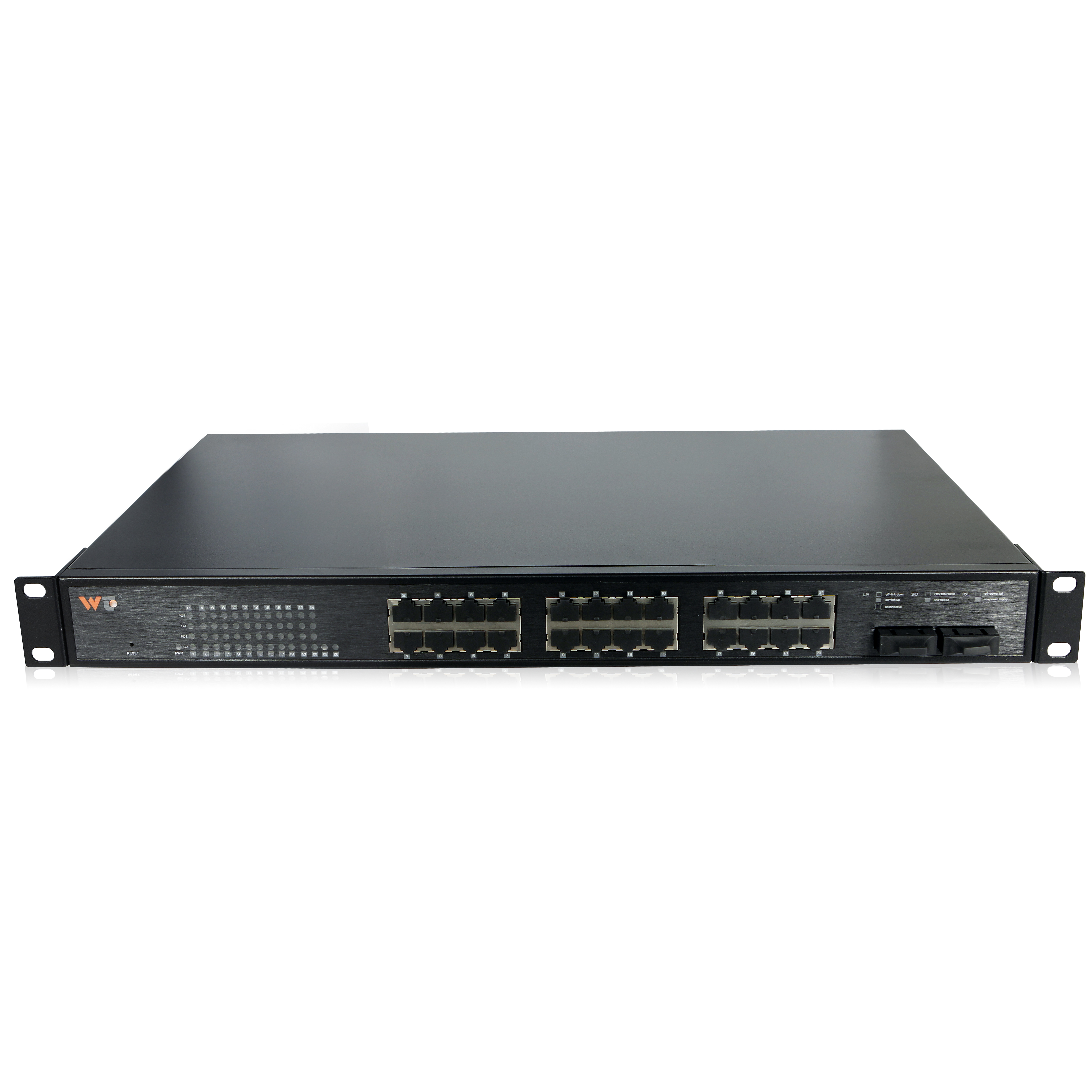

24 ports Ethernet Switches (Gigabyte)
model: WT-CS1026-2GF24GT-P
2 ×1000M fiber ports + 24×10/100/1000M Ethernet port




Features
nProvide twelve Gigabit electric interface,four Gigabit optical interface
nFanless design,IP30 protection grade, Impact resistant metal shell
nApplicable voltage range 100~240V AC
nMeet the requirements of electromagnetic compatibility EMC industrial grade 4(anti-lighting, static electricity, surge, group pulse)
nAll port anti-lighting 6KV
nApplicable to -20℃~60℃ working environment

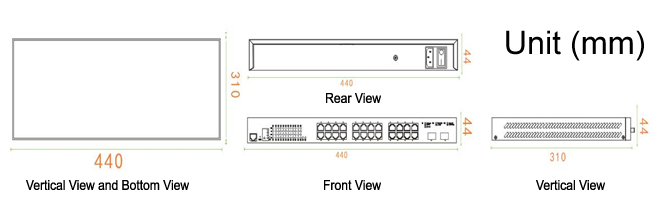

Dimension
Unit (mm)
Order information
Optional Models |
Interface Type |
|||
10/100BaseT |
10/100/1000BaseT |
100BaseFX |
1000BaseFX |
|
Multimode/Single-Mode |
||||
CS1026-2GF24GT -AC220-P |
- |
24 |
- |
2(SFP slot)
|
CS1026-2GF24GT -AC220-SC |
- |
24 |
- |
2(SC)
|
CS1026-2GF24GT -AC220-ST |
- |
24 |
- |
2(ST)
|
CS1026-2GF24GT -AC220-FC |
- |
24 |
- |
2(FC)
|
Packaging List
• Ethernet Switch
• AC Power Cable
• Installation Accessories
• User’s Manual
• Warranty Card
• Qualification Certificate
Products Properties
Interface |
Optical interface: 1000Mbps (Interface type: SC/ST/FC and SFP slots) Ethernet interface: 10/100/1000Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X. transmission distance common D indicator:PWR,Link/ACT, SPD |
Switch Properties |
Backboard bandwidth:52Gbps MAC address table:8K Message cache size:4MbitsOversized frame rate:9.6KB Packet forwarding rat:38.7Mpps |
Power Supply |
Input voltage: 100~240V AC Input current: max 200mA |
Physical Properties |
Housing: metal, IP30 protection Dimension:440mm*310mm*44mm Weight :3100g Installation mode: desktop installation, wall-mounted installation |
Environmental Constraint |
Working temperature:-20 ~ 60°C (-4 ~ 140°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing) |
Standards and certification |
Electromagnetic interference(EMI):FCC Part 15/CISPR22(EN55022):Class A Electromagnetic sensibility(EMS): IEC61000-4-2 (ESD) 4 Class,IEC 61000-4-3 (RS) 3 Class,IEC 61000-4-4 (EFT) 4 Class, IEC 61000-4-5 (Surge) 4 Class,IEC 61000-4-6 (CS)3 Class Vibration resistance:IEC60068-2-6 Impact resistance:IEC60068-2-27 Free falling:IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF(mean time between failures) Time :500000h |
Quality Warranty |
3 years |

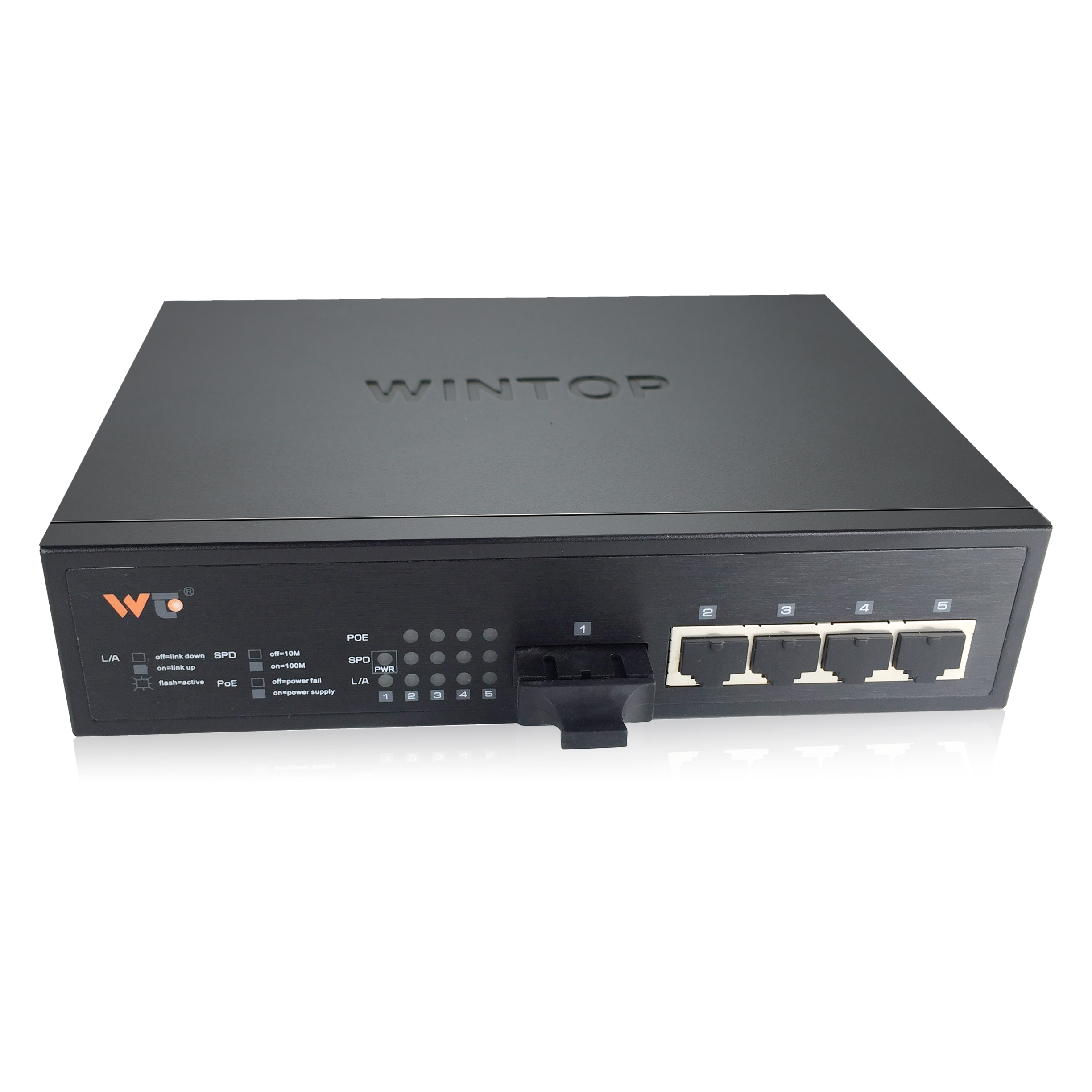

4 ports Managed Ethernet Switches
1 ×100M fiber ports + 4×10/100M Ethernet port

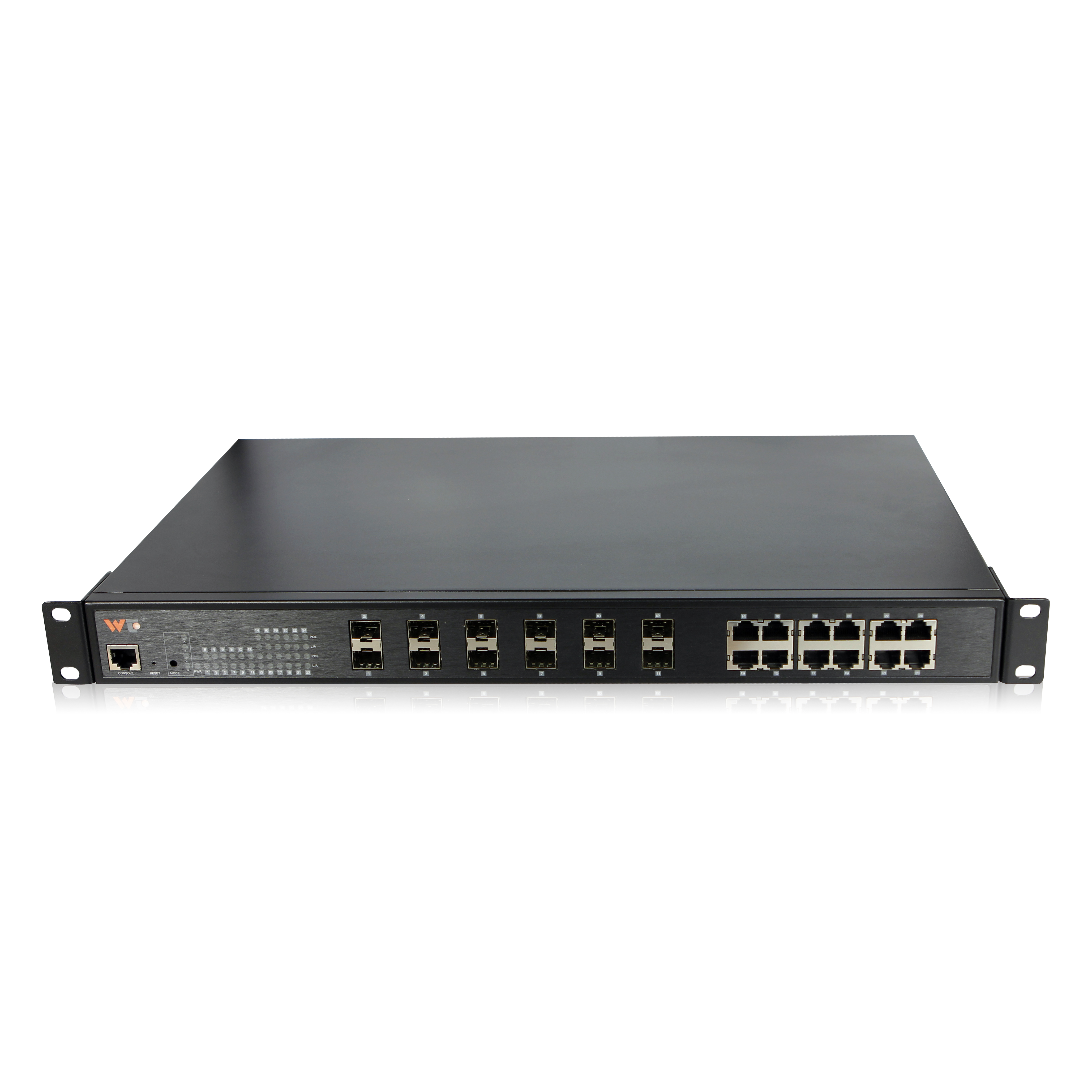

24 ports Managed Ethernet Switches (Gigabyte)
12 ×1000M fiber ports + 12×10/100/1000M Ethernet port

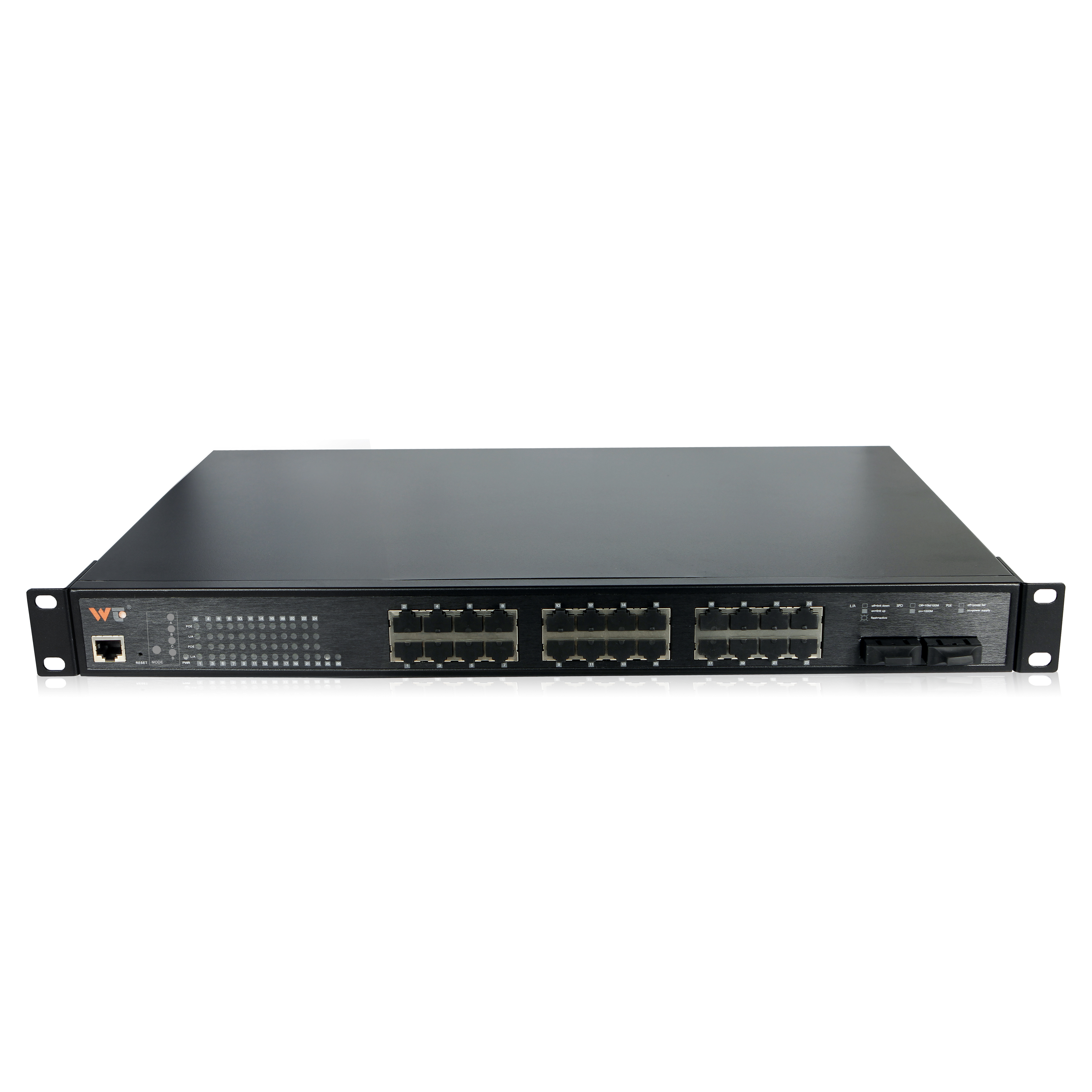

24 ports Managed Ethernet Switches (Gigabyte)
2 ×1000M fiber ports + 24×10/100/1000M Ethernet port

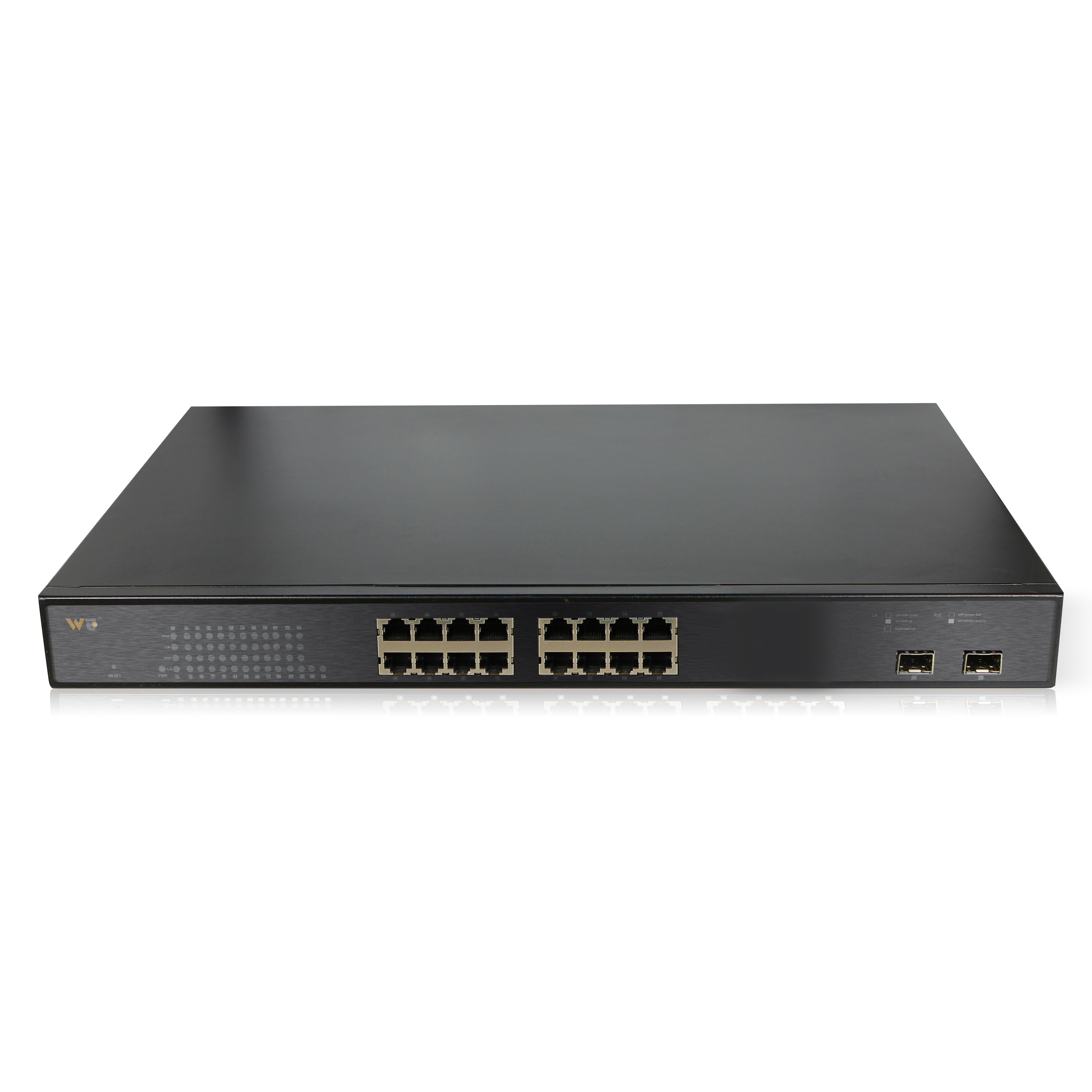

16 ports Managed Ethernet Switches (Gigabyte)
2 ×1000M fiber ports + 16×10/100/1000M Ethernet port

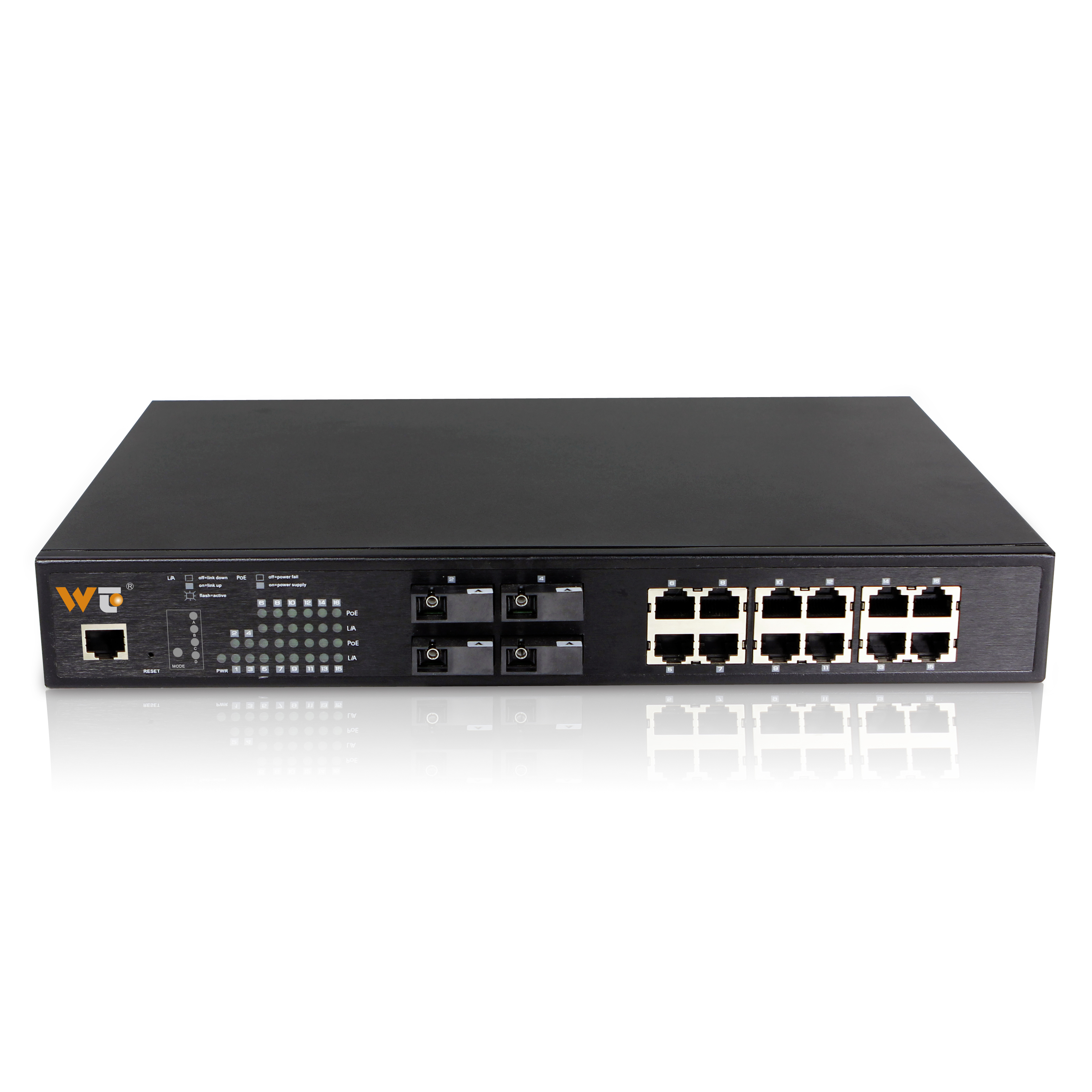

12 ports Managed Ethernet Switches (Gigabyte)
