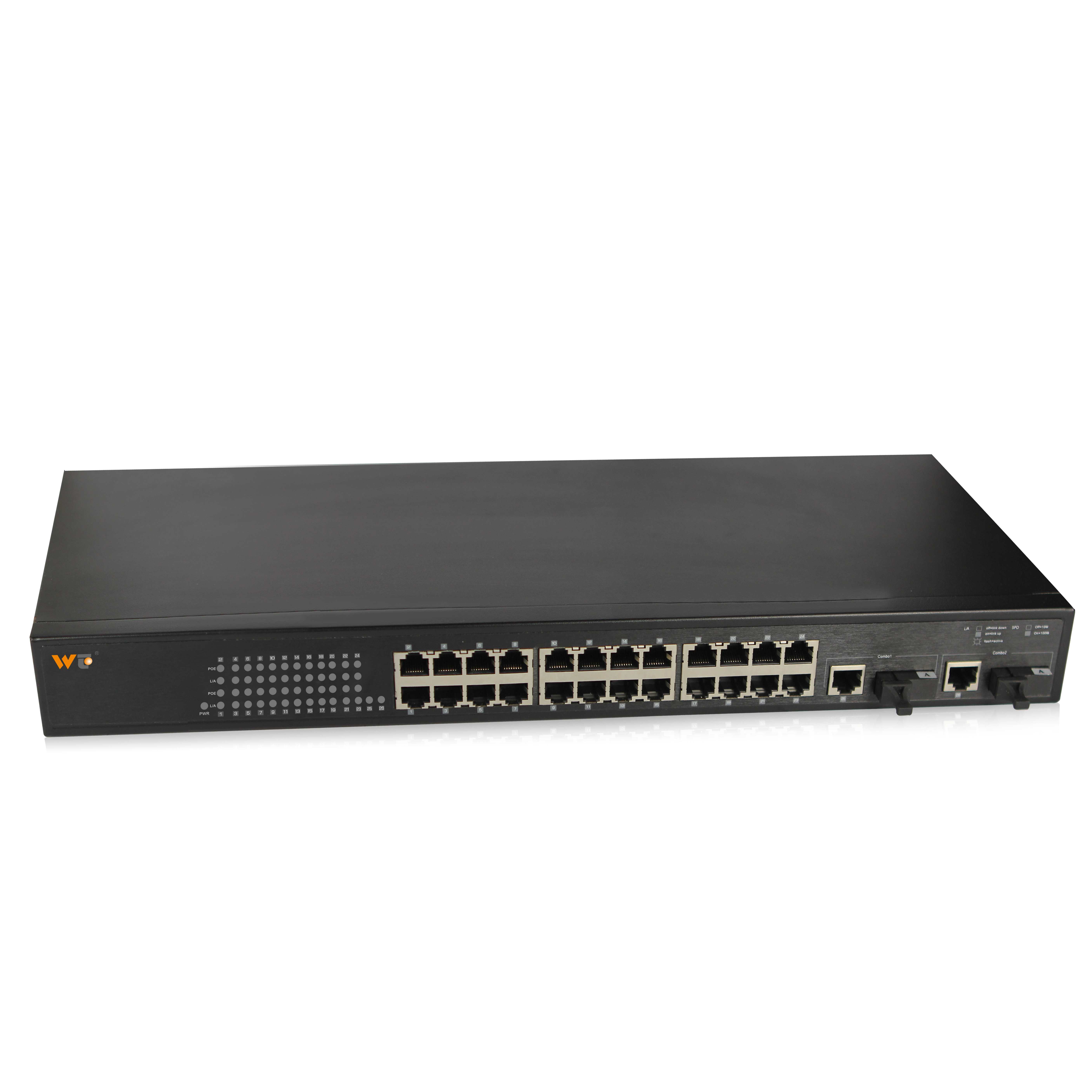

24 ports POE Ethernet Switches (Combo)

model： WT-CS1026-2GF2GT24T-AF

2 � Gigabit Combo ports + 24 � 10/100M Ethernet port; 300W

Description Technical parameters Applications Download Related Products

Features

n24*100M ethernet ports, 2*1000M optical electrical combo ports

n10/100Mbps electrical port supports self-adaptation,MDI/MDI-X

nApplicable voltage range 100~240V AC

nMeet the EMC Industrial Class 4Electromagnetic Compatibility Requirement (lightningproof, antistatic, anti-surge,anti pulsepacket)

nSupport IEEE 802.3af/802.3at POE standard

nWorking temperature: -20?~60?

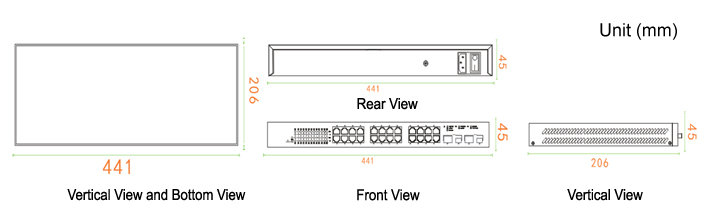

Dimension

Unit (mm)

Order information

Packaging List

• Ethernet Switch

• AC Power Cable

• Installation Accessories

• User’s Manual

• Warranty Card

• Qualification Certificate

Label： POE Switches

Product Properties

Interface	Optical interface :1000Mbps (interface type ?SFP slot) Gigabit Network interface: 10/100/1000Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X. Fast Network Interface:10/100/1000Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X, transmission distance 0-100M LED indicator: PWR,SYS,POE,Link/ACT
Switch Properties	Backboard bandwidth:8.8Gbps MAC address table: 4K Message cache size:2.75Mbits Packet forwarding rate: 6.55 Mpps
Power Supply	Input voltage: 100~240V AC Input current: max 300mA
Physical Properties	Housing: metal, IP30 protection Dimension: 441x206x45mm Weight: 2400g Installation mode: rack mount
Environmental Constraint	Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing)
Standards and certification	Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) Class 3, IEC 61000-4-3 (RS) Class 3, IEC 61000-4-4 (EFT) Class 2, IEC 61000-4-5 (Surge) Class 3, IEC 61000-4-6 (CS) Class 3 Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32 Note: Please visit Wintop official website to check the latest certifications. MTBF (mean time between failures) Time: 500000h
Quality Warranty	3 years
