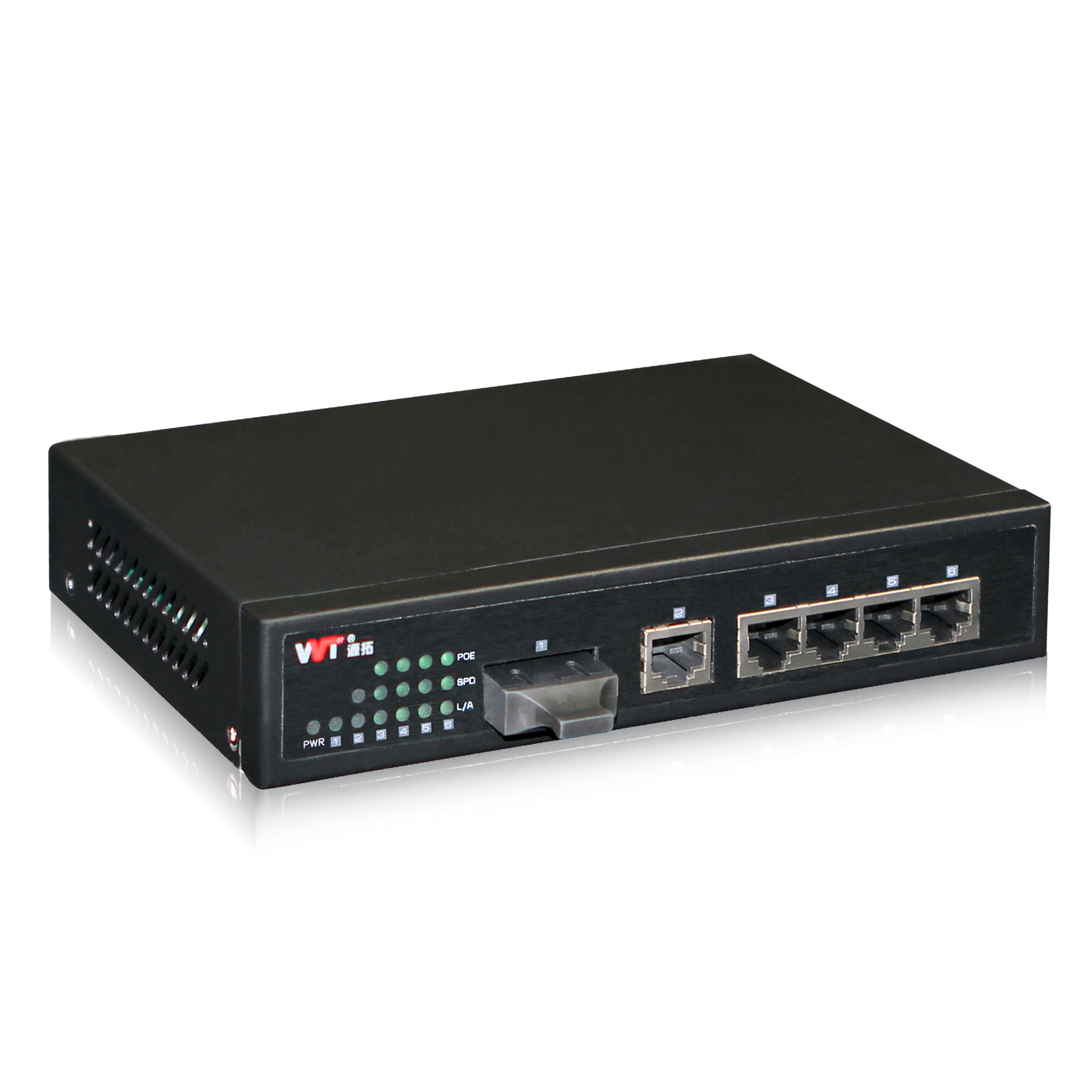

4 ports Ethernet POE Switches (Gigabyte)

model： WT-DS106-1GF5GT

1 �1000M fiber ports + 5�10/100/1000M Ethernet port?65W

Description Technical parameters Applications Download Related Products

Features

nProvide five 1000Mbps electric interfaces, one 1000Mbps optical interface

n3-6 electric interfaces support POE equipment ,whichconform to the standard of 802.3at IEEE

nApplicable voltage range 100~240V AC

nMeet the EMC Industrial Class 4 Electromagnetic Compatibility Requirement (lightningproof, antistatic, anti-surge,anti pulse packet)

n6KV all ports lightningproof

nApplicable to -20??60? working environment

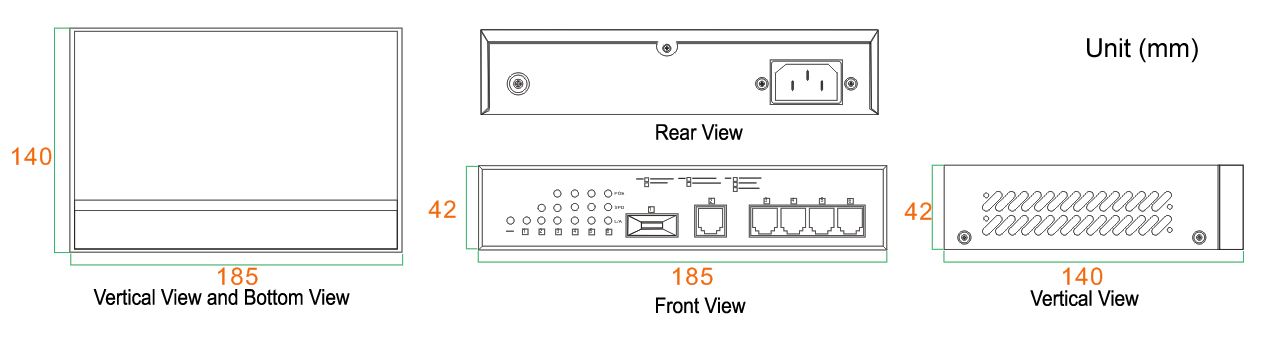

Dimension

Unit (mm)

Order information

Packaging List

• Ethernet Switch

• AC Power Cable

• Installation Accessories

• User’s Manual

• Warranty Card

• Qualification Certificate

Label： POE Switches

Products Properties

Interface	Optical interface: 1000Mbps (Interface type:SC/FC/ST/SFP slot) Network interface: 10/100/1000Mbps self-adaptation, Full/Half duplex mode, support MDI/MDI-X. Transmission distance at common mode 0-100m; LED indicator: PWR,Link/ACT, SPD,POE
Switch Properties	Backboard bandwidth:12Gbps MAC address table: 8K Message cache size: 1Mbit Maximum frame rate: 10KB Packet forwarding rate:9.3 Mpps
Power Supply	Input voltage: 47~58V DC Input current: max 2550mA
Physical Properties	Housing: metal, IP30 protection Dimension: 185x123x35mm Weight: 700g Installation mode: desktop installation, wall-mounted installation
Environmental Constraint	Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing)
Standards and certification	Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) Class 4, IEC 61000-4-3 (RS) Class 4, IEC 61000-4-4 (EFT) Class 4, IEC 61000-4-5 (Surge) Class 4, IEC 61000-4-6 (CS) Class 4 Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF (mean time between failures) Time: 500000h
Quality Warranty	3 years
