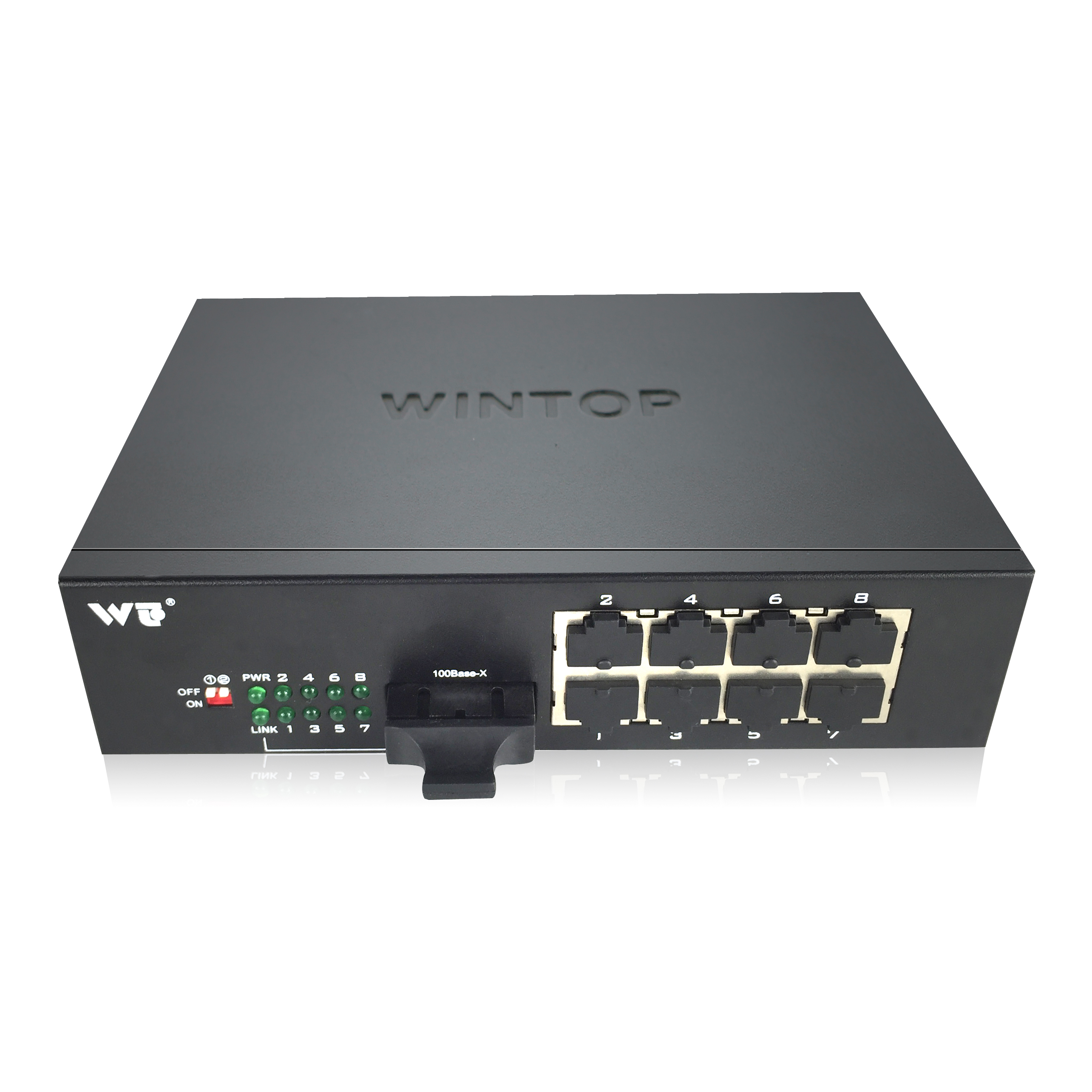

8 ports Ethernet Switches
model： WT-DS209-1F8T
1 ×100M fiber ports + 8×10/100M Ethernet port
Features
n1x100BaseFX + 8x10/100M Ethernet ports
nEthernet ports supports auto MDI/MDIX
nApplicable voltage range 100~240V AC
nDIP switch one-key VLAN configuration, video channel mode configuration, long distance transmission mode configuration
nHigh security against power surge
nWorking temperature: -20℃～60℃

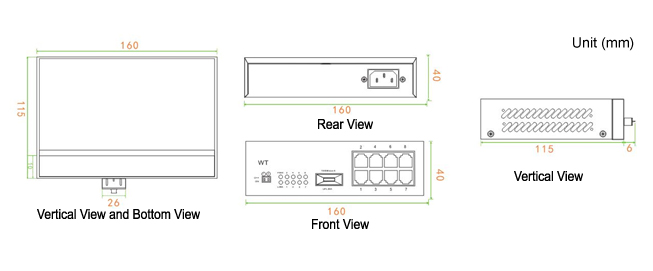

Dimension
Unit (mm)
Order information
|
Optional Models |
Interface Type |
|||||
|
10/100BaseT |
10/100/10080BaseT |
100BaseFX |
1000BaseFX |
|||
|
Multimode Interface |
Single-Mode Interface |
Multimode Interface |
Single-Mode Interface |
|||
|
DS209-1F8T-AC220-M-S
|
8 |
– |
1 SC |
– |
– |
– |
|
DS209-1F8T-AC220-S-S
|
8 |
– |
– |
1 SC |
– |
– |
|
DS209-1F8T-AC220-M-T |
8 |
– |
1 ST |
– |
– |
– |
|
DS209-1F8T-AC220-S-T
|
8 |
– |
– |
1 ST |
– |
– |
|
DS209-1F8T-AC220-M-F
|
8 |
– |
1 FC |
– |
– |
– |
|
DS209-1F8T-AC220-S-F
|
8 |
– |
– |
1 FC |
– |
– |
|
DS209-1F8T-AC220-P |
8 |
– |
1 (SFP slot) |
– |
– |
|
Packaging List
• Ethernet Switch
• AC Power Cable
• Installation Accessories
• User’s Manual
• Warranty Card
• Qualification Certificate
Products Properties
|
Interface |
Optical interface: 100Mbps (Interface type: SC, ST, FC and SFP Slot are available) Network interface: 10/100Mbps self-adaptation, Full/Half duplex mode,support MDI/MDI-X. normal transmission distance 0-100m; long distance mode 0-350m. LED indicator: PWR, Link, 10/100Base-T |
|
Switch Properties |
Backboard bandwidth: 1.8Gbps MAC address table: 2K Message cache size: 64KB |
|
Power Supply |
Input voltage: 100~240V AC Input current: max 30mA |
|
Physical Properties |
Housing: metal, IP30 protection Dimension: 160x115x40mm Weight: 600g Installation mode: desktop installation, wall-mounted installation |
|
Environmental Constraint |
Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing) |
|
Standards and certification |
Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) Class 3, IEC 61000-4-3 (RS) Class 3, IEC 61000-4-4 (EFT) Class 2, IEC 61000-4-5 (Surge) Class 3, IEC 61000-4-6 (CS) Class 3 Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32 Note: Please visit Wintop official website to check the latest certifications. MTBF (mean time between failures) Time: 500000h |
|
Quality Warranty |
3 years |
